Accept Customization Ball Screw Linear XY Table

Short Description:

【Technical Feature】

FSL80 linear guide, fully sealed structure, body width 80mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small compression,hard object collision without deformation, oleic acid resistance, high temperature resistance, long service life.

【Range of Application】

It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dust free workshops or special fields such as electronics and medical equipment, such as film, Discount, IC printing, CCD online testing, solder automation equipment.


  • Series: FSL80
  • Stroke Range: 100mm~1500mm
  • Position Accuracy: 0.05mm
  • Max Speed: 300mm/s
  • Max Load: 60kg
  • Ball Screw: G1610
  • Product Detail

    Company Profile

    Product Tags

    FSL80
    FSL80  Series
    电机规格
    Motor No
    60102 8698
    电机保持转矩[N·m]
    Motor holding torque
    3 5
    滚珠丝杆直径[mm]
    Ball Screw Diameter
    φ16 φ16
    滚珠丝杆导程[mm]
    Ball Screw Stroke
    10 10
    水平最大负载[kg]
    Max Honrizontal Loadings
    60 60
    垂直最大负载[kg]
    Max Vertical Loading
    20 30
    空载速度[mm/s]
    Without Loading Speed
    150-200 150-300
    水平满载速度[mm/s]
    Max Honrizontal Full Speed
    140-190 150-200
    垂直满载速度[mm/s]
    Max Vertical Full Speed
    55-60 120-150
    额定加速度[mm/s2]
    Rated Acceleration
    500 1000
    定位精度[mm]
    Position Accuracy
    0.05
    最大推力[N]
    Maximum thrust
    674 1123
    动态容许力矩[N·m]
    Dynamic Permissible Torque
    MA=45              MB=35              MC=35
    行走寿命[km]
    Movement Life
    15000-20000
    力矩方向
    Torque Direction
    QQ截图20180819115502
    1
    QQ截图20180727174535

    Nema 24 stepper motor

    to provide good power

    and easy to control

    QQ截图20180727175252

    Alu.made panel to support

    loading up to 60kgs

    2
    3
    QQ截图20180727175304

    Alu.body + Steel belt

    offer excellent rigidity

    QQ截图20180727175315

    M4 sideway screws to

    install limit switch

    6
    QQ截图20180605153629
    QQ截图20180605154046
    8测试371x320

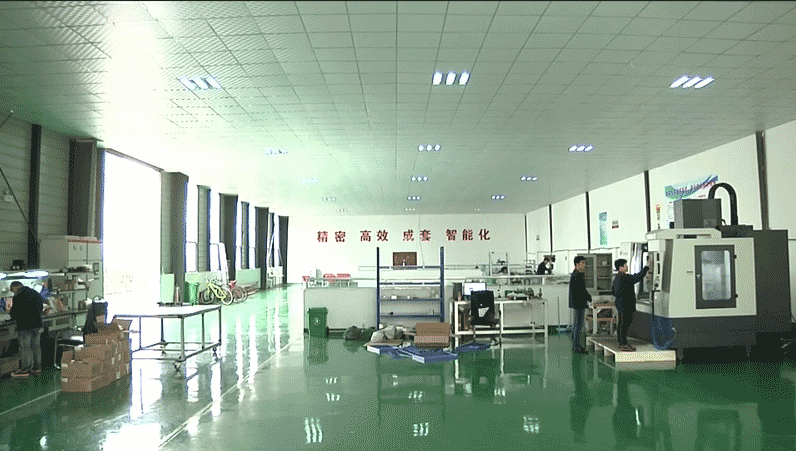

    组装中心371x320

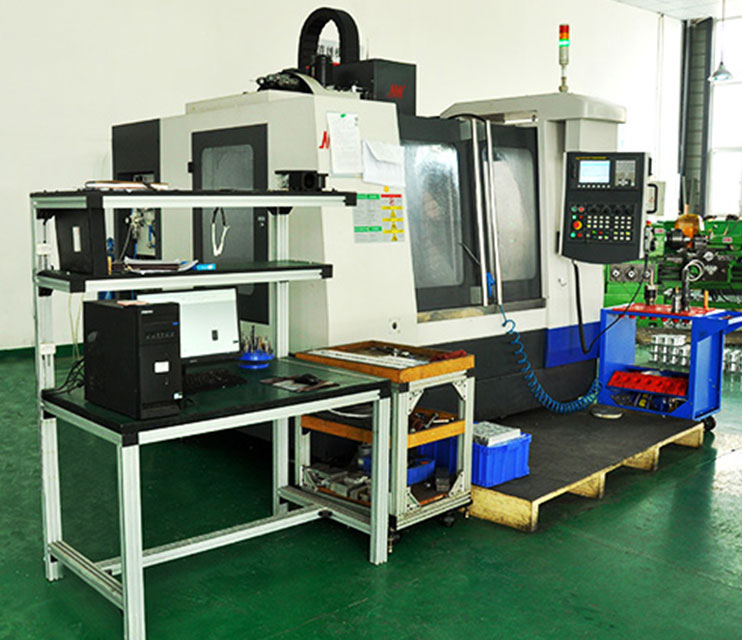

    6CNC加工中心371x320
