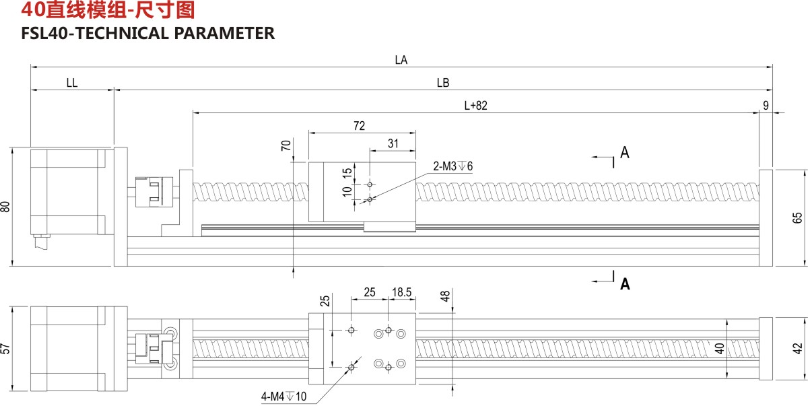

| FSL40 Series | |||
| 电机规格 Motor No |
5756 | 5756 | 5756 |
| 电机保持转矩[N·m] Motor holding torque |
1 | 1 | 1 |
| 滚珠丝杆直径[mm] Ball Screw Diameter |
φ12 | φ16 | φ16 |
| 滚珠丝杆导程[mm] Ball Screw Stroke |
4 | 5 | 10 |
| 水平最大负载[kg] Max Honrizontal Loadings |
25 | 25 | 20 |
| 垂直最大负载[kg] Max Vertical Loading |
15 | 15 | 10 |
| 空载速度[mm/s] Without Loading Speed |
100 | 160 | 250 |
| 水平满载速度[mm/s] Max Honrizontal Full Speed |
80 | 150 | 230 |
| 垂直满载速度[mm/s] Max Vertical Full Speed |
40 | 85 | 55 |
| 额定加速度[mm/s2] Rated Acceleration |
500 | ||
| 定位精度[mm] Position Accuracy |
0.05 | ||
| 最大推力[N] Maximum thrust |
565 | 452 | 225 |
| 动态容许力矩[N·m] Dynamic Permissible Torque |
MA=2.5 MB=1.3 MC=1.3 | ||
| 行走寿命[km] Movement Life |
8000-10000 | ||
| 力矩方向 Torque Direction |
 |
||
Special made motor with
max speed up to 1200rpm
Extra support unit
to enhance stability
Oxided Alu. to avoid rusting
Attached chains
makes better appearance
Ball screw position
Accurancy ±0.05mm
M4 screws on sideways and
baseboard for easy installation
Customer service officer
Our customer service personnel are experienced product specialists who can answer your questions 7 days a week from 9 am to 5 pm.
OEM / ODM
Our professional staffs allow us to have the capability to design and manufacture a wide range of new items according to the buyer's requirements.
Our ability to provide buyers labels and design services for our clients make us an attractive choice.
Firm team
FUYU is committed to delivery quality products. We guarantee our products to be free from manufacture defects.
We offer one-month of return & exchange service, one-year of parts replacement and lifetime tech support.
At present, it has been certified by the relevant national departments:"National High-tech Enterprise" and "Dual-soft Enterprise". The intellectual property rights involved 2 invention patents, 32 utility models, 13 appearance patents and more than 20 software copyrights; Has obtained international related certification, IP66, CE, ROHS, FCC certification.
DETAILS CREATE QUALITY AND TECHNOLOGY LEADS FUTURE
You can design by yourself or tell us your technical requirements and we will give you're a technical solution. Then we will complete the production, testing and delivery according to the technical plan within the time agreed by both parties.
The products purchased by users from our company are all covered by the warranty service. During this period, our company will provide you with free telephone consultation services, video teaching, free replacement of parts and components, and remote troubleshooting.
CHENGDU FUYU TECHNOLOGY CO.LTD
Motorized linear axis could be assembled to positioning systems/motion stages, which fulfill various tech requirements for engraving , welding, drilling, milling, dispensing, packaging, 3d printing and other cnc automatic Industrial machines. At present, our linear guide has obtained international related certifications: IP66, CE, ROHS, FCC and the company is certified by the relevant national departments: ISO9001-2008, National High-tech Enterprise, Dual-soft Enterprise. The intellectual property rights involved 2 invention patents, 32 utility models, 13 appearance patents and more than 20 software copyrights.
FUYU has a development perspective of the world, all products are in strict accordance with the production process and standards, the 70 patents cover various aspects of the new module and controller technology.With advanced technology and sincere cooperation attitude, we will, as always, go hand in hand with our customers with high quality products, reasonable prices and professional services to create brilliant future.
-
