High Precision Ball Screw Linear Motion Guide

Short Description:

【Technical Feature】

FSL40 linear guide is semi-sealer structure, body width 40mm, high stability,compact structure,versatility feature, suitable for normal working environment, it is convenient to use single axis or multi-axis to assemble easy functional usage robotic arms for kinds of industries.

【Range of Application】

Precise positioning, dispensing, spray painting, visual inspection, moving, grabbing, cutting and welding, automatic assembly, automatic locking screws, palletizing, etc. Such as: PCB board detection, optical disc stacking device, parts pick and place.


  • Series: FSL40
  • Stroke Range: 50mm~1000mm
  • Position Accuracy: 0.05mm
  • Max Speed: 250mm/s
  • Max Load: 25kg
  • Ball Screw: G1204/G1605/G1610
  • Product Detail

    Company Profile

    Product Tags

    FSL40
    FSL40  Series

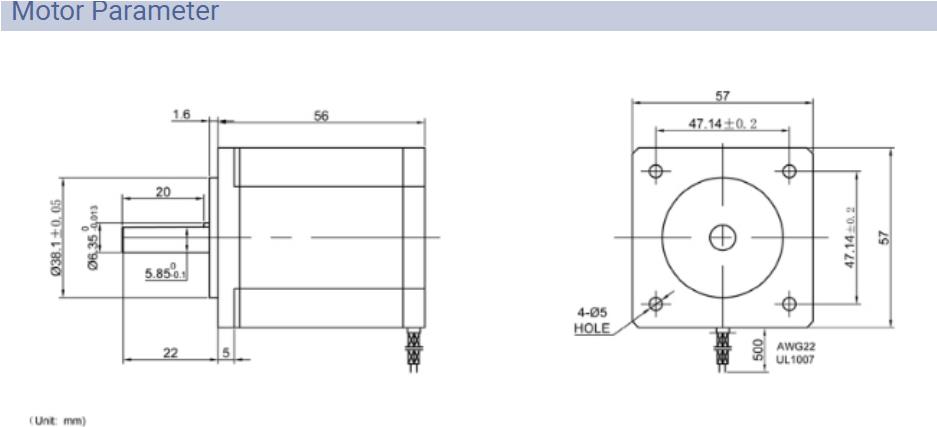

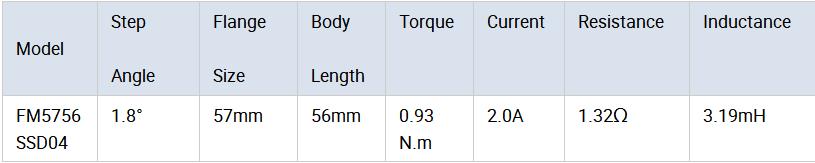

    Motor No 5756 5756 5756
    [N·m]
    Motor holding torque
    1 1 1
    [mm]
    Ball Screw Diameter
    φ12 φ16 φ16
    [mm]
    Ball Screw Stroke
    4 5 10
    [kg]
    Max Honrizontal Loadings
    25 25 20
    [kg]
    Max Vertical Loading
    15 15 10
    [mm/s]
    Without Loading Speed
    100 160 250
    [mm/s]
    Max Honrizontal Full Speed
    80 150 230
    [mm/s]
    Max Vertical Full Speed
    40 85 55
    [mm/s2]
    Rated Acceleration
    500
    [mm]
    Position Accuracy
    0.05
    [N]
    Maximum thrust
    565 452 225
    [N·m]
    Dynamic Permissible Torque
    MA=2.5              MB=1.3              MC=1.3
    [km]
    Movement Life
    8000-10000
    Torque Direction  QQ截图20180727170546
    360截图20180819151737392
    360截图20180819152215952
    QQ截图20180727172725
    QQ截图20180727174535

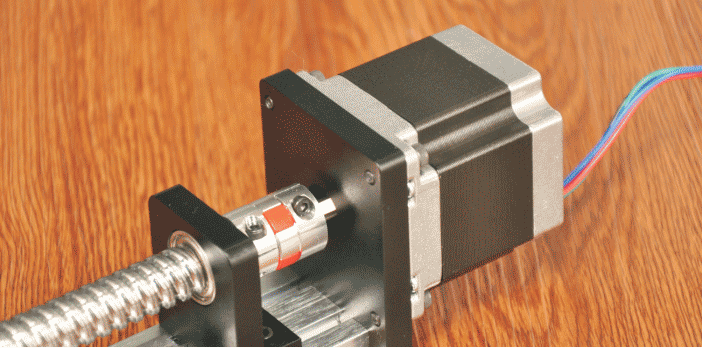

    Special made motor with

    max speed up to 1200rpm

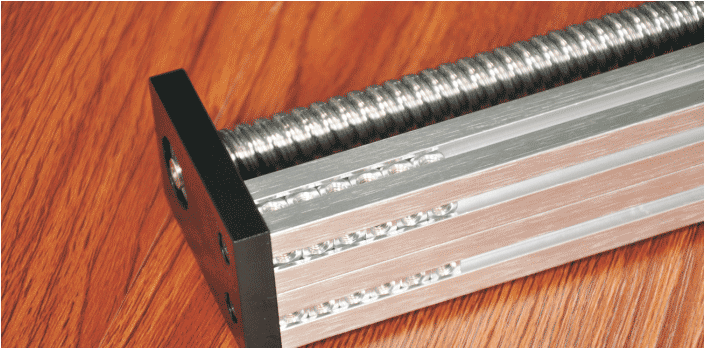

    Extra support unit

    to enhance stability

    QQ截图20180727175252

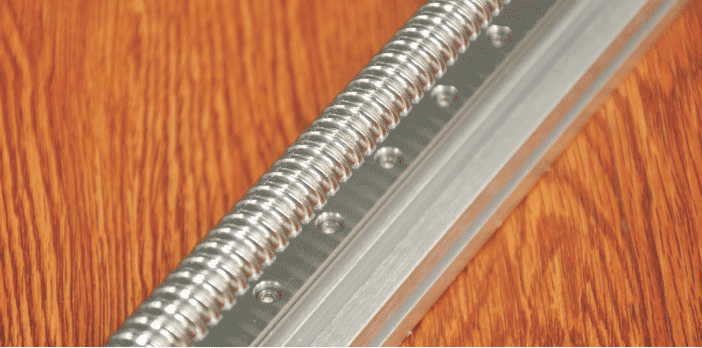

    Oxided Alu. to avoid rusting

    QQ截图20180727172743
    QQ截图20180727172802
    QQ截图20180727175304

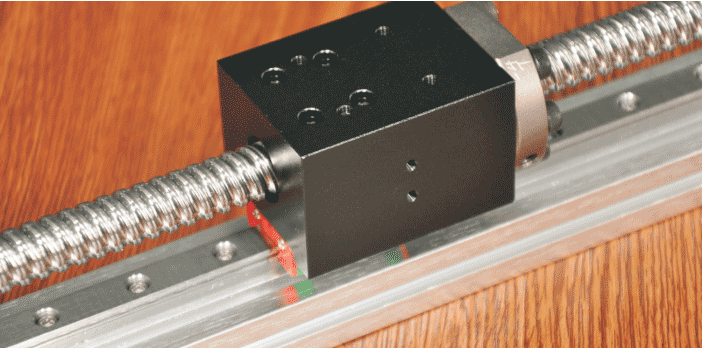

    Ball screw position

    Accurancy ±0.05mm

    QQ截图20180727175315

    M4 screws on sideways and

    baseboard for easy installation

    QQ截图20180727172823
    FLS40 Stock
    5
    6
    7
    8
    10
    12
    13
