Long Stroke Belt Driven Aluminium Linear Guide Rail

Short Description:

【Main Feature】

FBL60 linear module, fully enclosed structure, body width 60mm, good rigidity, low noise, lightweight, high rigidity structural design, long life, short setting time, high positioning accuracy.

【Application Area】

Generally used for precise positioning detection, laser plus (laser cutting/aser marking/laser engraving/laser drilling, etc.) precision assembly, precision machine tools, semiconductor production equipment, positioning detection, electronic production equipment, and 3D printing equipment.


  • Series: FBL60
  • Stroke Range: 200mm~3000mm
  • Position Accuracy: 0.1mm
  • Max Speed: 900mm/s
  • Max Load: 30kg
  • Synchronous Wheel Circumference: 135mm
  • Product Detail

    Company Profile

    Product Tags

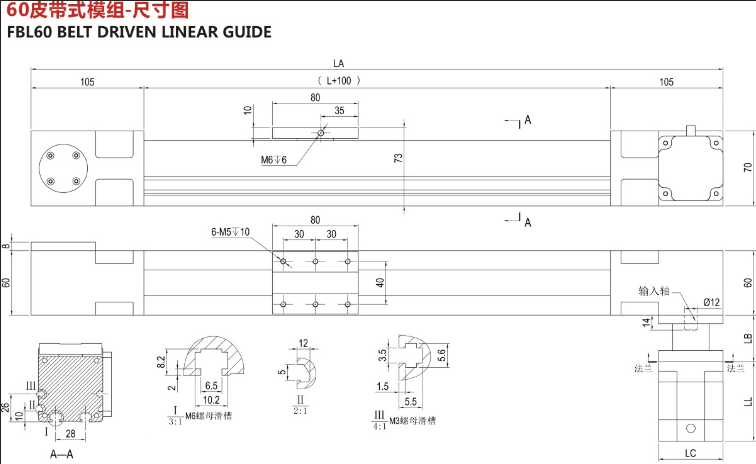

    FBL60
    FBLS60  Series
    电机规格
    Motor No
    60102
    电机保持转矩[N·m]
    Motor holding torque
    3
    同步轮周长[mm]
    Synchronous wheel circumference
    135
    水平最大负载[kg]
    Max Honrizontal Loadings
    30
    垂直最大负载[kg]
    Max Vertical Loading
    5
    空载速度[mm/s]
    Without Loading Speed
    900
    水平满载速度[mm/s]
    Max Honrizontal Full Speed
    130
    垂直满载速度[mm/s]
    Max Vertical Full Speed
    N/A
    推荐加速度[mm/s2]
    Rated Acceleration
    1000
    定位精度[mm]
    Position Accuracy
    0.1
    最大推力[N]
    Maximum thrust
    48
    动态容许力矩[N·m]
    Dynamic Permissible Torque
    MA=45
    MB=35
    MC=35
    行走寿命[km]
    Movement Life
    50 000
    力矩方向
    Torque Direction
    QQ截图20180819115502
    1
    QQ截图20180727174535

    3-phase Nema 24 Stepper Motor

    to provide good power

    QQ截图20180727175252

    Alu.made panel to support

    the load stably

    2
    3
    QQ截图20180727175304

    Betl driven module

    to give higher speed

    QQ截图20180727175315

    M4 screws by the sideway

    to install end stop

    5
    地球物理流体力学旋转试验台750x400
    QQ截图20180605154046
    9
    4
    OEMODM371x320
    Our Team
    5CNC加工中心371x320
    8测试371x320

    Customer service officer

    Our customer service personnel are experienced product specialists who can answer your questions 7 days a week from 9 am to 5 pm.

    OEM / ODM

    Our professional staffs allow us to have the capability to design and manufacture a wide range of new items according to the buyer's requirements.

    Our ability to provide buyers labels and design services for our clients make us an attractive choice.

    Firm team

    FUYU is committed to delivery quality products. We guarantee our products to be free from manufacture defects.

    We offer one-month of return & exchange service, one-year of parts replacement and lifetime tech support.
