Optional Screw Lead Embedded Design Motorized Linear Slide Guide

Short Description:

Modular

FUYU industrial robot through modular design, integrate ball screw and linear guide rail together, You can avoid the traditional workstations need to guide and drive components of the selection, installation check, bulky, accounting for space and othershortcomings. So our industrial robots can provide rapid selection, installation, compact, high rigidity and other characteristics,significantly reduce user’s space and time.

Equal Load in Four Direction

The returning system between the track and the slider, the ball and contactsurface with two-row Goethe tooth design, with a 45-degree contact angle characteristics, this design can make FUYU industrial robots withstand the ability of four-way load.

High Rigidity

The U-shaped section of the track is constructed by the finite element analysis software, and the balance between the volumeand the rigidity is obtained, which makes the track high rigidity, compact volume and light weight, etc, characteristcs.

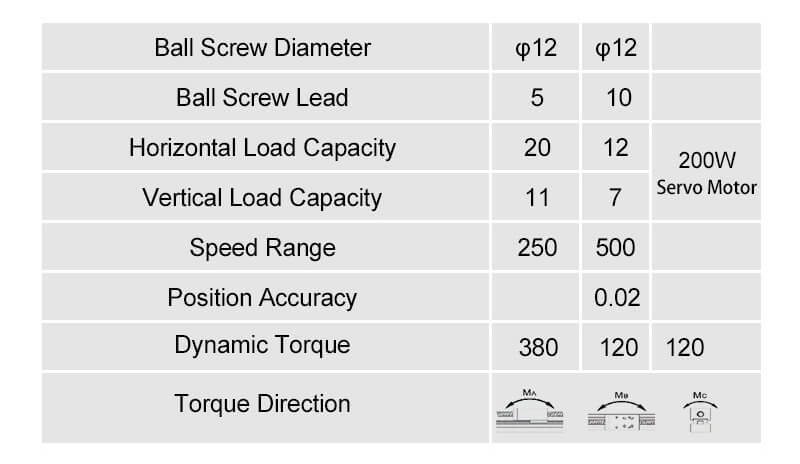

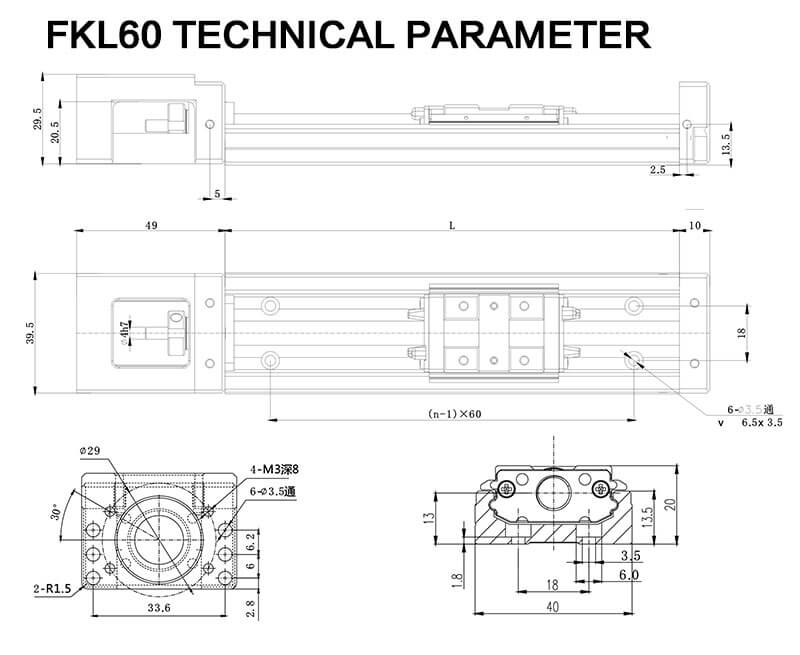

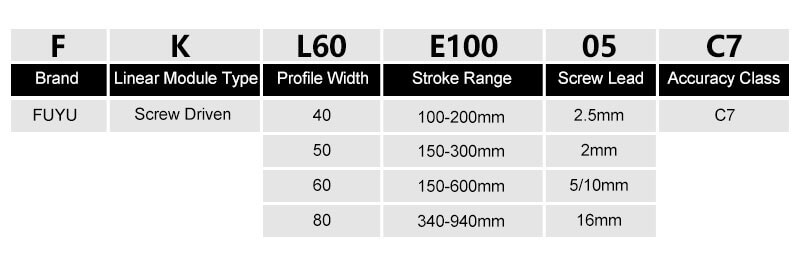

Series: FKL60

Stroke Range: 600mm

Profile Width: 60mm

Screw Lead: 5mm/10mm

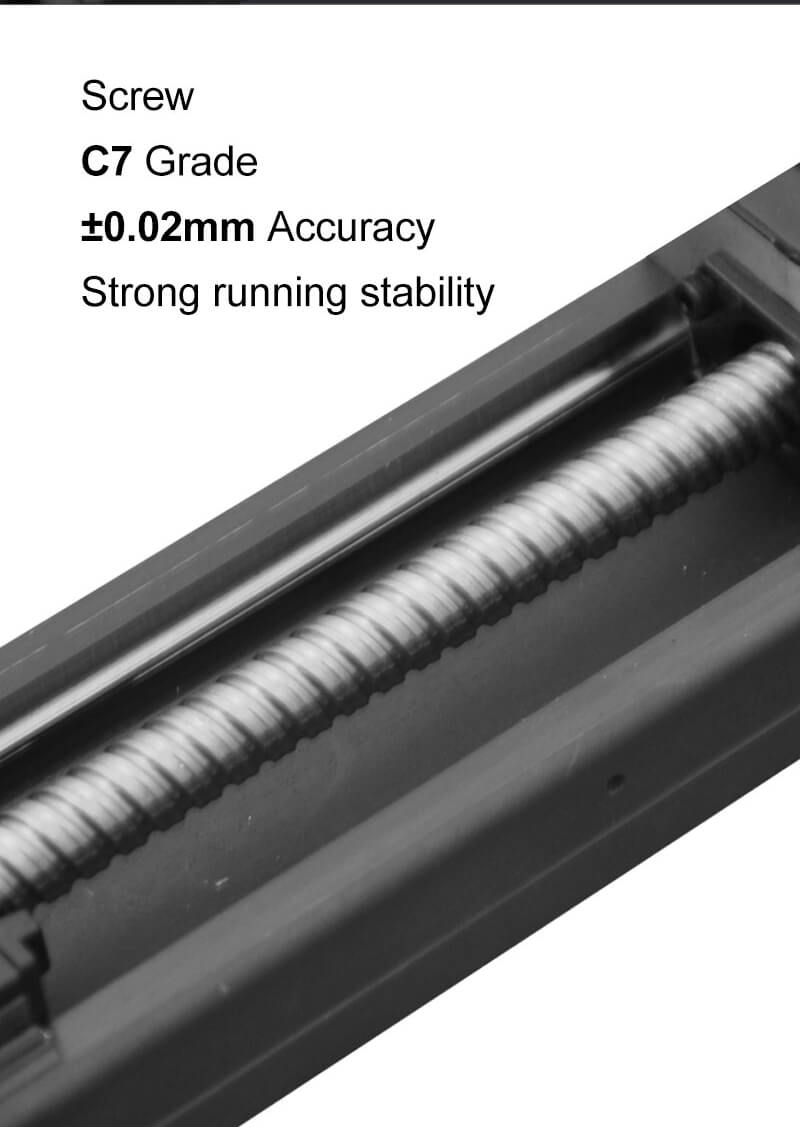

Position Accuracy: 0.02mm

Load Capacity: 20kg

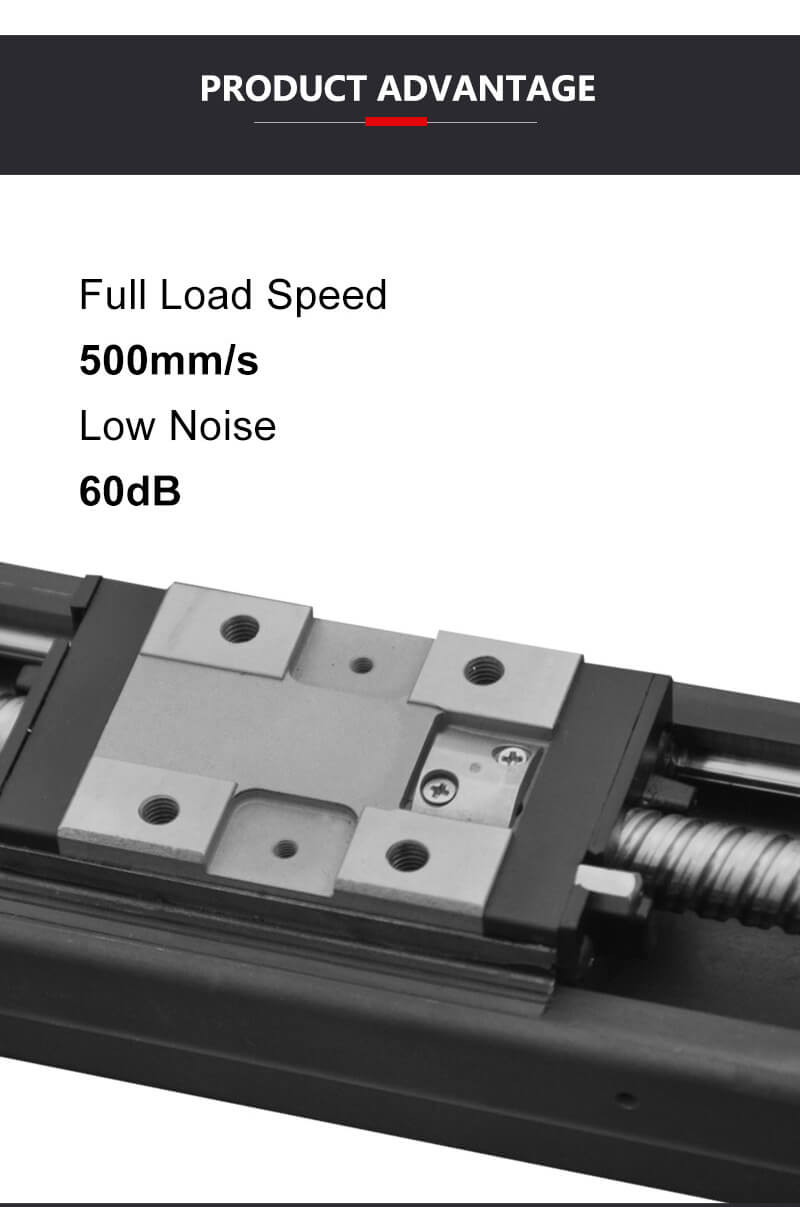

Speed Range: 500mm/s

Noise: 60dB

Send email to us

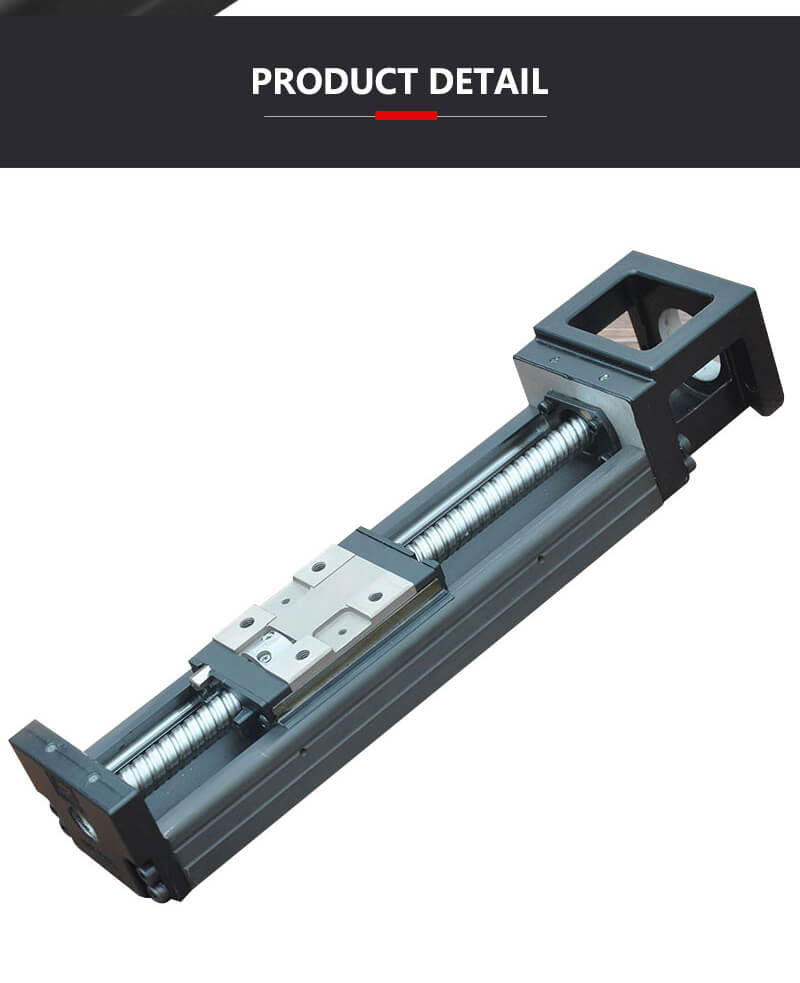

Product Detail
