Multi-axis Positioning System Motorized Rail Guide Heavy Load Linear Gantry Robot Ball Screw XYZ Stage

Short Description:

The customer is a technology company in the Internet of Things industry. This product is mainly used in food packaging.
The customer needs a module with stable operation and fast speed, which can quickly pack food. For client requirements, our technical team built the following structures.

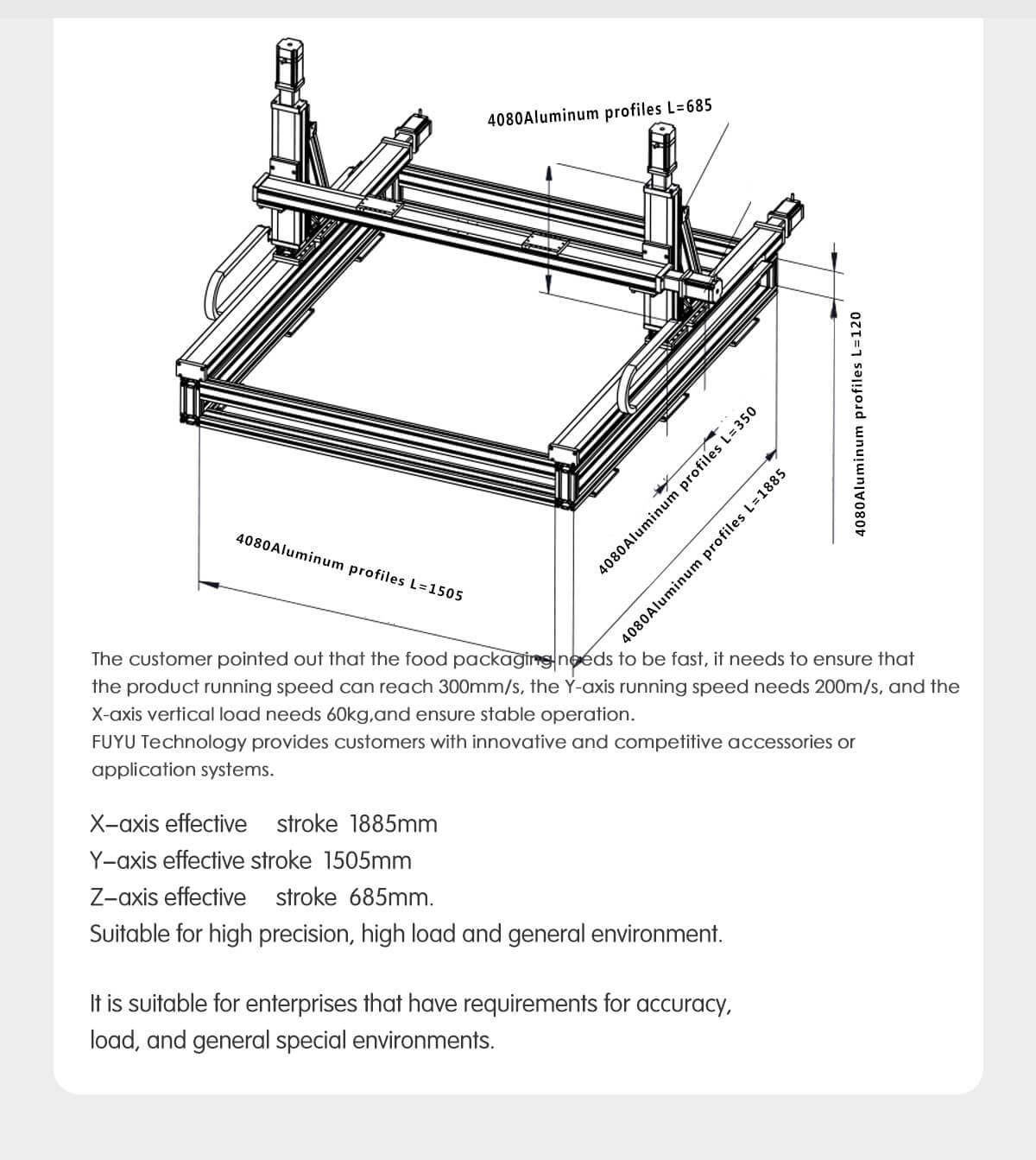

The customer pointed out that the food packaging needs to be fast, it needs to ensure that the product running speed can reach 300mm/s,
the Y-axis running speed needs 200m/s and the X-axis vertical load needs 60kg to ensure stable operation.
FUYU Technology provides customers with innovative and competitive accessories or application systems.

X-axis effective stroke 1885mm
Y-axis effective stroke 1505mm
Z-axis effective stroke 685mm.

Suitable for high precision, high load and general environment.

Series: FSL120IS-TL

Stroke Range: 1885mm

Position Accuracy: 0.02mm

Max Speed: 300mm/s

Max Load: 60kg

Guide Type: Ball Screw

Dustproof: Yes

Send email to us

Product Detail

Brand Overview

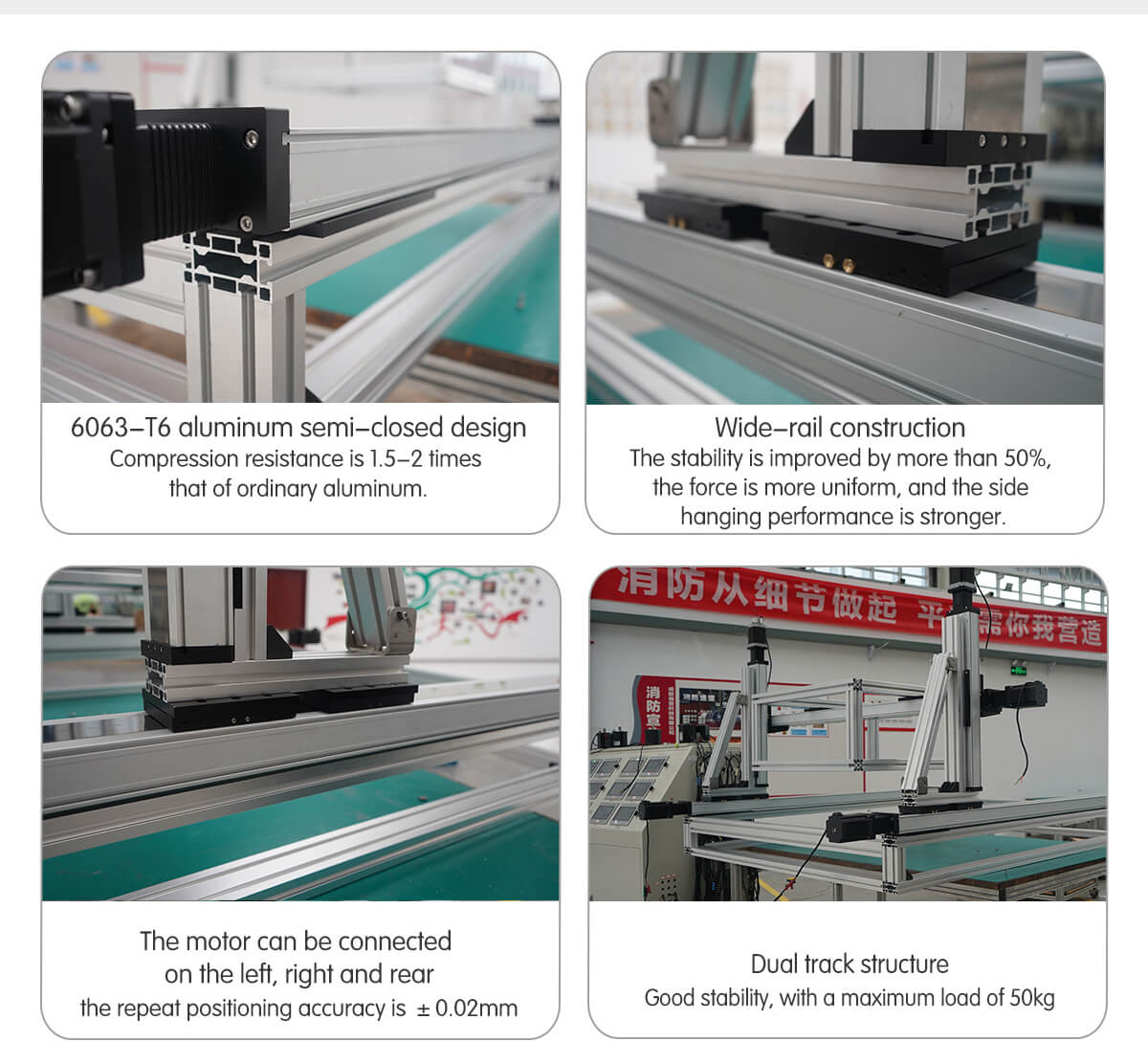

6063-T6 aluminum semi-closed design - Compression resistance is 1.5-2 times that of ordinary aluminum.
Wide-rail construction - The stability is improved by more than 50%, the force is more uniform, and the side hanging performance is stronger.
The motor can be connected on the left, right and rear the repeat positioning accuracy is ± 0.02mm.
Dual track structure - Good stability, with a maximum load of 50kg.
