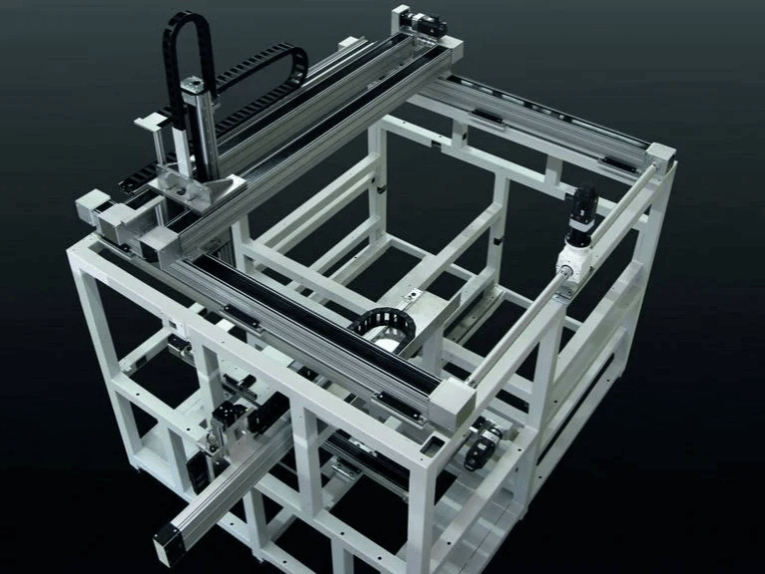

A gantry robot consists of a manipulator mounted onto an overhead system that allows movement across a horizontal plane. FUYU belt driven linear actuators are widely used in gantry system from electronic assembly and electronic manufacturing to vision systems and industrial automation. Gantry robots are also called Cartesian or linear robots. They are usually large systems built with linear guide rail that perform pick and place applications, but they can also be used in welding and other applications.

Gantry robot systems provide the advantage of large work areas and better positioning accuracy. Position accuracy is the ability of the robot to place a part correctly.The main advantages of FUYU linear motion actuators are customized length （max length up to 10000mm+）and high accuracy (positioning repeatability ±0.0mm) Gantry robots are easier to program, with respect to motion, because they work with an XYZ linear stage coordinate system. Another advantage is that they are less limited by floor space constraints.Compact design of FUYU toothed belt axis is benefit for saving space.

Linear Drive Modules
Proven high-speed,beit driven linear
modules are the core motion components
of the gantry system

Travel Limit Sensors
Fully adjustabie mechanical or
proximity sensors provide
over-travel rotection

Gear Reducers
Precision planetary gearheads(in-line and right-angle)
accurately transfer motion from the motors and
reducer reflected inertia

Servo Motor System
Brushiess servo motor system allows
closed loop reliability and high
dynamic performance

Home Position Sensor
Fully adjustable mechanical or proximity
sensors provide accurate and repeatable
homing

Structural Frame
Steel or aluminum support structures
and utilized to provide the strength
and rigidity needed for high-speed
applications
