Belt Driven Actuator Linear Motion Vertical XY Stage 2 Axis Motorized Table

Short Description:

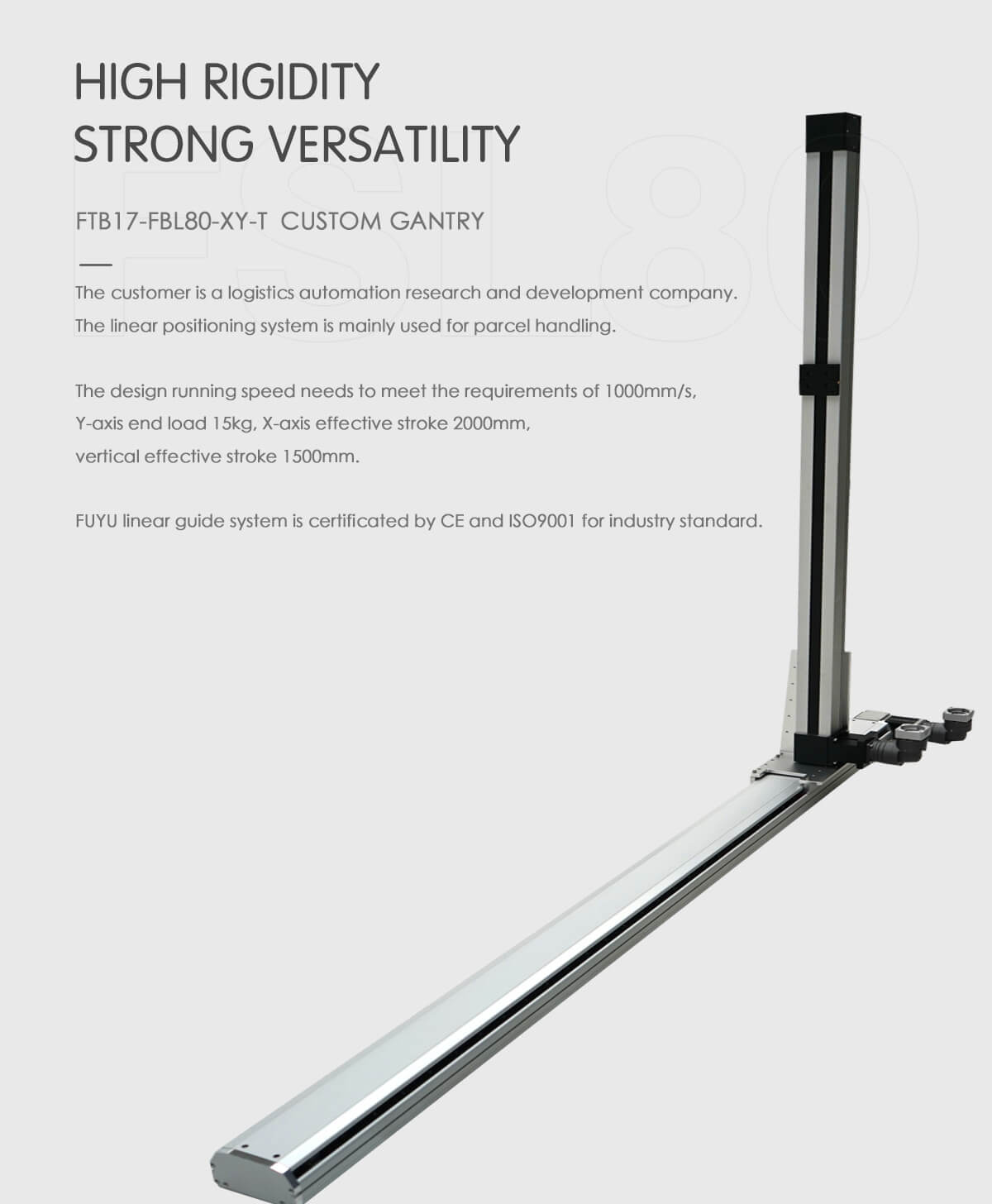

The customer is a logistics automation research and development company.
The linear positioning system is mainly used for parcel handling.

The design running speed needs to meet the requirements of 1000mm/s,
Y-axis end load 15kg, X-axis effective stroke 2000mm, vertical effective stroke 1500mm.

FUYU linear guide system is certificated by CE and ISO9001 for industry standard.

Series: FBL80FTB17IS-T

Stroke Range: 4000mm

Position Accuracy: 0.05mm

Max Speed: 3000mm/s

Max Load: 45kg

Send email to us

Product Detail

Brand Overview

Thousands of Industry Solutions, Advanced Engineer Development Concepts, Efficient Construction and Assembly Team for Linear Motion Project.
Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification.
Wide Variety of Ready-to-Ship Products / Quantity Discounts Starting at 10 pcs / Custom OEM Solutions / Programming Services

If need OEM or Custom Design, please tell us your project design parameters:
1. Which type of Linear Motion do you want, Belt Driven or Ball Screw?
2. How long stroke need: X=? Y=? Z=?
3. How much is the Load Capacity and Speed Range?
4. Do you need Motion Controller and other accessory together?

Previous: Double Framework Belt Driven Guide Rail Linear Motion Table XYZ Stage Gantry Robot

Next: Vertical Linear Motion Table Multi-axis Gantry Robot Motorized XYZ Stage

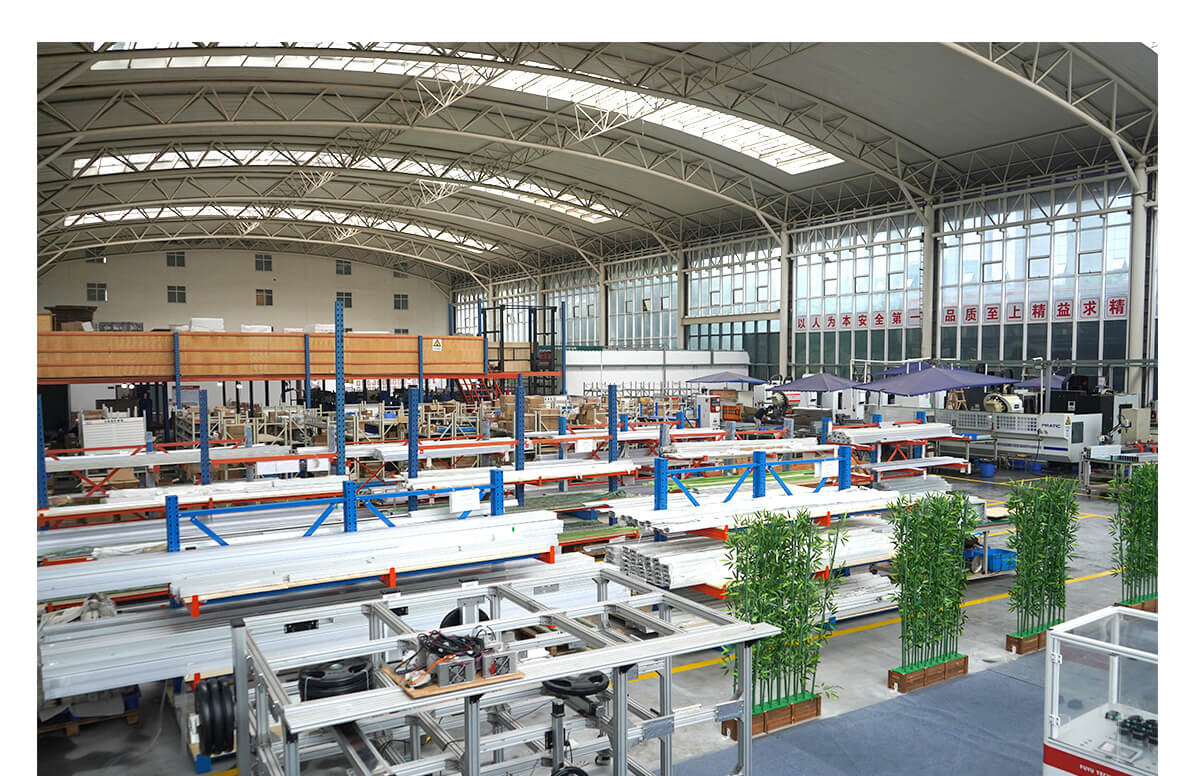

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
