Linear Motion Application Positioning System Motorized Rail Guide Industrial Table XYZ Stage Gantry Robot

Short Description:

Case Study

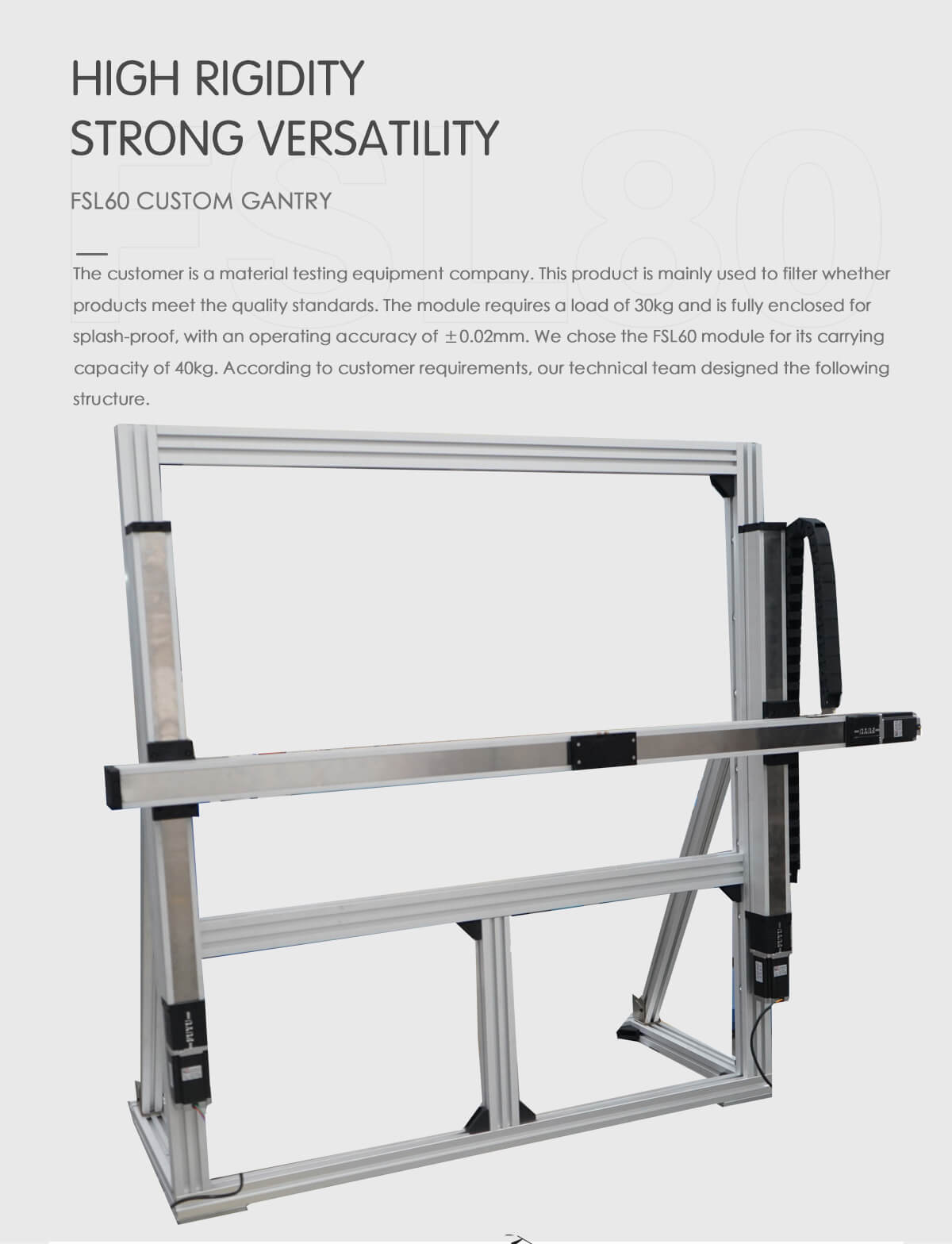

The customer is a material testing equipment company. This product is mainly used to filter whether products meet the quality standards.
The module requires a load of 30kg and is fully enclosed for splash-proof, with an operating accuracy of ±0.02mm.
We choose the FSL60 module for its carrying capacity of 40kg. According to customer requirements, our technical team designed the following structure.

Key Design

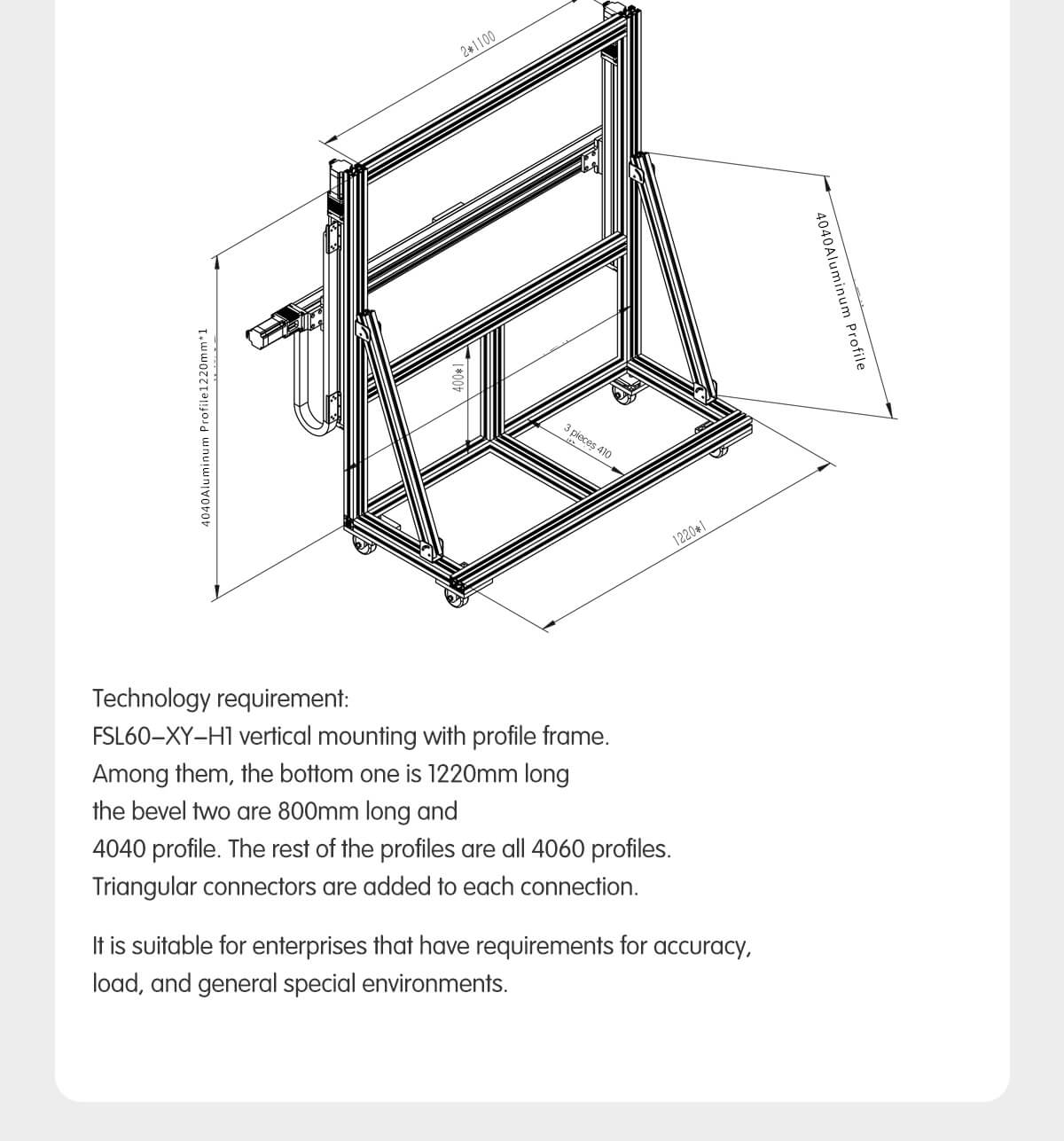

FSL60-XY-H1 vertical mounting with profile frame.
Among them, the bottom one is 1220mm long, the bevel two are 800mm long and 4040 profile. The rest of the profiles are all 4060 profiles.
Triangular connectors are added to each connection.

Series: FSL60IS-H1

Stroke Range: 50mm-1200mm

Position Accuracy: 0.02mm

Max Speed: 500mm/s

Max Load: 40kg

IP Level: IP51
