Gantry Robot XYZ Positioning System Multi-axis Linear Motion Stage

Short Description:

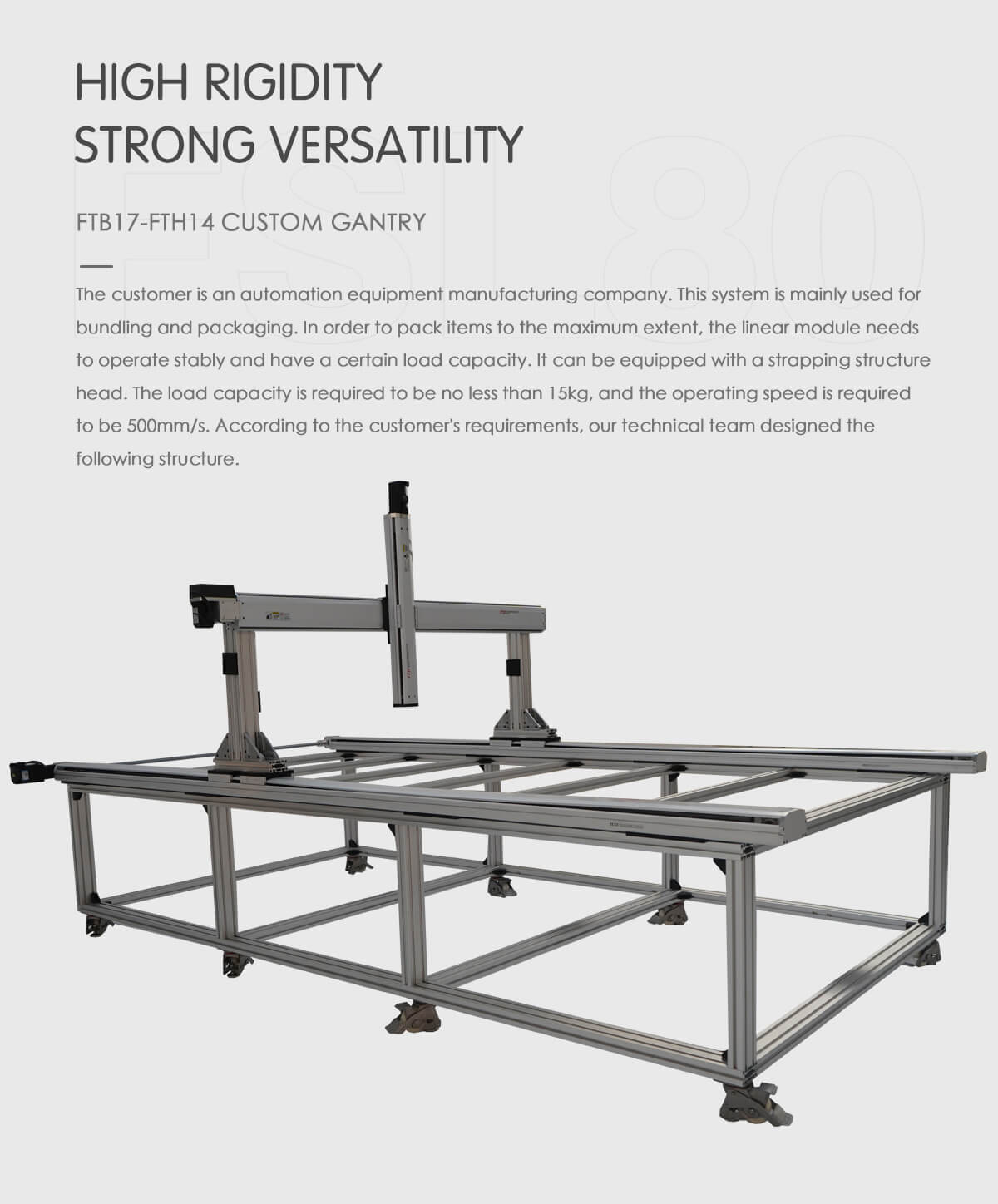

FUYU Linear Motion Z Axis Gantry Robot

The customer is an automation equipment manufacturing company. This system is mainly used forbundling and packaging.

In order to pack items to the maximum extent, the linear module needsto operate stably and have a certain load capacity.

It can be equipped with a strapping structurehead. The load capacity is required to be no less than 15kg and the operating speed is requiredto be 500mm/s.

According to the customer’s requirements, our technical team designed the following structure.

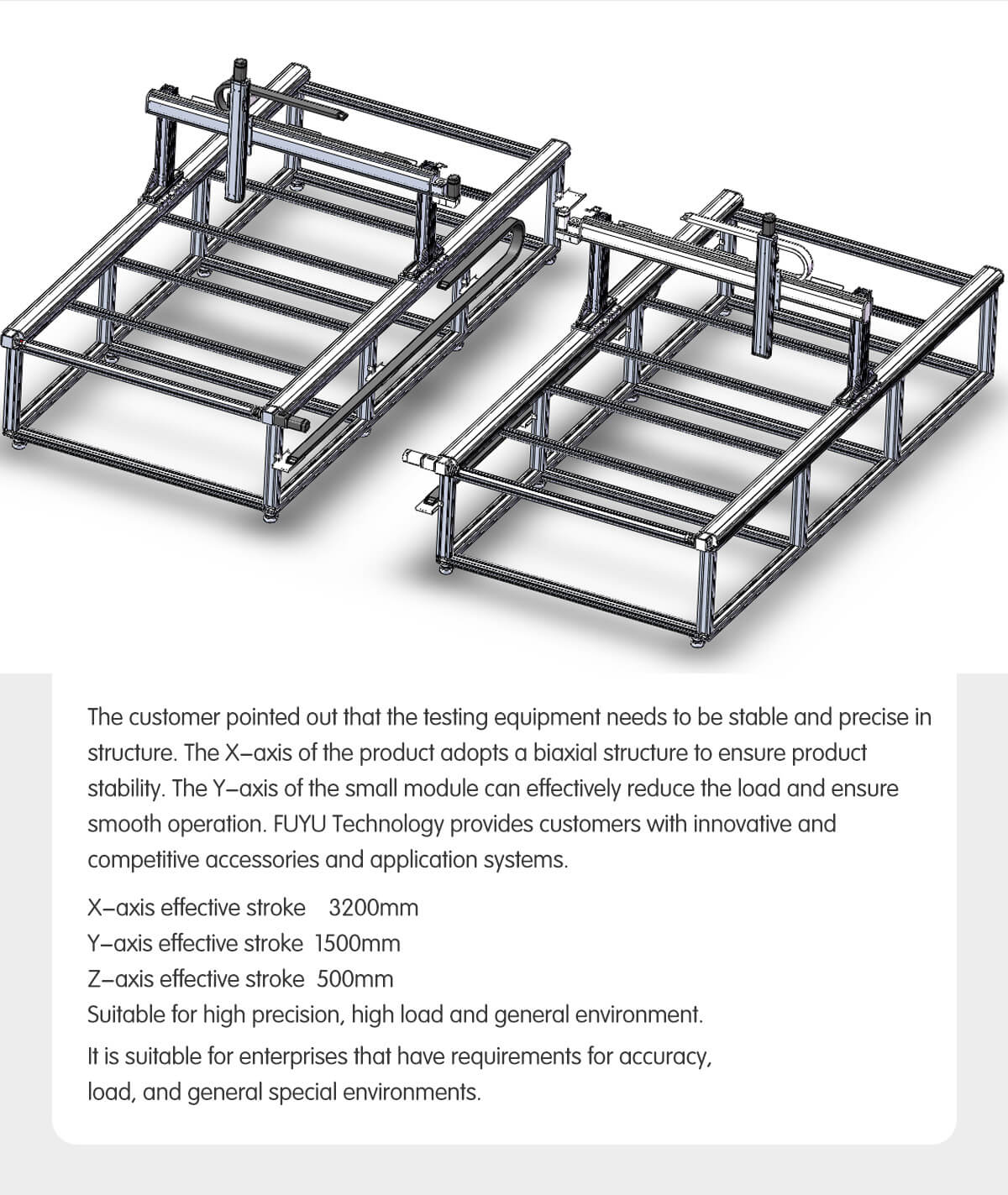

X-axis effective stroke 3200mm

Y-axis effective stroke 1500mm

Z-axis effective stroke 500mm

Suitable for high precision, high load and general environment.lt is suitable for enterprises that have requirements for accuracy,load, and general special environments.

Series: FTB17FTH14IS-L

Stroke Range: 100mm-3500mm

Module Type: Belt Driven & Ball Screw

Repeat Position Accuracy: 0.02mm-0.05mm

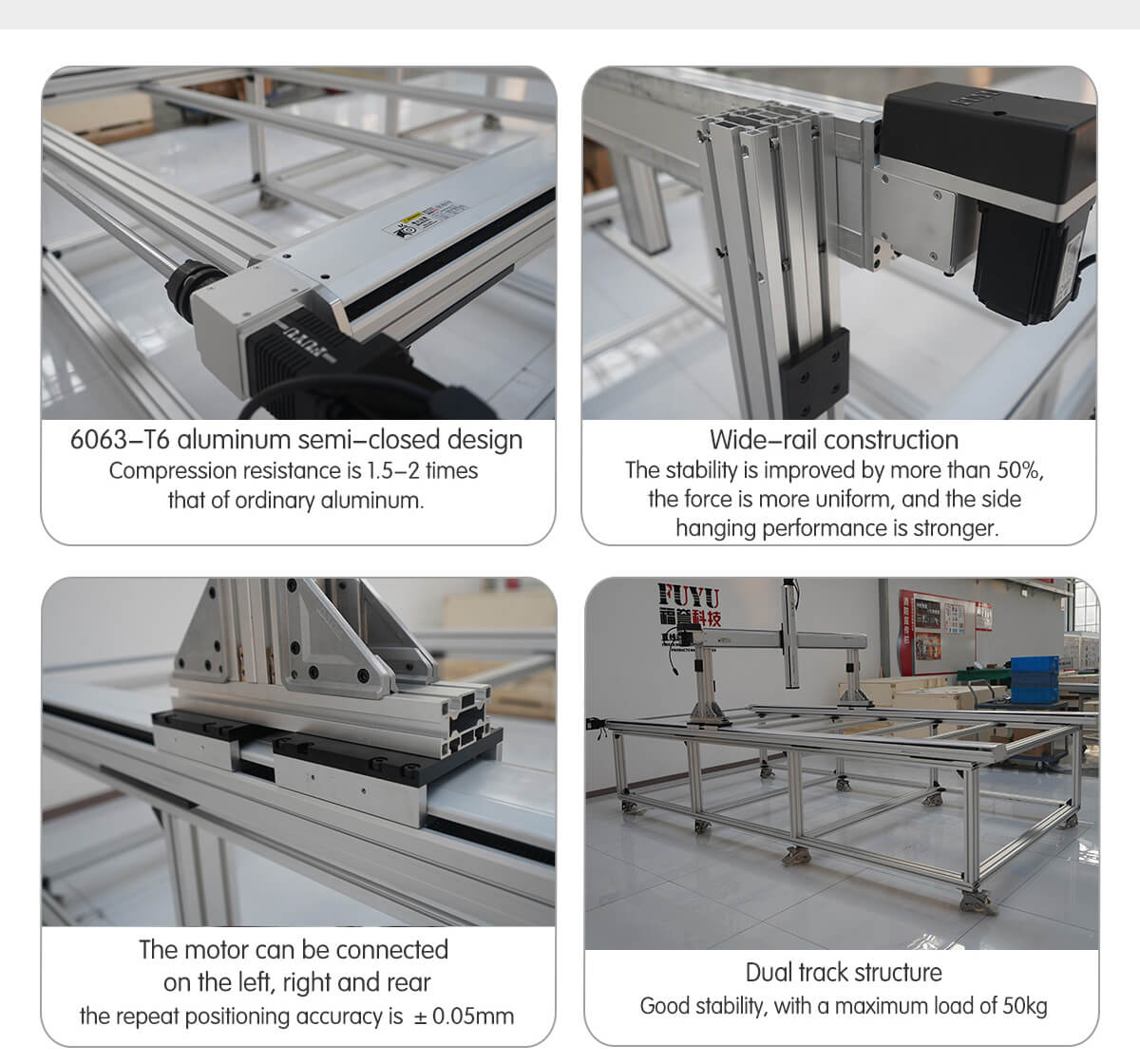

Dustproof Structure: Semiclosed Profile

Load Capacity: 45-110KG
