Belt Driven Actuator Multi-axis Positioning Stage Linear Motion Gantry Robot

Short Description:

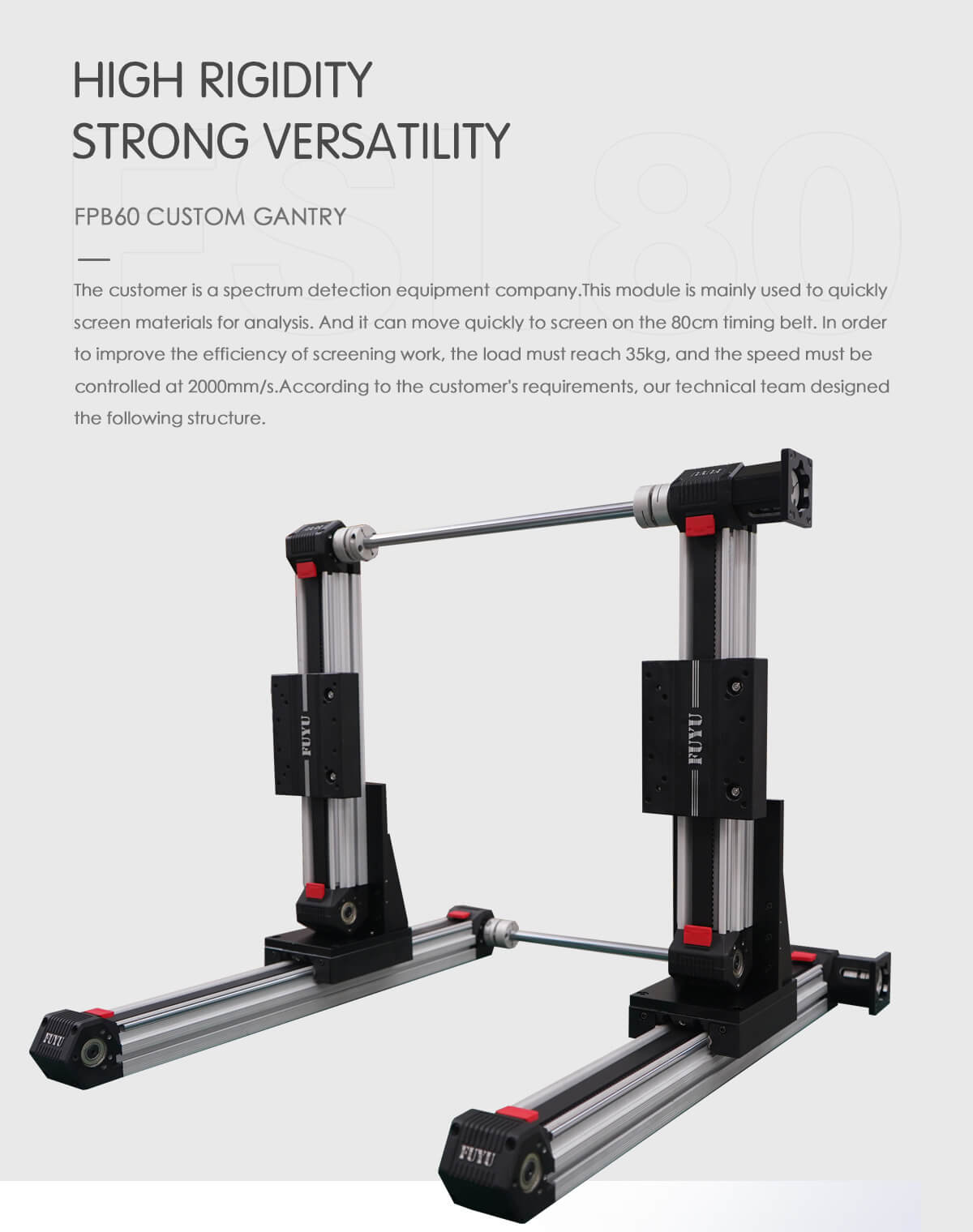

The customer is a spectrum detection equipment company.

This module is mainly used to quickly screen materials for analysis. And it can move quickly to screen on the 80cm timing belt.

In order to improve the efficiency of screening work, the load must reach 35kg and the speed must be controlled at 2000mm/s.

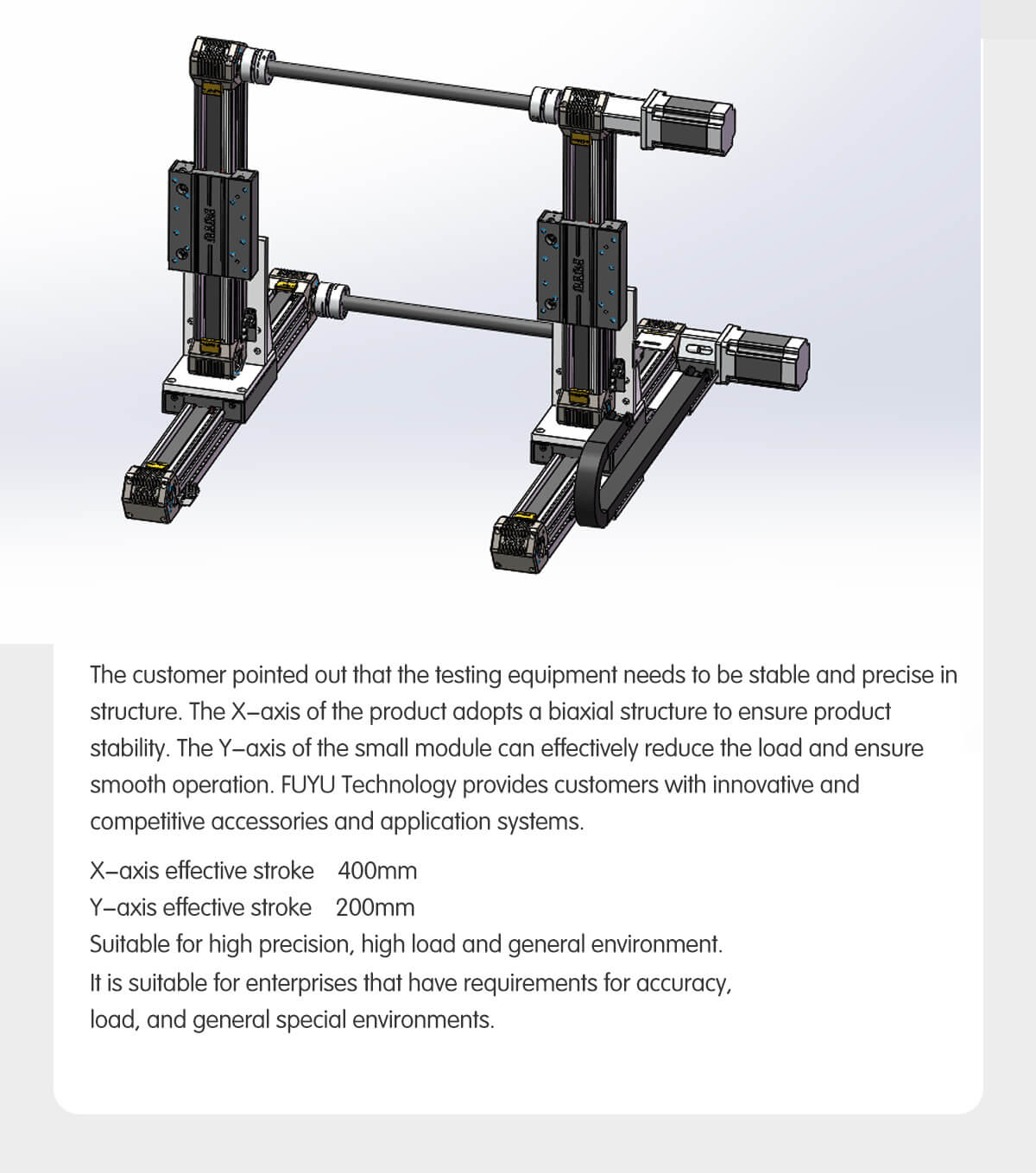

According to the customer’s requirements, our technical team designed the following structure.

Series: FPB60IS-DT

Stroke Range: 100mm-3500mm

Position Accuracy: 0.05mm

Max Speed: 2000mm/s

Max Load: 40kg

Side Mounted Load: 25kg

Send email to us

Product Detail

Company Profile

FBL100和双轴芯皮带定制龙门详情页英文_04

Previous: Gantry Robot XYZ Positioning System Multi-axis Linear Motion Stage

Next: High Rigidity Rail Heavy Duty Guide Linear Motion Gantry Robot Double Track Ball Screw Actuator
