    Linear Motion Belt Driven Actuator XYZ Stage Gantry Robot Positioning System

    Short Description:

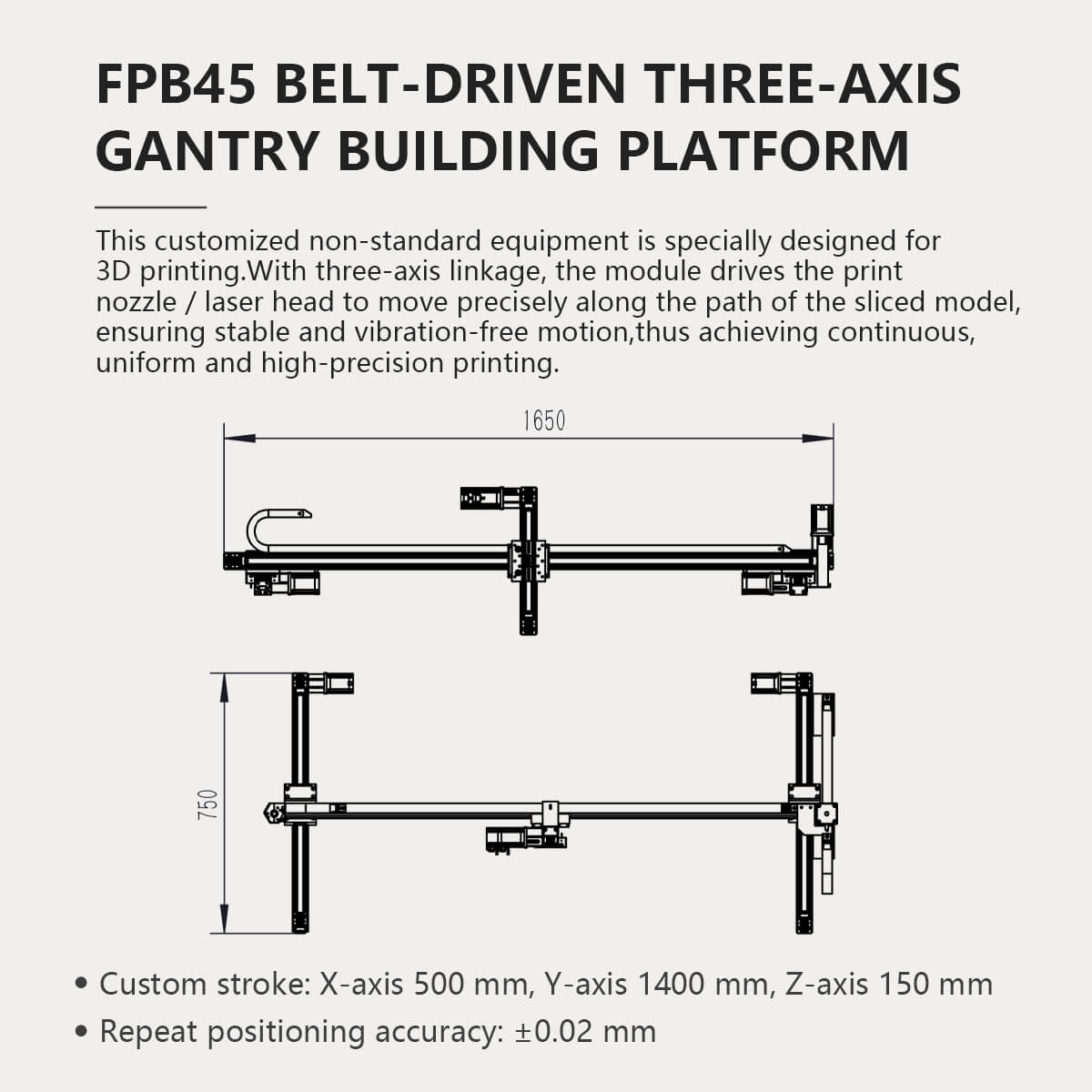

    Customized non-standardised Linear Motion Stage is specifically designed for 3D printing, featuring three-axis synchronised movement, with the print head driven by a modular system;
    the print head / laser head moves precisely along the trajectory of the sliced model, ensuring stable, vibration-free movement,
    enabling continuous, uniform and high-precision printing.


  • Series: FPB45IS-L
  • Stroke Range: 100mm-3900mm
  • Position Accuracy: 0.05mm
  • Max Speed: 2000mm/s
  • Max Load: 15kg
    • Play video

    Product Detail

    Brand Overview

                      1 2 3 4 5 6 7 8 45双轴心详情页英文_05 45双轴心详情页英文_06



    System General Parameters
    Position Accuracy(mm) ±0.05
    Ladder type Screw Diameter(mm) 70
    Acceleration and deceleration time（S） 0.5
    400W Servo motor
    Horizontal Loadings（KG） 2KG 4KG 6KG 8KG 10KG 12KG 14KG 15KG
    Full Speed（mm/s） 2000 2000 2000 2000 2000 2000 2000 2000
    Vertical Loadings（KG） 2KG 4KG 6KG 8KG 10KG
    Full Speed（mm/s） 2000 2000 2000 2000 1500
    Side mounted Loadings（KG） 2KG 4KG 6KG 8KG 10KG
    Full Speed（mm/s） 2000 2000 2000 2000 2000
    Hoisting Loadings（KG） 2KG 4KG 6KG 8KG 10KG
    Full Speed（mm/s） 2000 2000 2000 2000 2000
    5756 Stepper motor (4A current)
    Horizontal Loadings（KG） 2KG 4KG 6KG 8KG 10KG 12KG 14KG 15KG
    Full Speed（mm/s） 1000 1000 800 800 600 600 500 500
    Hoisting Loadings（KG） 2KG 4KG 6KG 8KG 10KG
    Full Speed（mm/s） 1000 800 800 600 400
    Side mounted Loadings（KG） 2KG 4KG 6KG 8KG 10KG
    Full Speed（mm/s） 1000 800 800 600 400
    Vertical Loadings（KG） 1KG 2KG 3KG
    Full Speed（mm/s） 800 600 300
    db: ≤65dB
  • Previous:
  • Next:

    • 品牌宣传页面_01 品牌宣传页面_02 品牌宣传页面_03 品牌宣传页面_04 品牌宣传页面_05 品牌宣传页面_06 品牌宣传页面_07

    CHENGDU FUYU TECHNOLOGY CO.LTD

    FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
