  • FUYU Micro Ball Screw Actuator Linear Motion Guide with Stepper Motor for Medical Device

    Short Description:

    Technical Feature

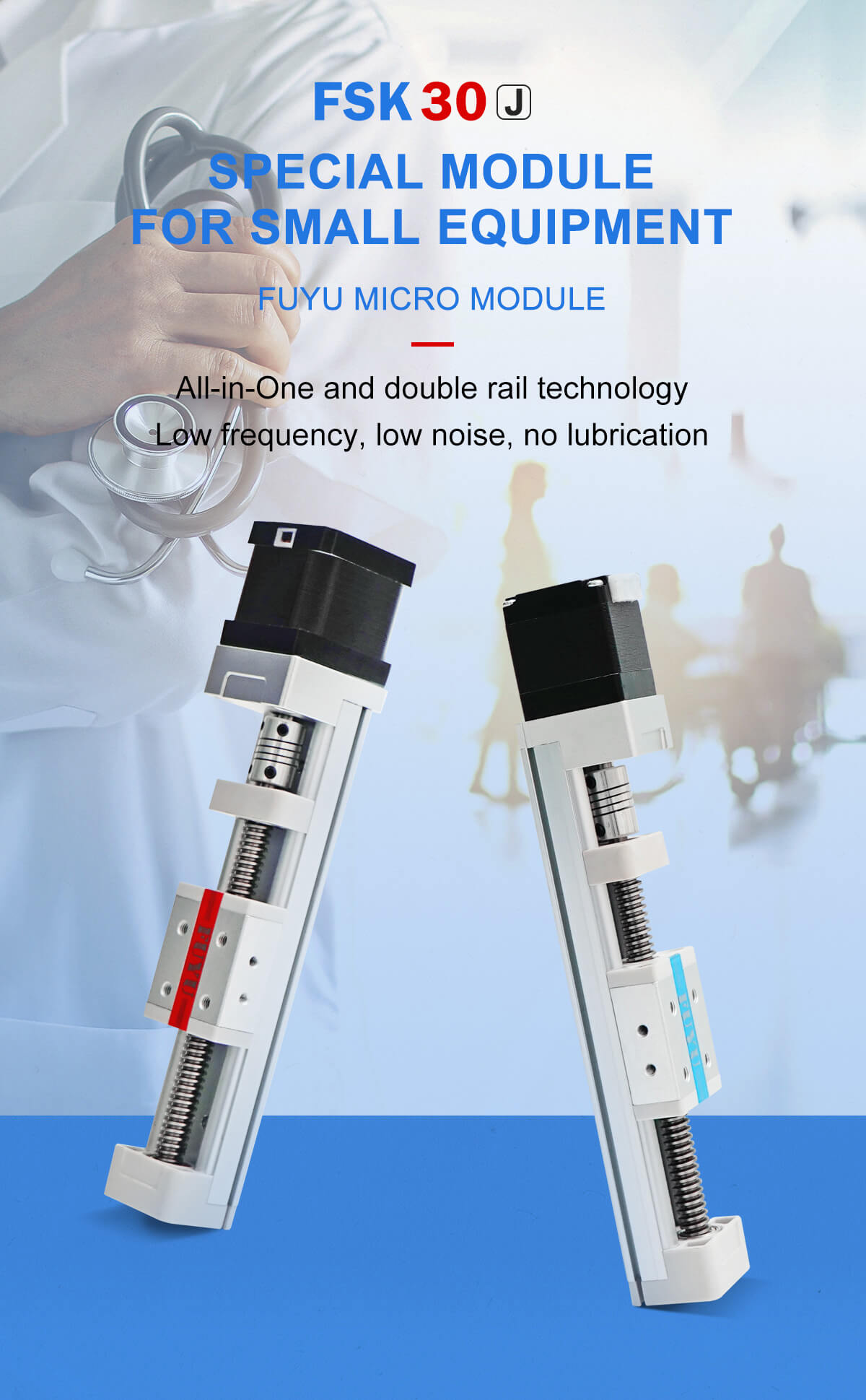

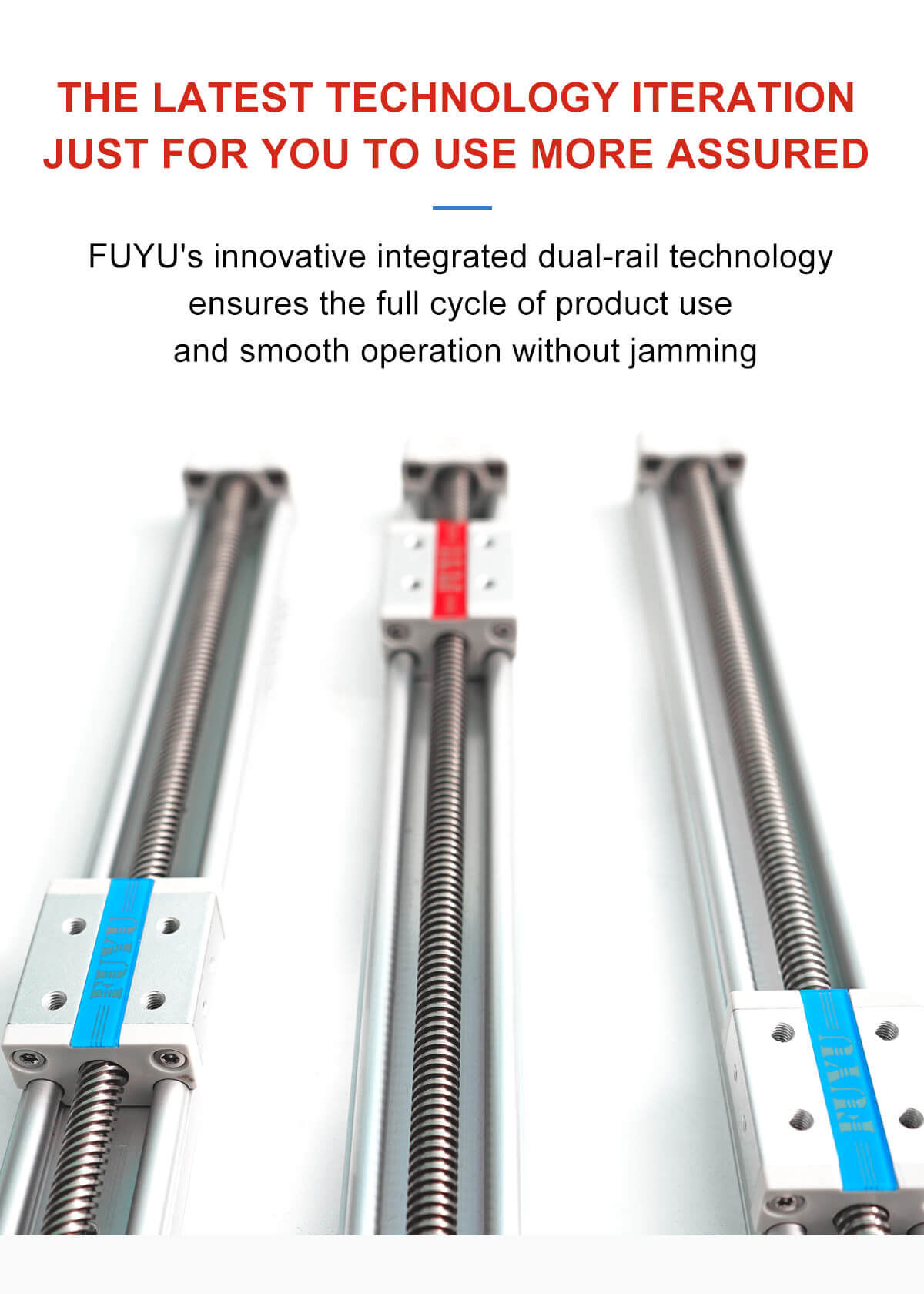

    FSK30J Series are all-in- one and double rail ball screw linear guides. With low frequency, low noise and no lubrication, it is the best choice for customers who require compact, light and micro modules.

    Range of Application

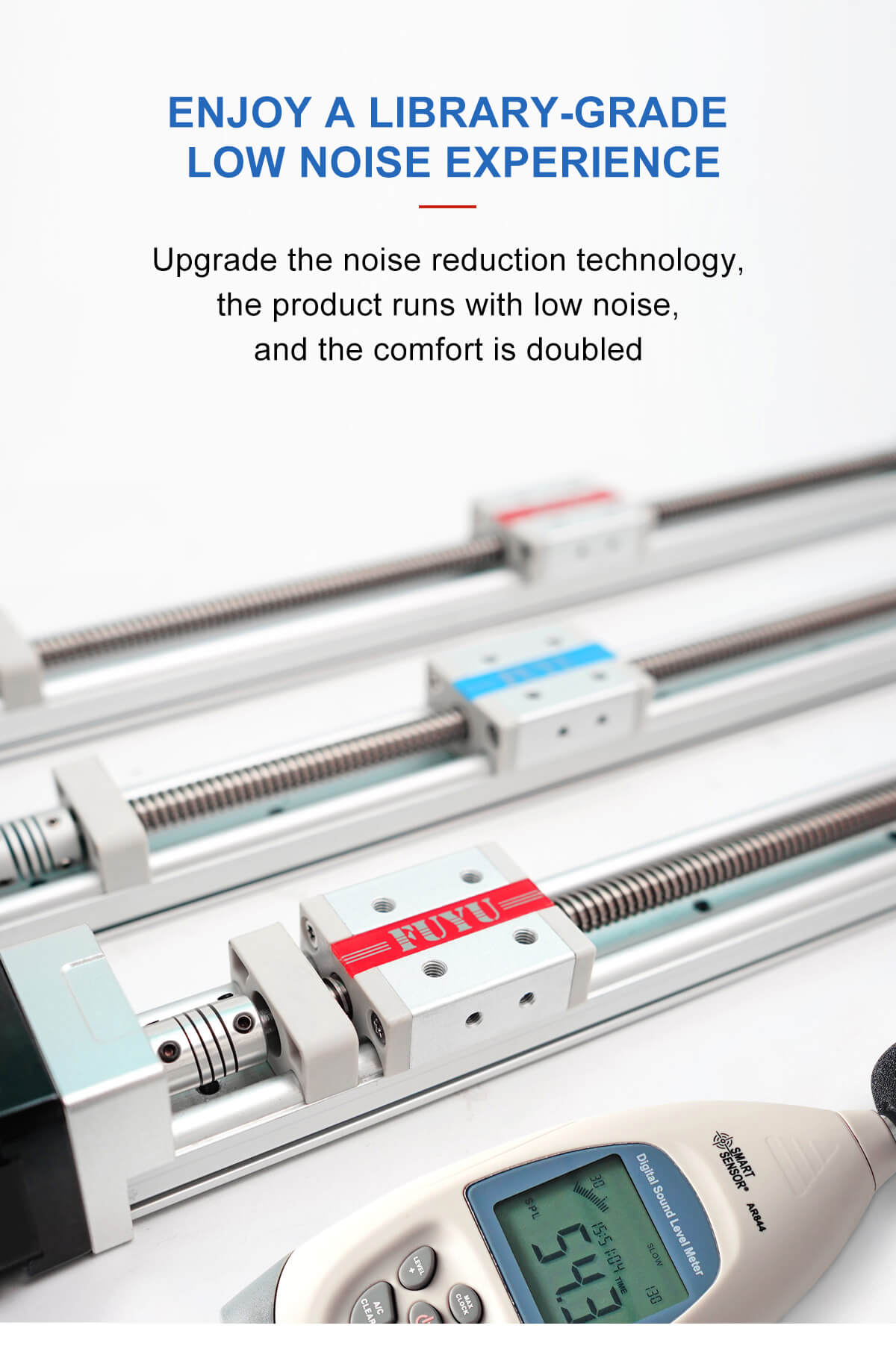

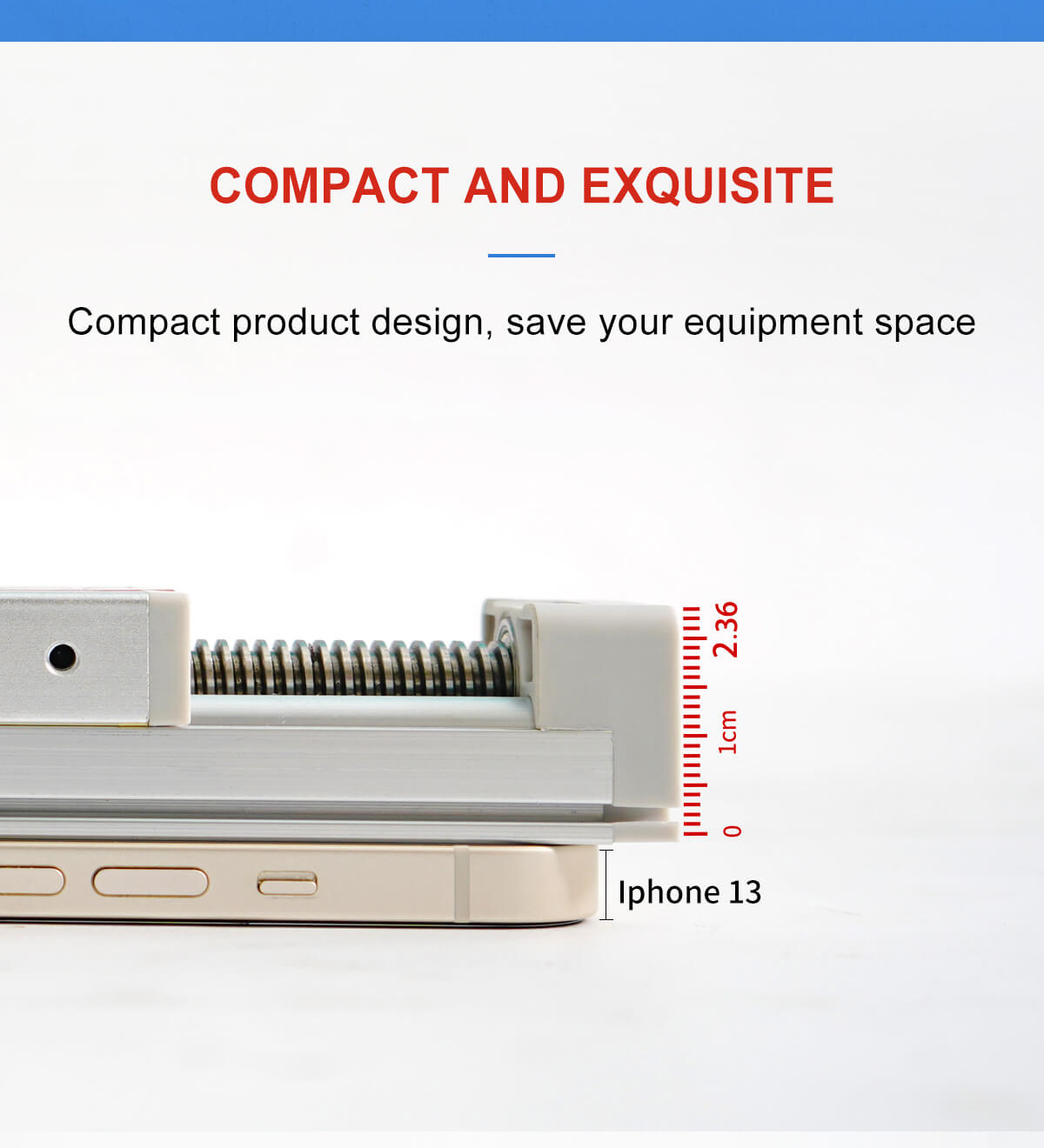

    Compact product design to save your equipment space by only 2.36cm hight. Noise below 60dB is design for the medical devices. Dual rail technology avoid function jamming. Lubrication-free equals oiling worry-free. FSK30J is dedicated to Optical Biometer, Dispensing Instrument and Acid Extractor.

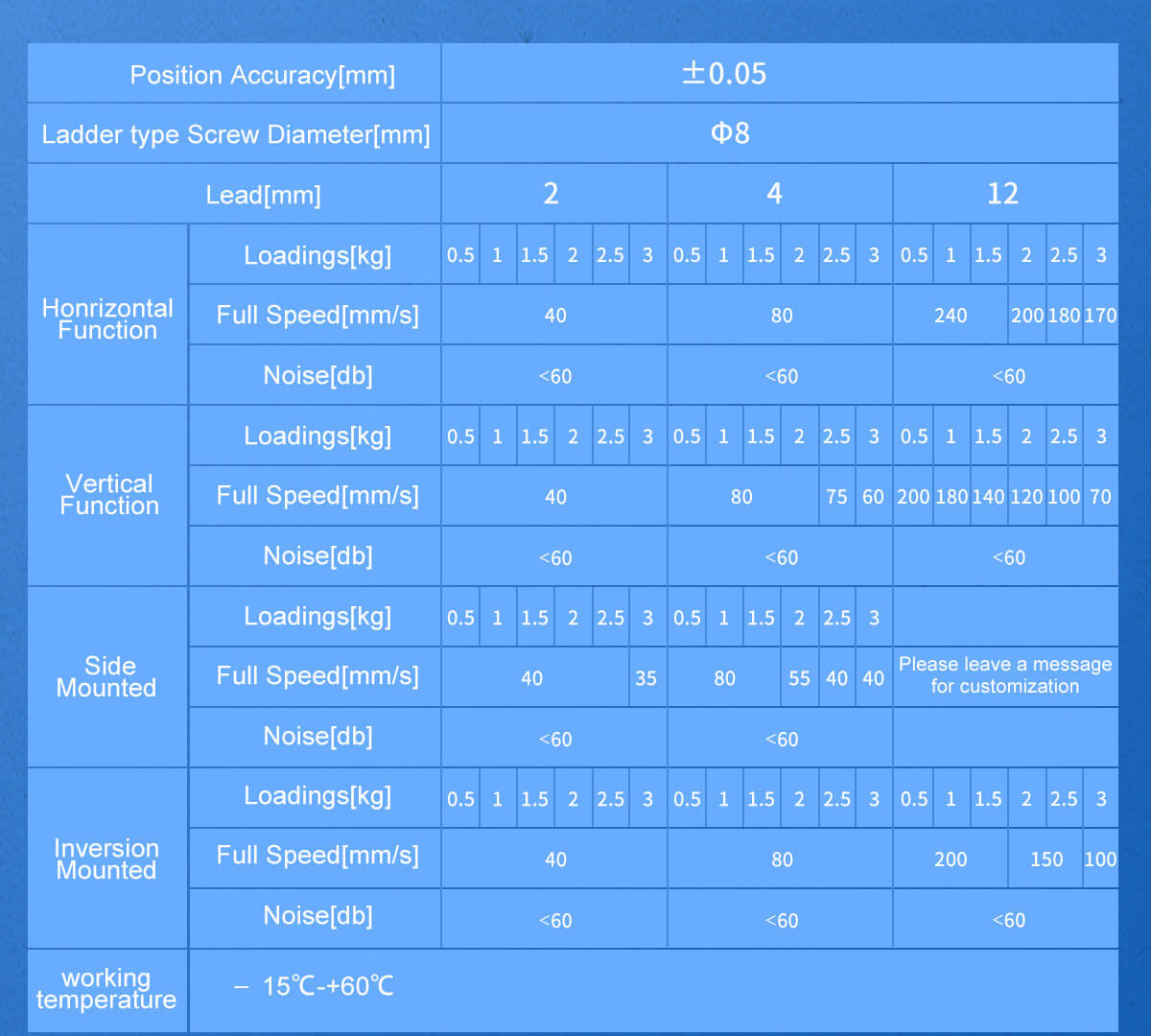

  • Series: FSK30J
  • Type: Ball Screw
  • Stroke Range: 500mm
  • Position Accuracy: 0.05mm
  • Max Speed: 80mm/s
  • Max Load: 3kg
  • Product Detail

    Company Profile


    Factory Introduction Product Certificate Research and Development Technology Service

    CHENGDU FUYU TECHNOLOGY CO.LTD

    FUYU Technology is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Multi-axis Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, IP65, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-4000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
