Q: What is an axis in a CNC machine?

A: In a CNC machine, an axis is a direction in which the machine tool can move or rotate. The axes on a CNC machine are used to describe its movement capability, typically in a straight line (linear) or around an axis of rotation.

Q: What are the different CNC machine axis configurations?

A: Different CNC machine axis configurations include 3-axis, 4-axis, 5-axis, and even up to 9-axis cnc machining. Each configuration allows for different types of movement and complexity in machining operations.

Q: How do 3-axis CNC milling machines work?

A: 3-axis CNC milling machines work by moving the cutting tool along the X, Y, and Z axes. These machines are suitable for basic milling operations like milling slots and simple cuts along an xyz plane.

Q: What is a 4-axis CNC machine?

A: A 4-axis CNC machine can move along the X, Y, and Z axes, and it also features an additional rotary axis around one of the standard axes, typically the X or Y axis. This allows for more complex machining on multiple sides of a workpiece.

Q: What are the benefits of 5-axis CNC machining?

A: A 5-axis CNC machine can move along the three linear axes (X, Y, Z) as well as two rotary axes. This machine configuration allows for intricate and precise machining from different angles, which is perfect for complex and detailed workpieces.

Q: What does multi-axis CNC machining entail?

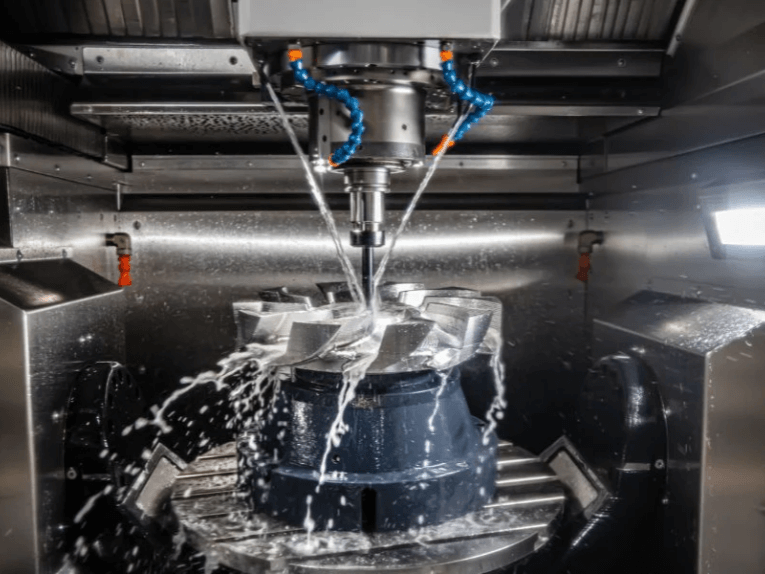

A: Multi-axis CNC machining involves using machines that operate along more than the standard three XYZ axes. These machines, such as 5-axis and even 9-axis cnc machining setups, can perform more complex tasks and produce intricate parts with high precision.

Q: How does a CNC lathe differ from a cnc milling machine?

A: A CNC lathe typically rotates the workpiece on its axis while a stationary cutting tool shapes it, making it ideal for cylindrical parts. Conversely, a cnc milling machine usually involves a rotating cutting tool and a stationary workpiece, suitable for creating parts with more varied geometries.

Q: What are the different axes a CNC machine can have?

A: The basic axes a CNC machine may include the X, Y, and Z (3 axes). Advanced machines can also have additional rotary axes (A, B, and C) and sometimes even more linear axes for a total of up to 9 axes.

Q: What is meant by CNC machine axis counts?

A: CNC machine axis counts refer to the number of axes a CNC machine can move along or rotate around. Common axis counts include 3-axis, 4-axis, 5-axis, and 9-axis configurations, each offering varying levels of complexity and capability in machining tasks.
