Original Factory CNC Linear Guide Aluminum Slider Micro Rail and Mini Linear Bearing Block

Short Description:

Precision Linear Guide Pairs: A Comprehensive Product Introduction

Precision Ball Linear Guide Series are fundamental components widely used across various sectors of the mechanical industry. These products are essential for ensuring smooth, accurate, and reliable motion in a multitude of applications. Our product range is divided into three main series to cater to different industrial needs:

Miniature Linear Guide Series:

Guide Rails: Available in international standard sizes of 5, 7, 9, 12, and 15. Each size comes in both standard and wide versions, totaling 10 different models.

Sliders: Offered in standard and extended lengths, compatible with both standard and wide guide rails, resulting in a total of 20 different configurations.

Model: FEG/FHG/FMG

Precision Grade: 0.008mm - 0.1mm

Rail Length: 50mm - 4000mm

Load Rating: 1kg - 2000kg

Send email to us Download To PDF Play video

Product Detail

Brand Overview

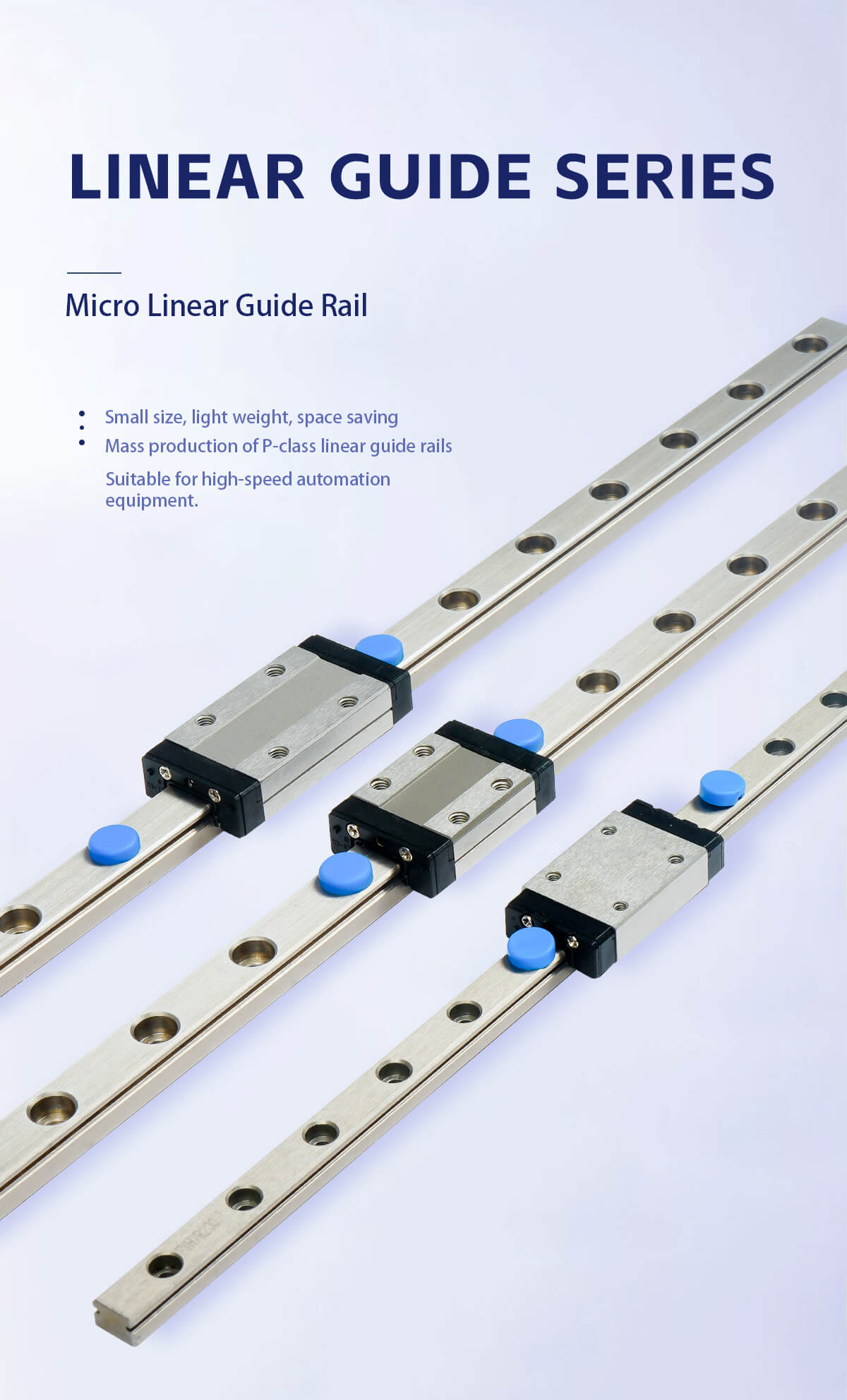

Micro Linear Guide Rail
Small size, light weight, space saving, Mass production of P-class linear guide rails, Suitable for high-speed automation equipment.
In precision instruments, semiconductor equipment, medical equipment and other areas with high precision requirements, high-precision miniature linear guides are usually selected.

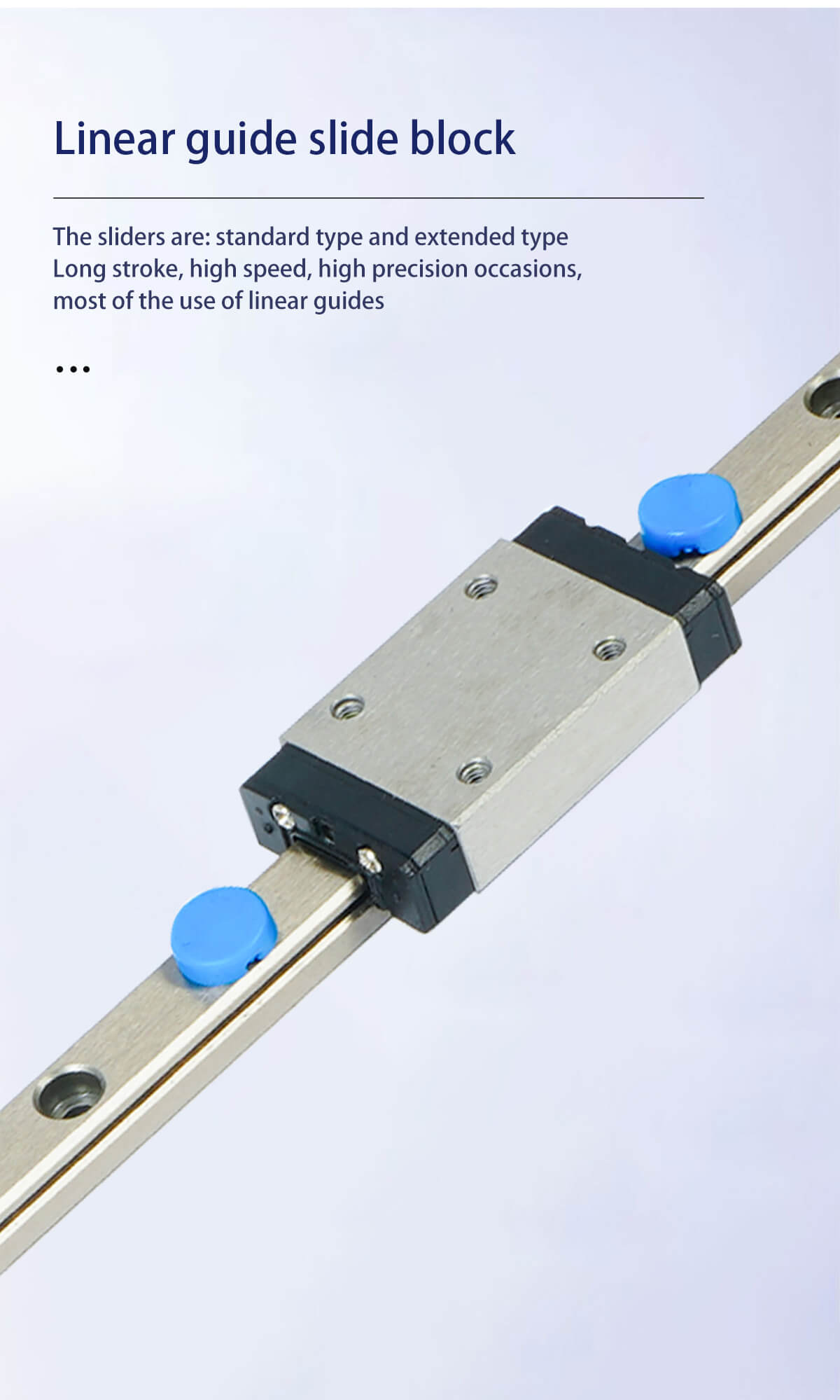

The sliders are: standard type and extended type, Long stroke, high speed, high precision occasions, most of the use of linear guides.

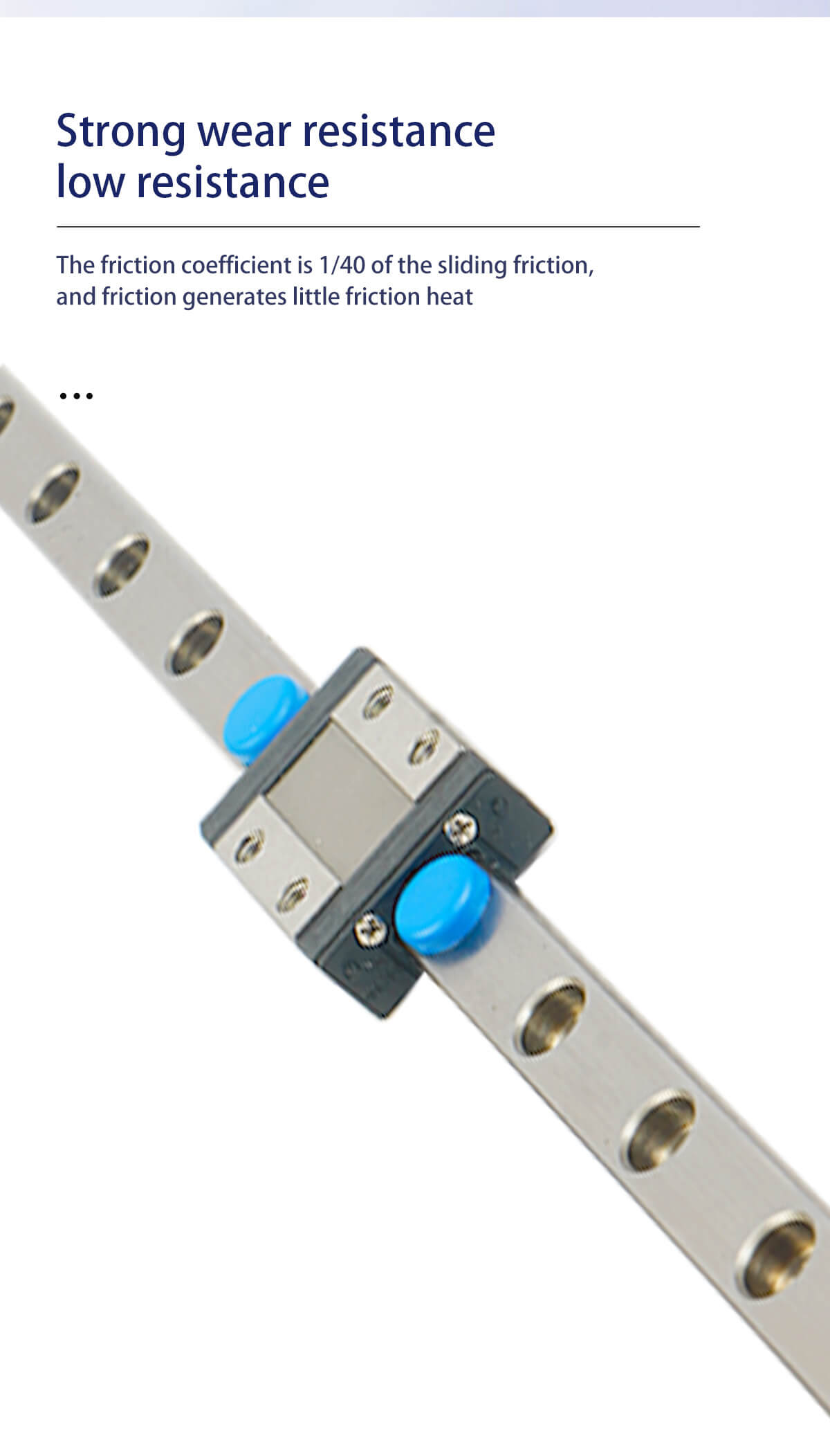

Strong wear resistance, low resistance. The friction coefficient is 1/40 of the sliding friction and friction generates little friction heat.

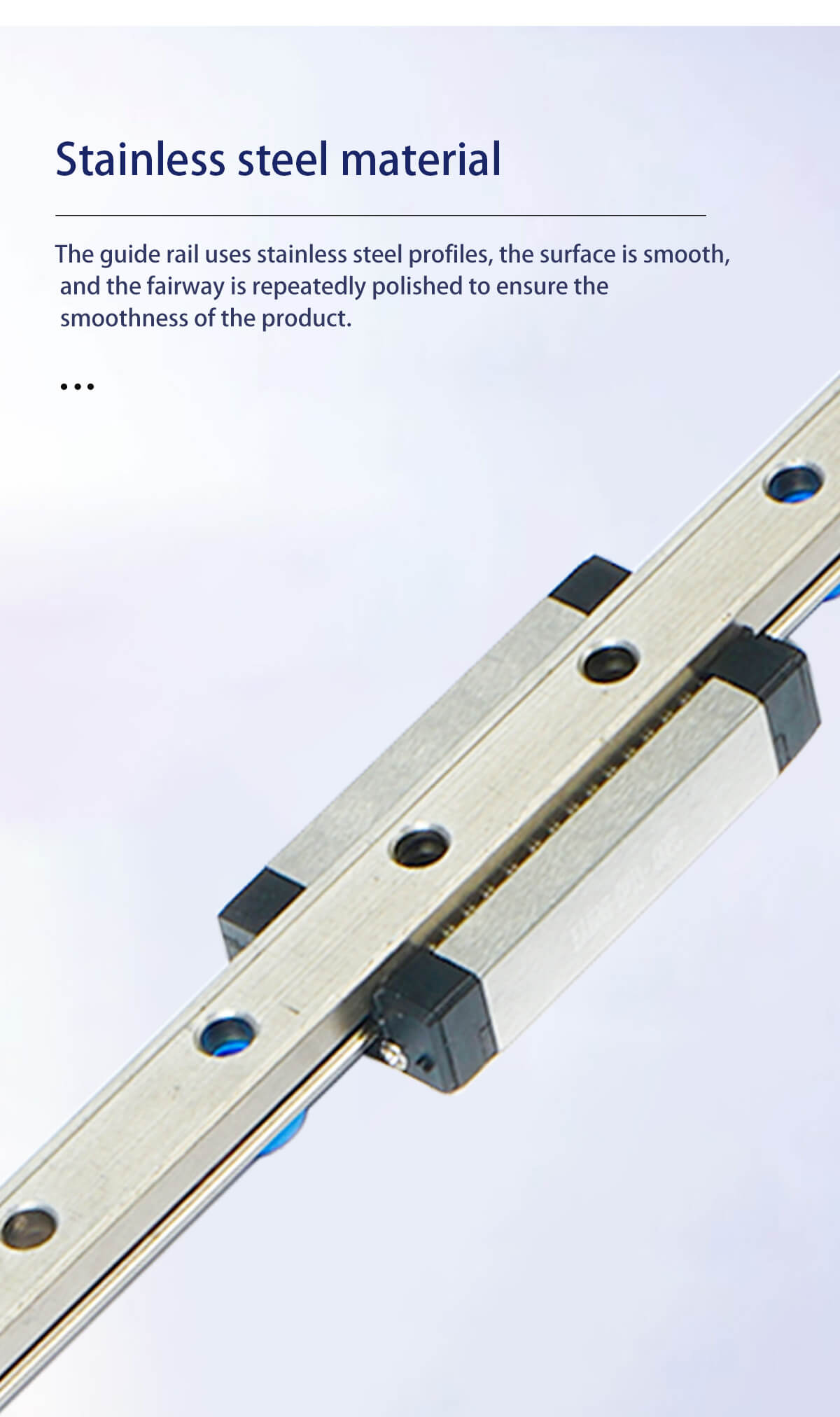

The guide rail uses stainless steel profiles, the surface is smooth and the fairway is repeatedly polished to ensure the smoothness of the product.
