Stainless Steel Linear Module High Speed Ball Screw Rail Guide

Short Description:

Technical Feature

The double spindle linear module developed by FUYU has a body width of 14cm, which runs more smoothly and has strong stability. The repeated positioning accuracy can reach ± 0.02mm, bass noise, and high load. It is one of the main products used in the international market.

Range of Application
Laser cutting machine, PV back sheet cutting engraving machine,transportation mechanical arm, assistant device, Electric research test function demonstration, kinds of industrail automatic production line, kinds of precision machinery processing.
Industry automation for semiconductor device, LED online device, solar equipment, FPD equipment.

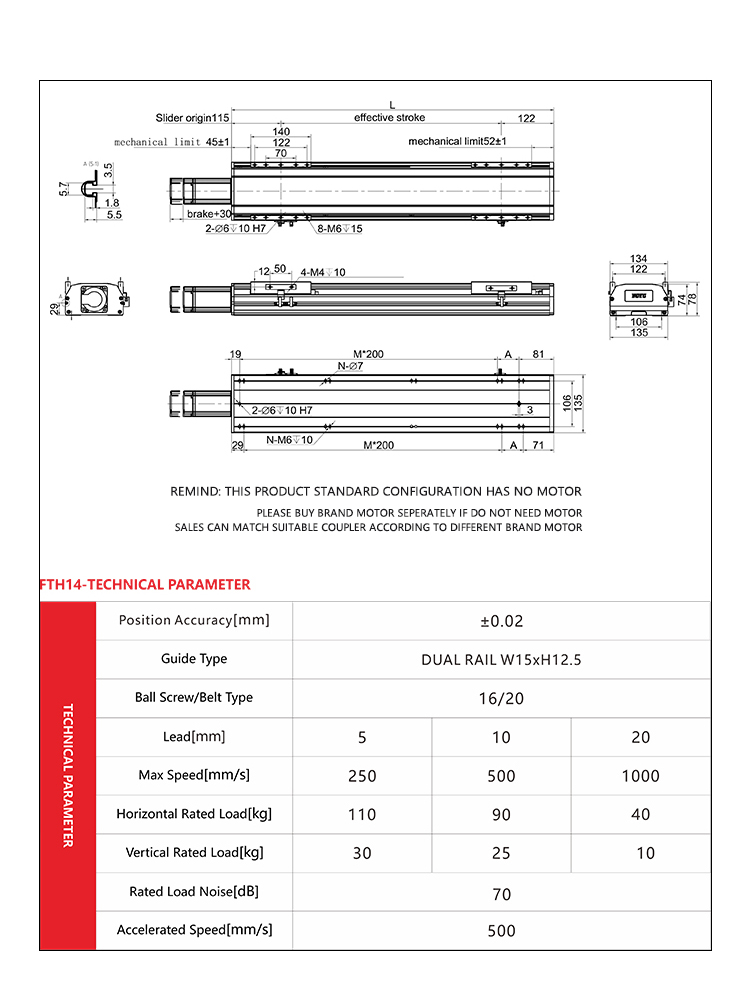

Series: FTH14

Stroke Range: 50mm-1250mm

Module Width: 135mm

Repeat Position Accuracy: 0.02mm

Lead: 5/10/20mm

Speed Range: 250/500/1000mm/s²

Horizontal Load Capacity: 110/90/40kg

Vertical Load Capacity: 30/25/10kg

Send email to us Download To PDF Play video

Product Detail

Brand Overview

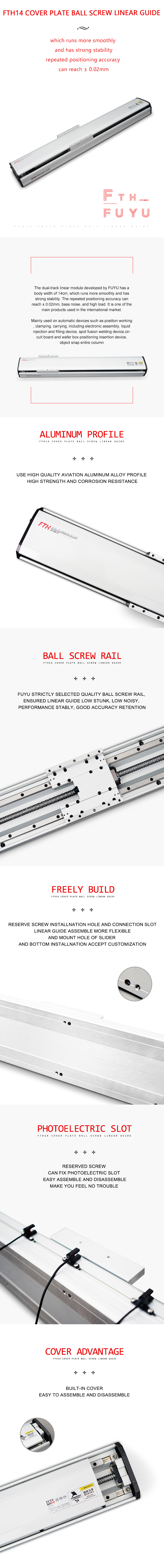

The dual-track linear module developed by FUYU has a body width of 14cm, which runs more smoothly and has strong stability. The repeated positioning accuracy can reach ± 0.02mm, bass noise, and high load. It is one of the main products used in the international market. Mainly used on automatic devices such as position working, clamping, carrying, including electronic assembly, liquid injection and filling device, spot fusion welding device, circuit board and wafer box positioning insertion device, object snap entire column.

Previous: 3-Phase Nema34 Stepper Motor Driver for FUYU Linear Motion Guide

Next: Heavy Duty Linear Motion Long Stroke Rail High Speed Guide Ball Screw Actuator with Servo Motor

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
