Vertical Stage Linear Motion XYZ Motorized Table Ball Screw Actuator Dustproof Rail Guide

Short Description:

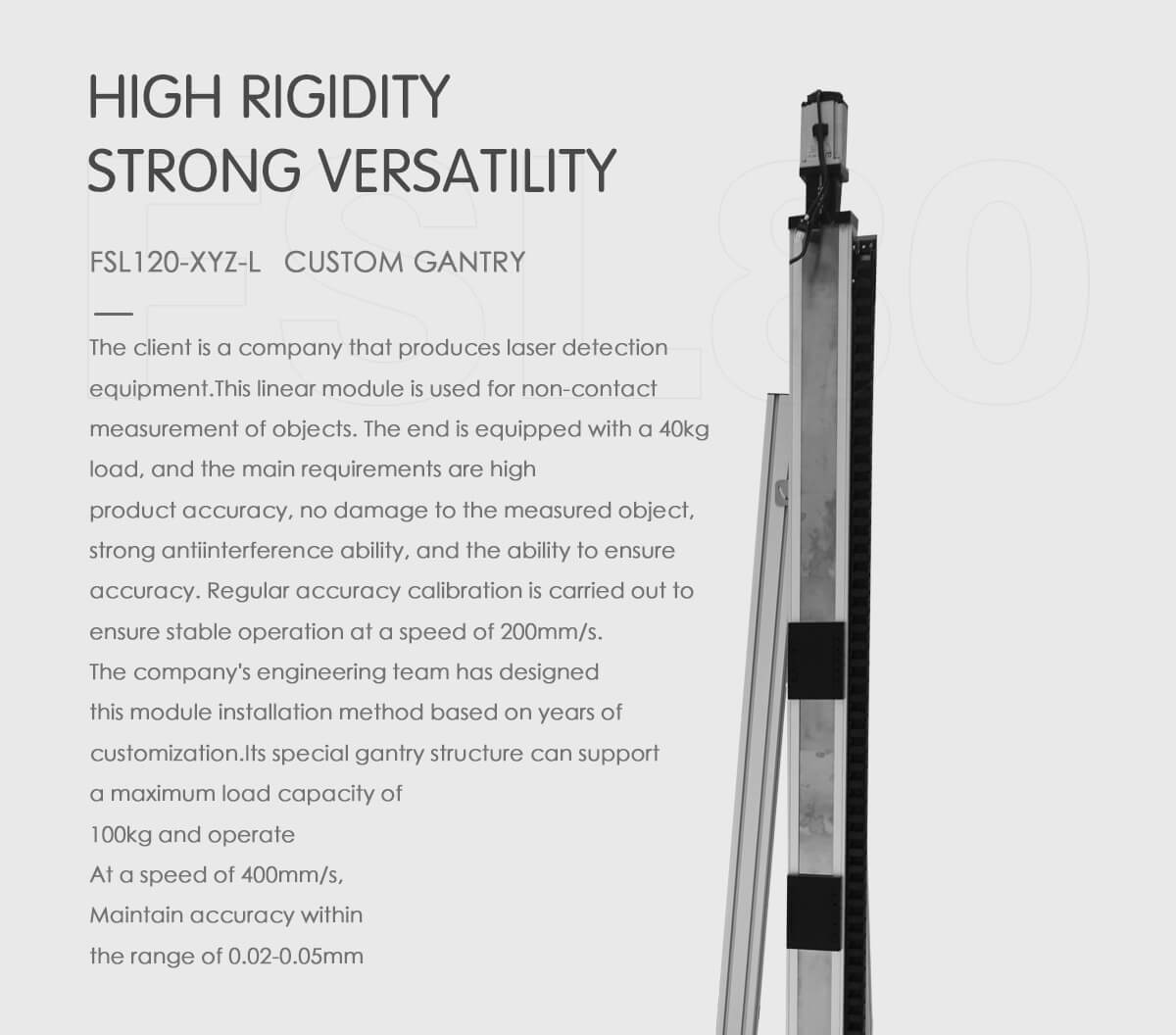

The client is a company that produces laser detection equipment. This linear module is used for non-contact measurement of objects. The end is equipped with a 40kg load capacity and the main requirements are high
product accuracy, no damage to the measured object, strong antiinterference ability, and the ability to ensure position accuracy. Regular accuracy calibration is carried out to ensure stable operation at a speed of 200mm/s. The company’s engineering team has designed this module installation method based on years of customization. Its special gantry structure can support a maximum load capacity of 100kg and operate at a speed range of 400mm/s, meanwhile maintain position accuracy 0.02-0.05mm.

OEM or Custom Design, let’s discuss your project
1. Which type of Linear Motion – Belt Driven or Ball Screw?
2. How long stroke need: X=? Y=? Z=?
3. How much is the Load Capacity and Speed Range?
4. Do you need Motion Controller, Driver and Power Supplier?

Series: FSL120IS-DT

Stroke Range: 1500mm

Position Accuracy: 0.02mm

Speed Range: 400mm/s

Load Capacity: 100kg

Guide Type: Ball Screw

Dustproof: Yes

Send email to us

Product Detail

Brand Overview

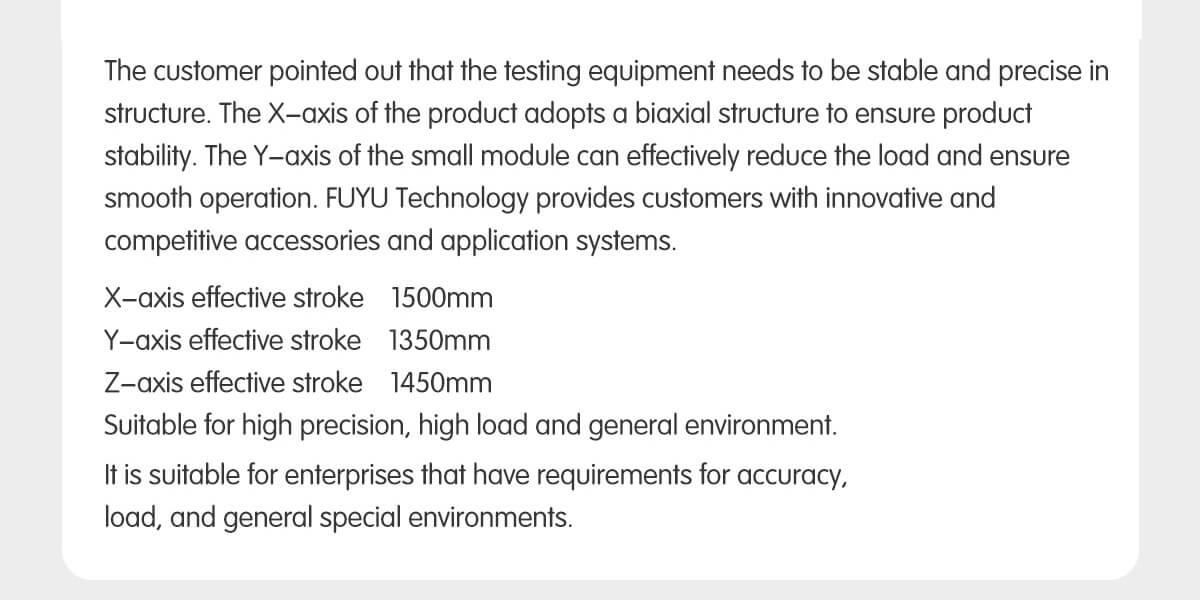

The customer pointed out that the testing equipment needs to be stable and precise in structure. The X-axis of the product adopts a biaxial structure to ensure product stability. The Y-axis of the small module can effectively reduce the load and ensure smooth operation. FUYU Technology provides customers with innovative and competitive accessories and application systems. X-axis effective stroke 1500mm, Y-axis effective stroke 1350mm, Z-axis effective stroke 1450mm. Suitable for high precision, high load and general environment. It is suitable for enterprises that have requirements for accuracy, load and general special environments.

Previous: Motorized Table Belt Driven Actuator Dustproof Rail Guide XY Positioning Stage

Next: Motorized Table Vertical Linear Motion XYZ Stage Ballscrew Actuator Multi-axis Positioning System

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
