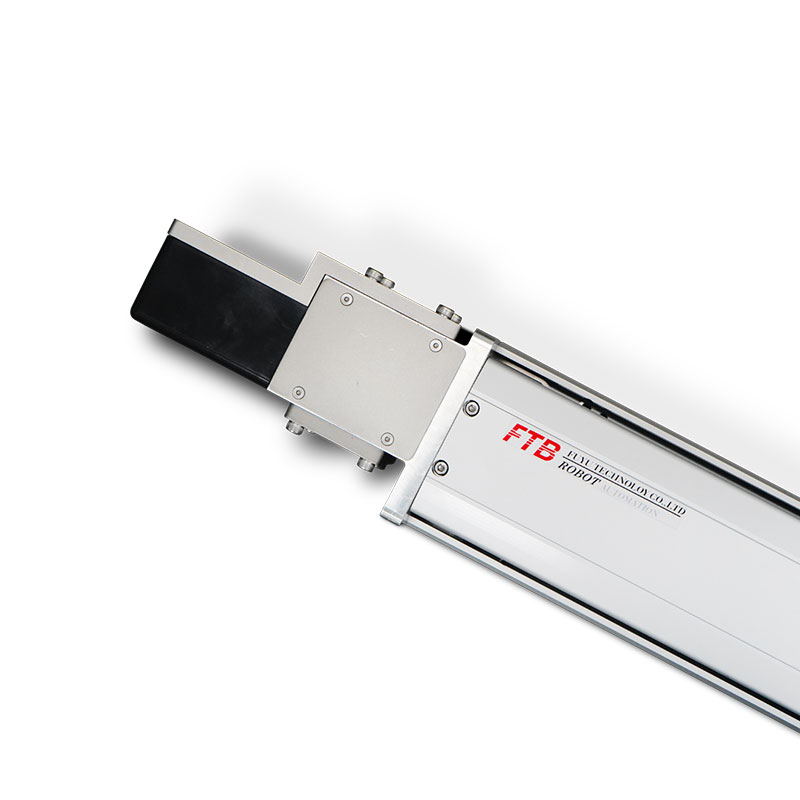

Heavy Duty Linear Motion Long Stroke Rail High Speed Guide Ball Screw Actuator with Servo Motor

Short Description:

Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification.
Wide Variety of Ready-to-Ship Products
Quantity Discounts Starting at 10 pcs
Custom OEM Solutions
Programming Services
If need OEM or Custom Design, please check here – https://www.fuyumotion.com/industry-solution

To get professional service, we have some questions for your project：
1. Which type of Linear Motion do you want, Belt Driven or Ball Screw?
2. How long stroke need: X=? Y=? Z=?
3. How much is the Load Capacity and Speed Range?
4. Do you need Motion Controller and other accessory together?

Series: FTH17

Stroke Range: 50mm - 1500mm

Lead: 5mm/10mm/20mm

Repeat Position Accuracy: 0,02 mm

Load Capacity: 10kg - 180kg

Speed Range: 250mm/s - 700mm/s

Send email to us Play video

Product Detail

Brand Overview

The double-track linear module developed by FUYU has a body width of 17cm, strong running stability, and a load of up to 120kg. It is mainly used for high-load and high-precision companies. The repeat positioning accuracy can reach ± 0.02mm. It is currently the most popular high-load product in the international market. Mainly used on automatic devices such as position working, clamping, carrying, including electronic assembly, liquid injection and filling device, spot fusion welding device,circuit board and wafer box positioning insertion device, object snap entire column.

Previous: Stainless Steel Linear Module High Speed Ball Screw Rail Guide

Next: Dual Rails Linear Module Good Stability Actuator Long Stroke Rail Guide

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
