Heavy Duty Actuator Ball Screw Linear Module Double Track Rail Guide

Short Description:

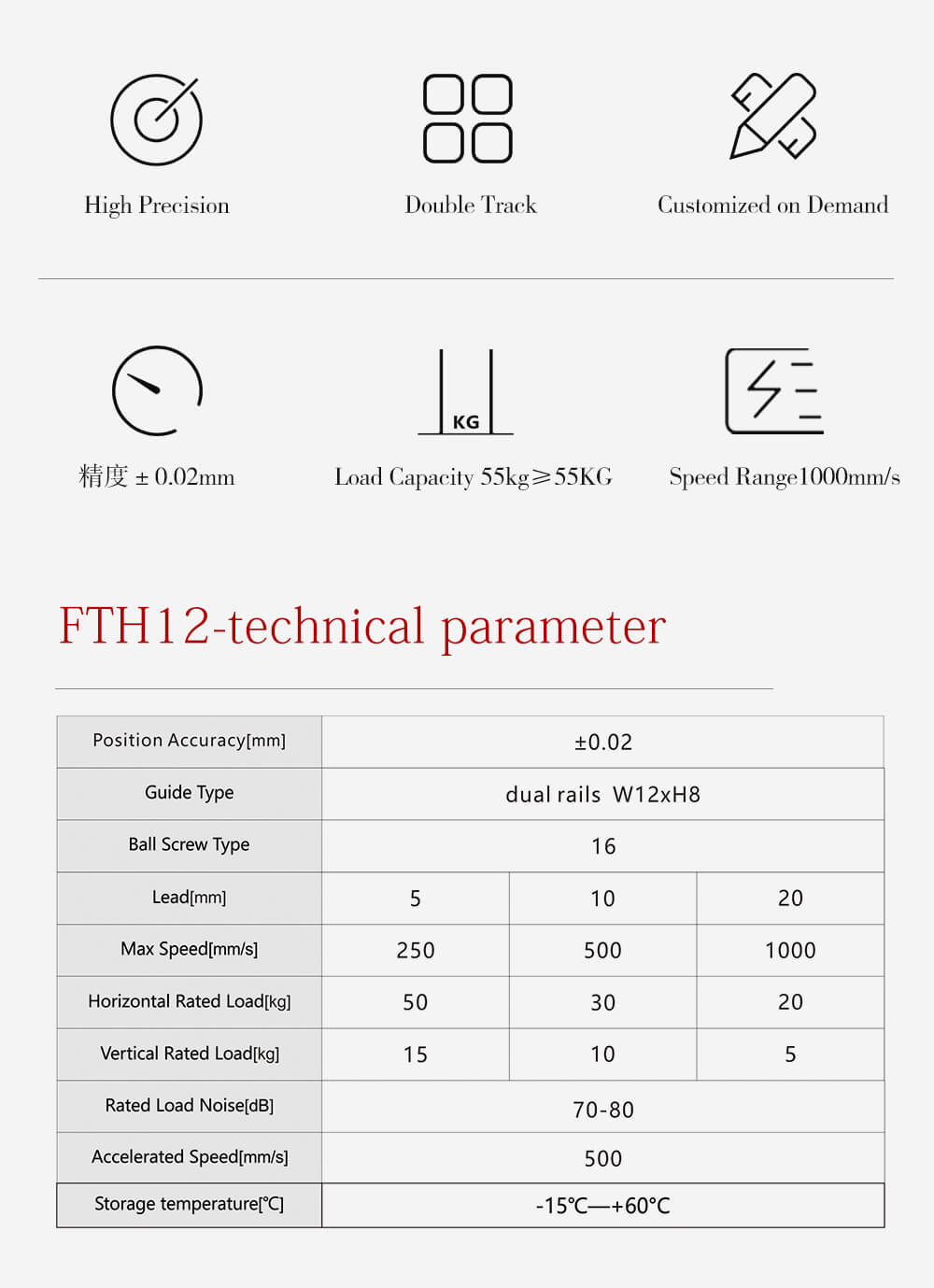

Product Parameters

Repeated Position Accuracy 0.02mm
Guide Model W12XH8 Double Track
Ball Screw / Belt Drive 16
Lead Type 5mm / 10mm / 20mm
Max Speed 250mm/s 500mm/s 1000mm/s
Horizontal Load Capacity 20kg / 30kg / 50kg
Vertical Load Capacity 5kg / 10kg / 15kg
Noise 70dB – 80dB
Accelerated Speed 500mm/s
Work Temperature -15℃ ~ +60℃

Feature Advantages
6063-T6 aluminum semi-enclosed design
Compression resistance is 1.5-2 times that of ordinary aluminum
Double track structure – the stability is improved by more than 50%, the force is more even, and the side-hanging performance is better. Internal and external maintenance of the induction slot
Concave groove design on the side, reserved screws, easy disassembly and assembly of various sensing devices; support for built-in sensing devices to ensure beautiful appearance.

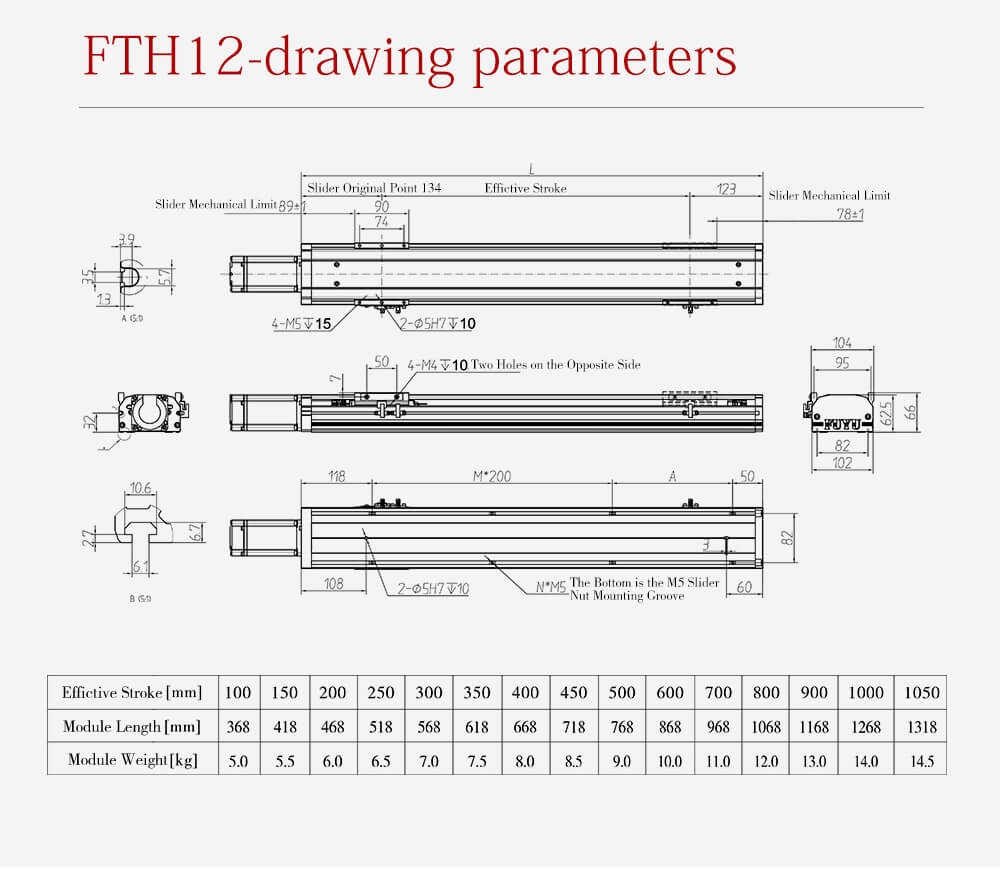

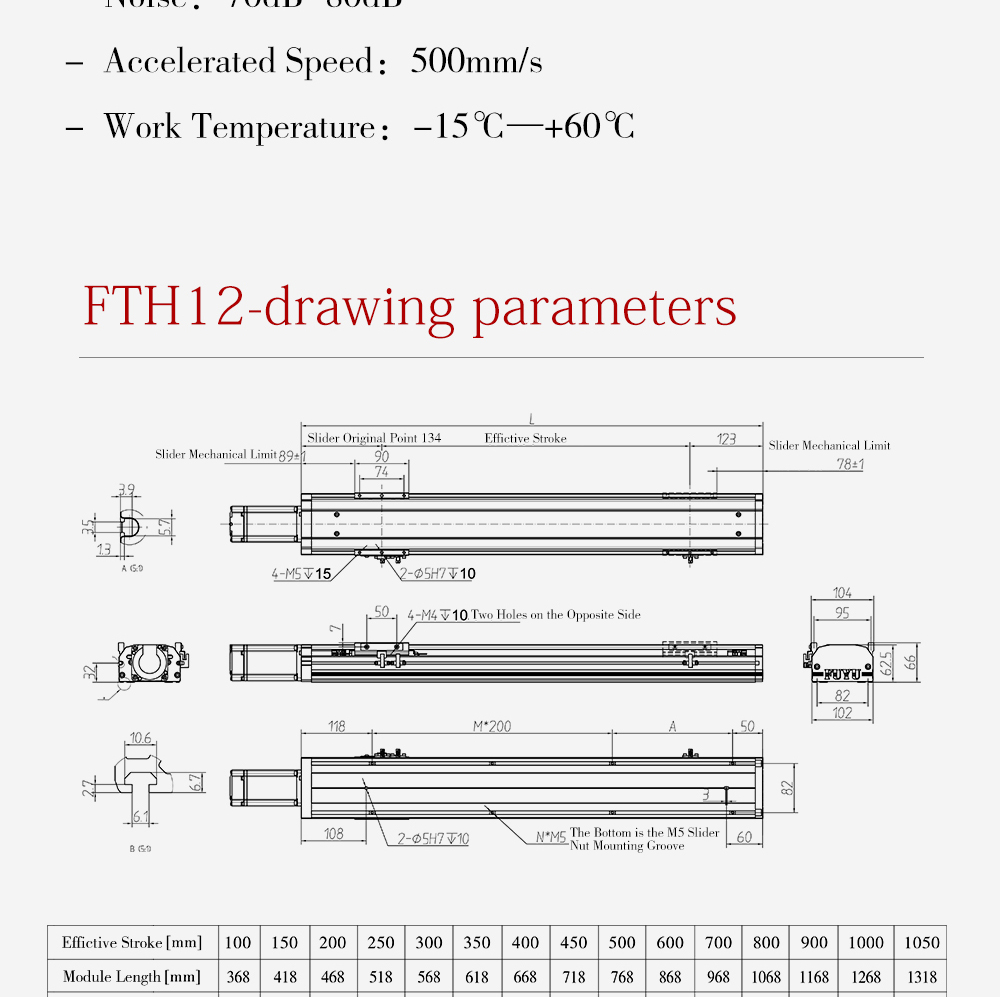

Series: FTH12

Stroke Range: 100mm-1050mm

Ball Screw: 16mm

Repeat Position Accuracy: 0.02mm

Lead: 5/10/20mm

Speed Range: 250/500/1000mm/s²

Horizontal Load Capacity: 20/30/50kg

Vertical Load Capacity: 5/10/15kg

Send email to us Download To PDF Play video

Product Detail

Brand Overview

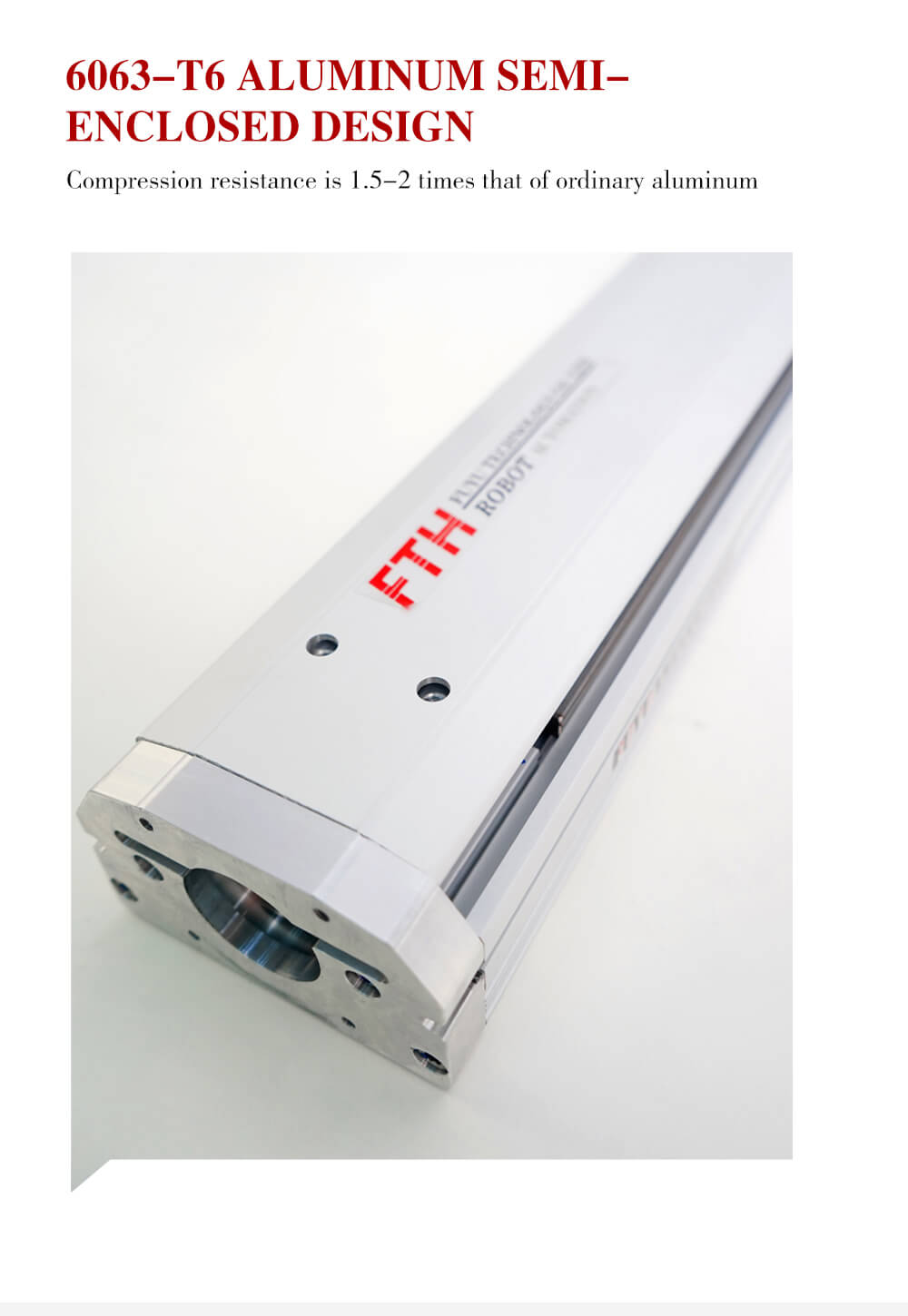

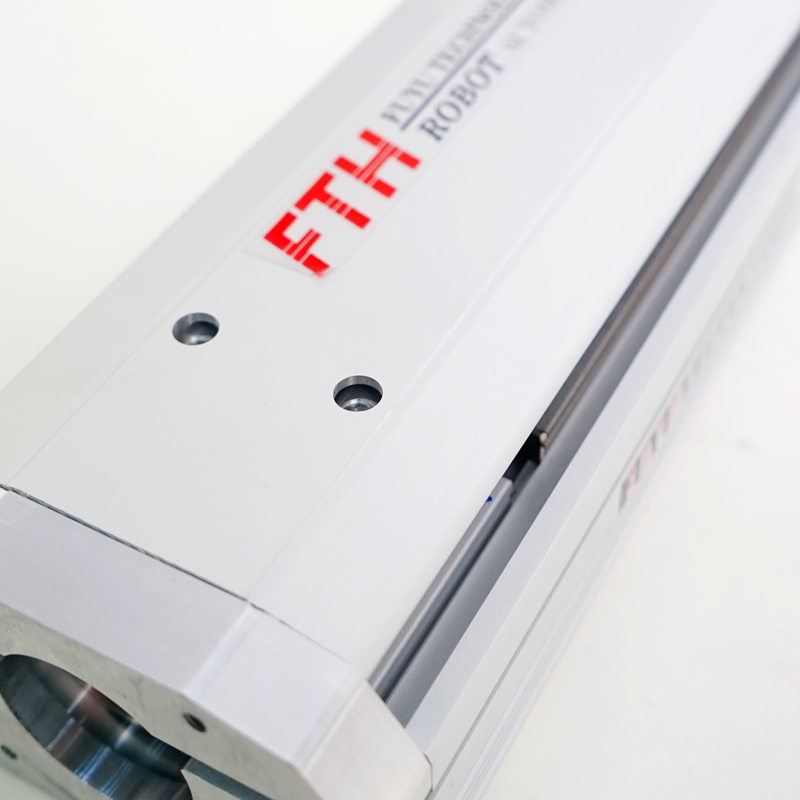

6063-T6 ALUMINUMSEMI-ENCLOSEDDESIGN
Compression resistance is 1.5-2 times that of ordinary aluminum

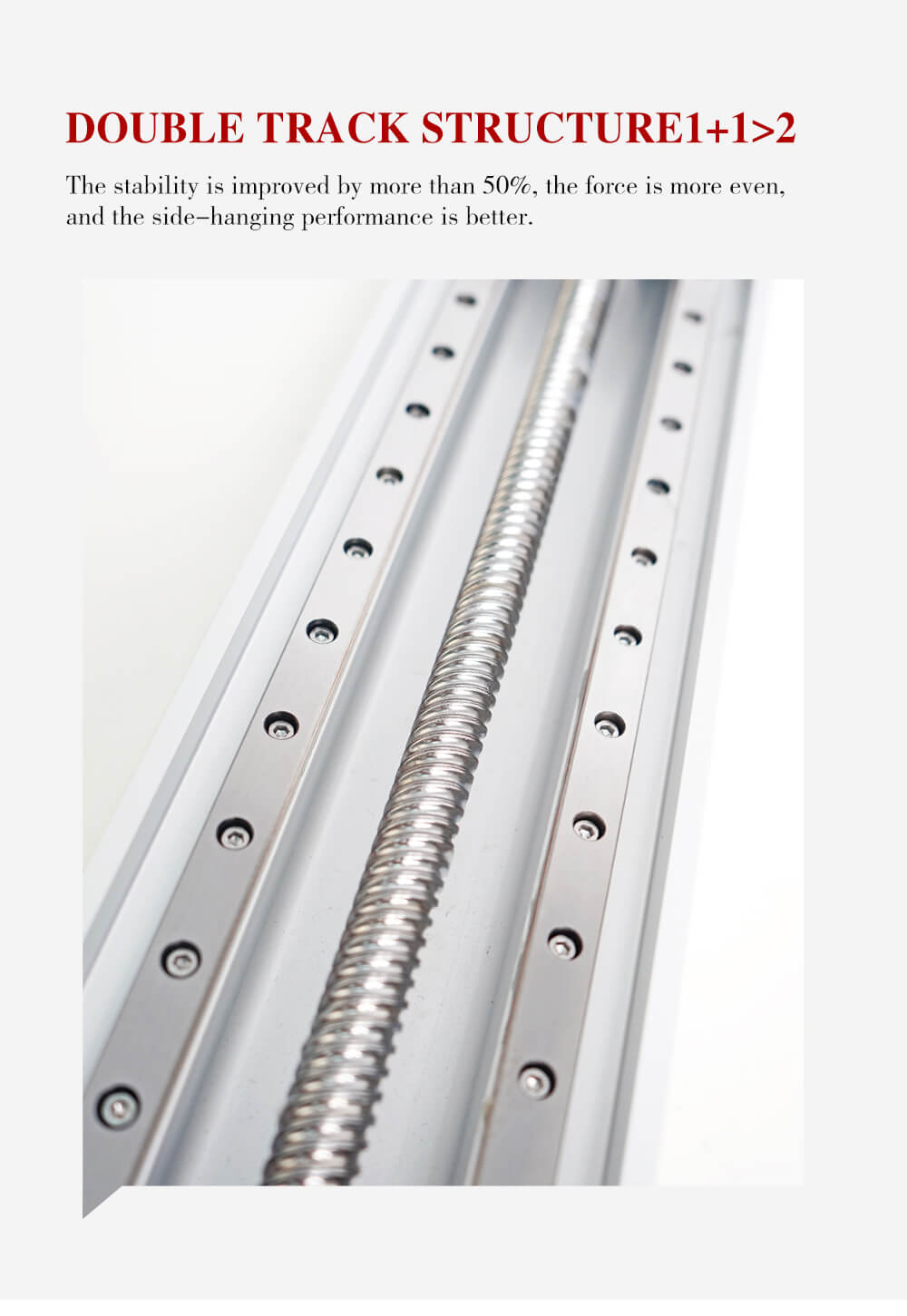

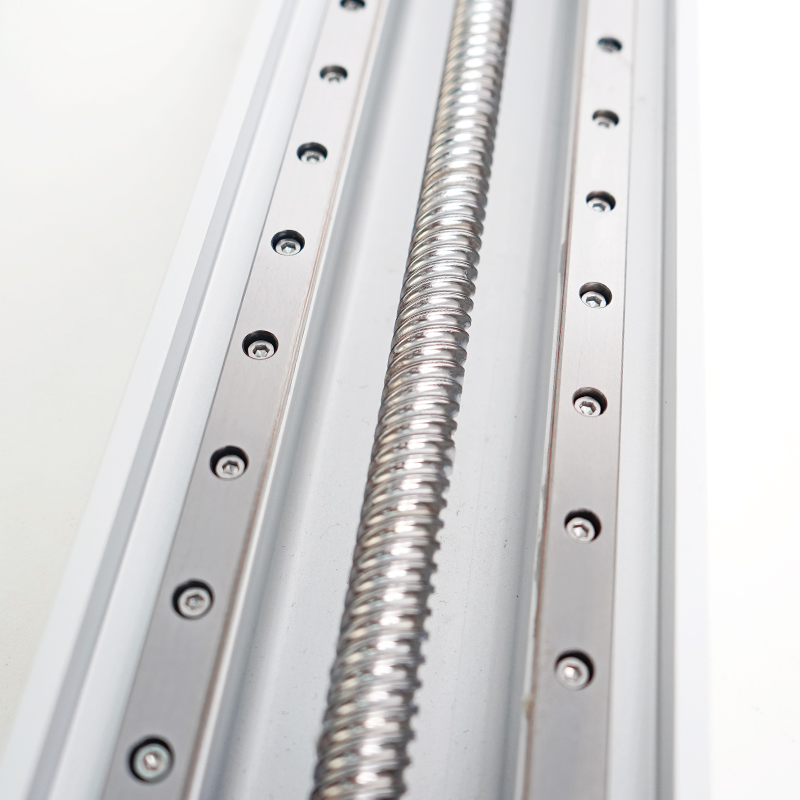

DOUBLE TRACK STRUCTURE1+1>2
The stability is improved by more than 50%, the force is more even,and the side-hanging performance is better.

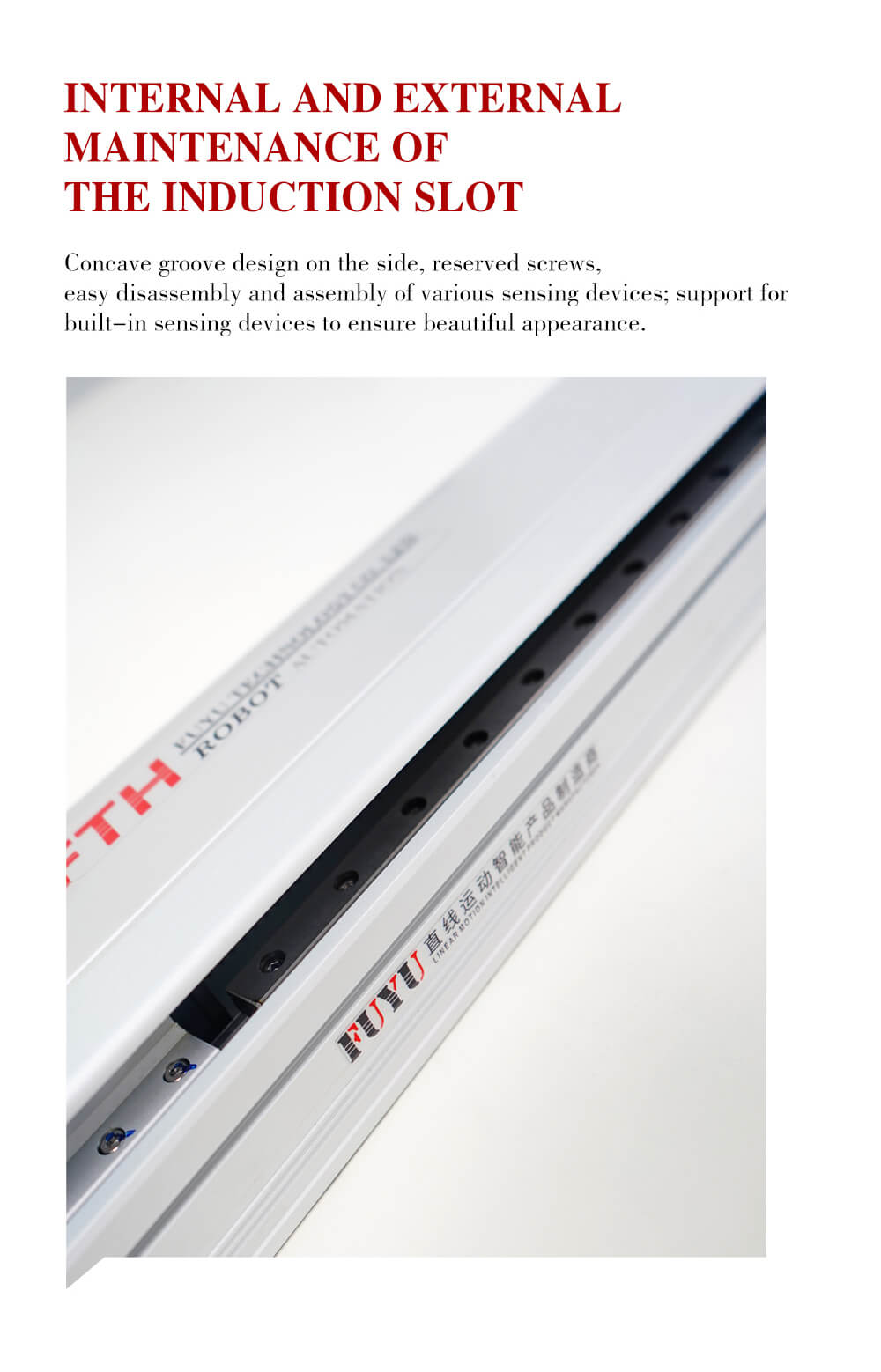

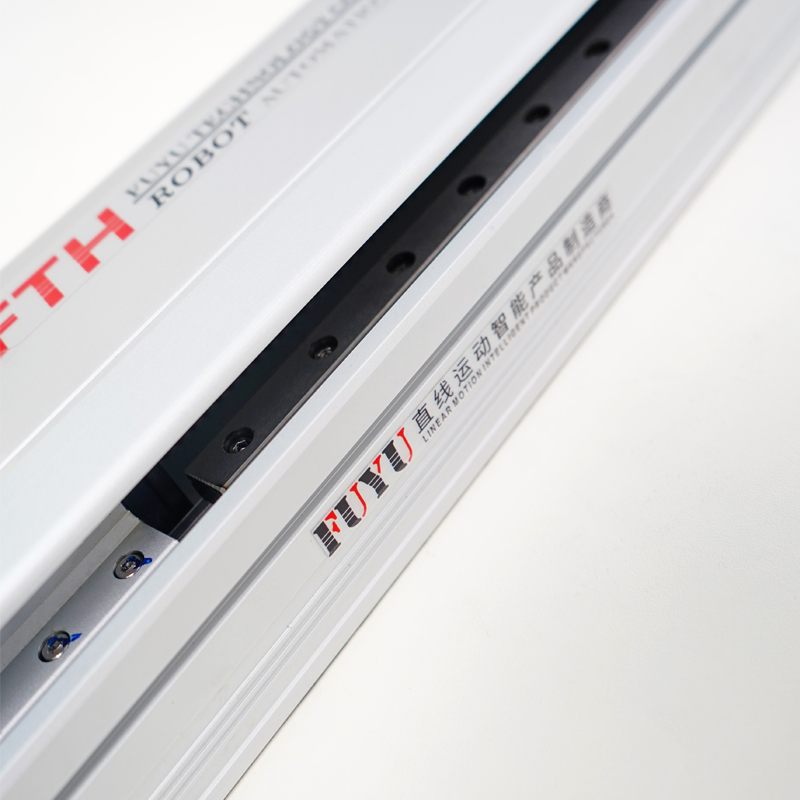

INTERNAL ANDEXTERNAL MAINTENANCE OF THEINDUCTIONSLOT
Concave groove design on the side, reserved screws, easy disassembly and assembly of various sensing devices; support for built-in sensing devices to ensure beautiful appearance.

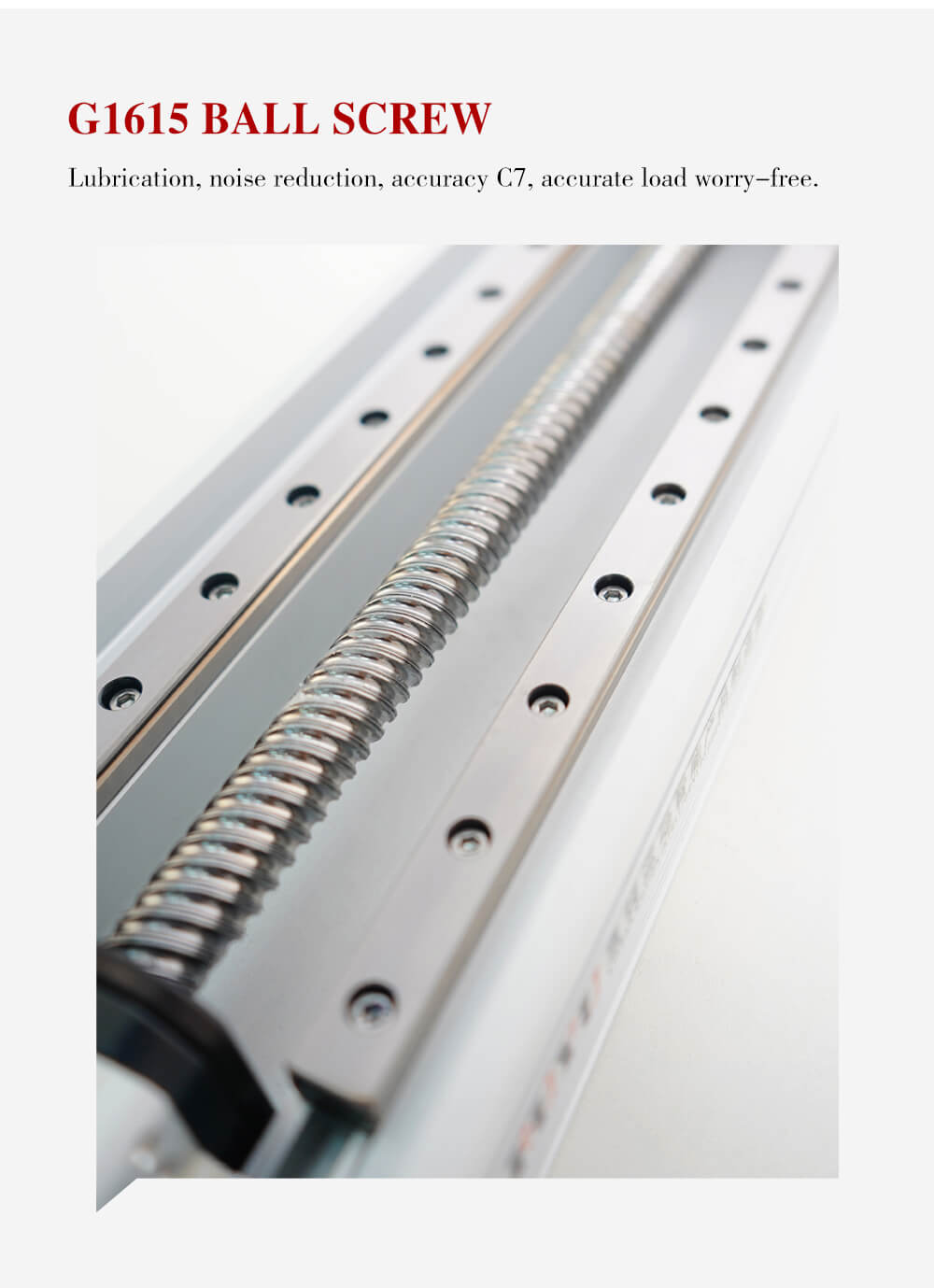

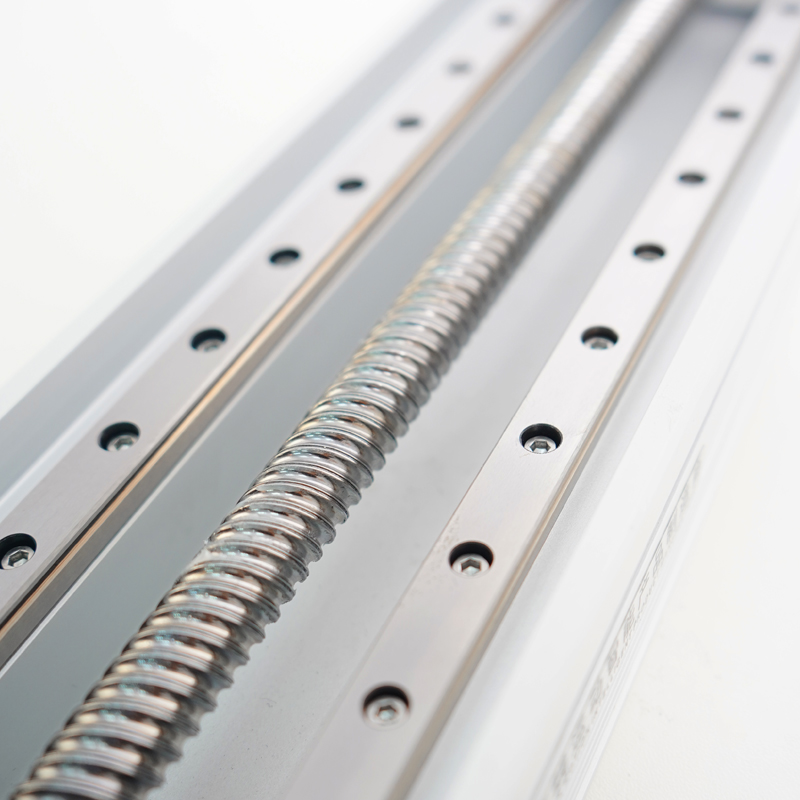

G1615 BALLSCREW
Lubrication, noise reduction, accuracy C7, accurate load worry-free.
