Heavy Duty Cartesian Robot Ball Screw Linear Positioning Stage for Laboratory Detection

Short Description:

Technical Feature

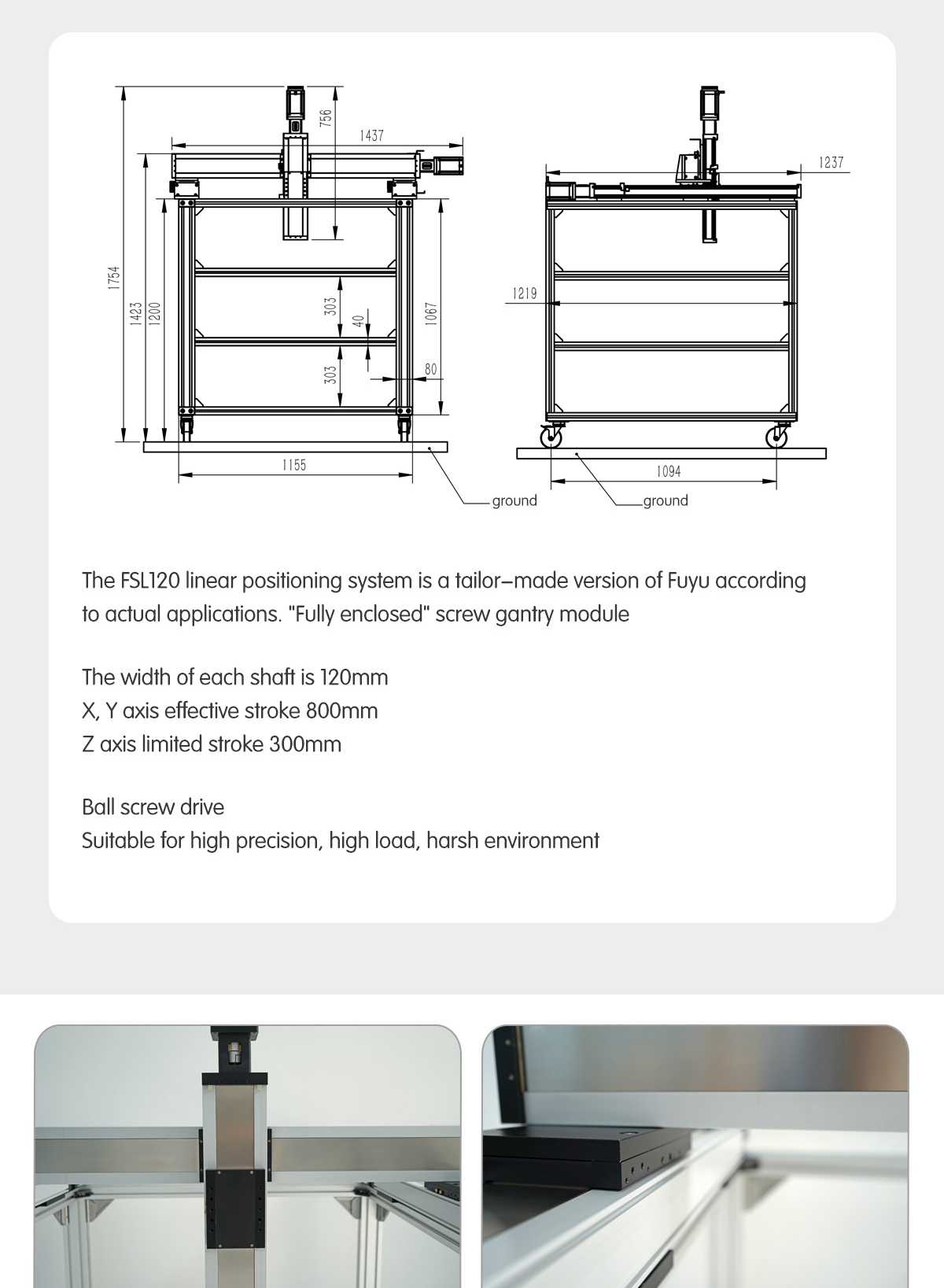

FSL120 linear module, fully enclosed structure, body width 120mm, two guides and four sliders, with high precision, multi-segment repeat positioning, compact structure, strong versatility, suitable for use in special environments.

Range of Application

It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dustfree workshops or special fields such as electronics and medical equipment, such as film, Depreciation, IC printing, CCD on-line inspection, precise positioning detection of soldering automation equipment, laser plus (laser cutting/laser marking/laser engraving/laser drilling, etc.) precision assembly, precision machine tools, semiconductor production equipment, location detection, electronic production equipment , and 3D printing equipment and other fields.

Series: FSL120IS-WB

Stroke Range: 50mm-1500mm

Position Accuracy: 0.02mm

Max Speed: 500mm/s

Max Load: 100kg

Ball Screw: G1610/G2020

Send email to us Download To PDF Play video

Product Detail

Brand Overview

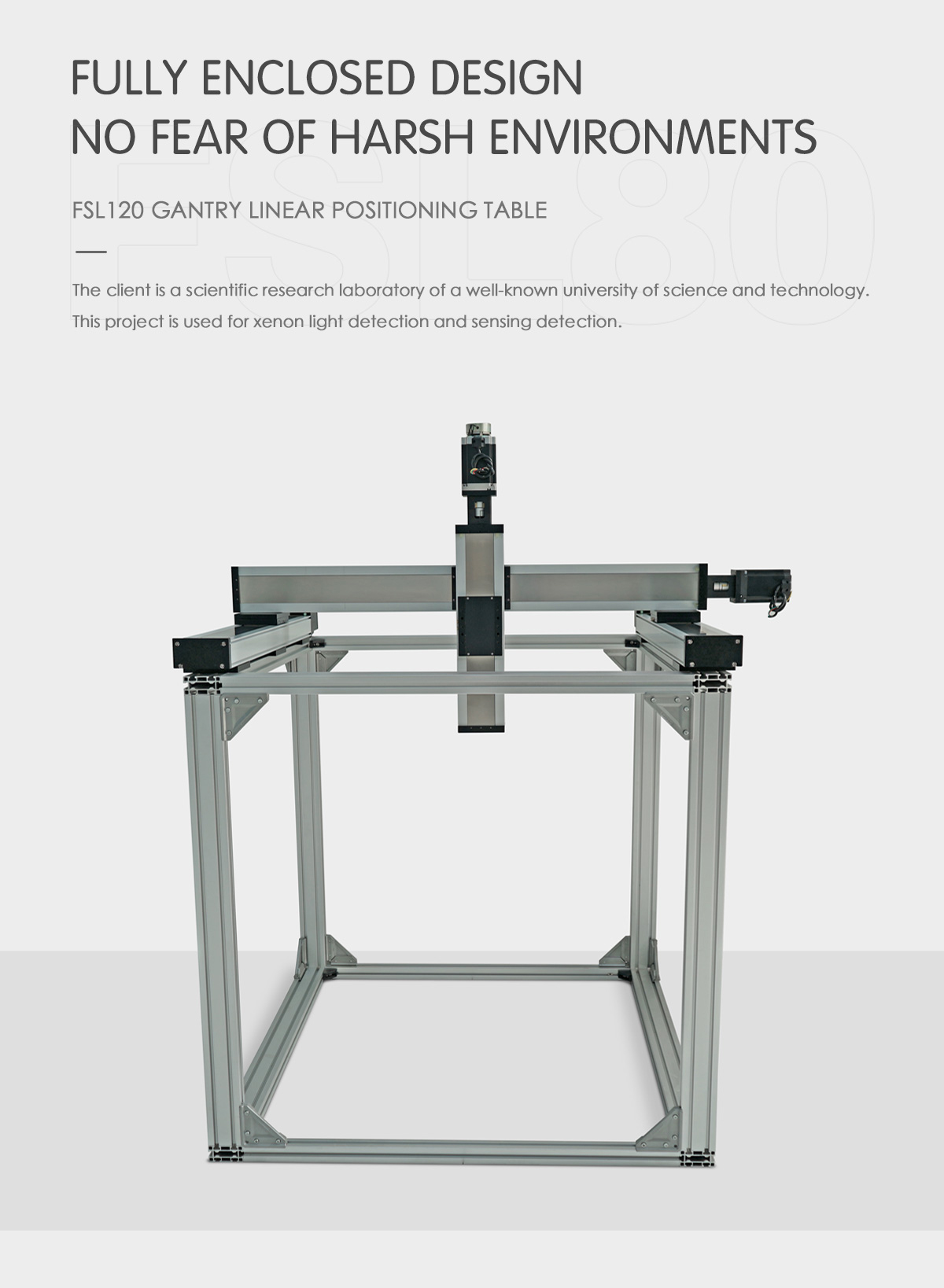

The client is a scientific research laboratory of a well-known university of science and technology. This project is used for xenon light detection and sensing detection.

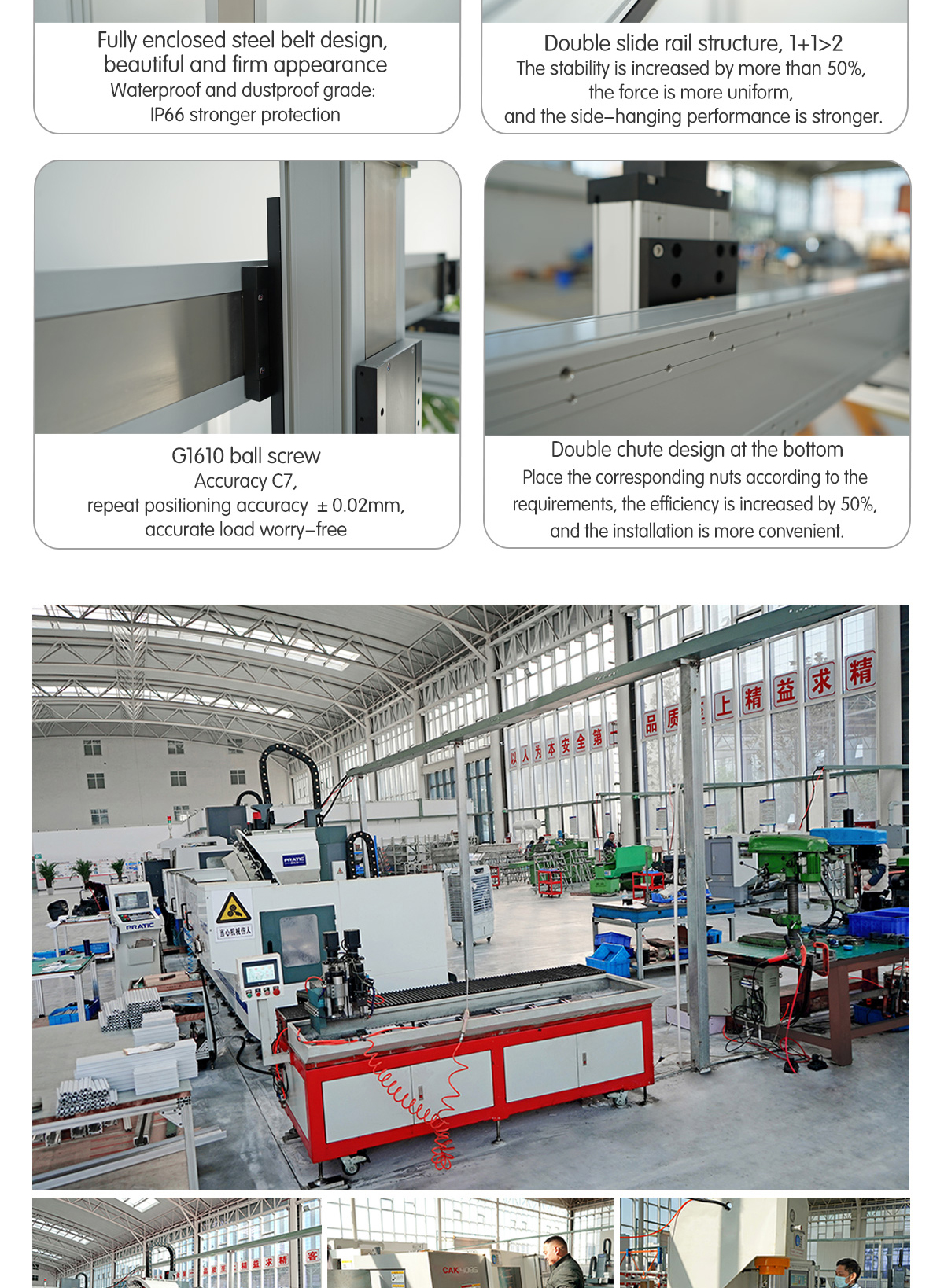

Fully enclosed steel belt design, beautiful and firm appearance, Waterproof and dustproof grade: IP66 stronger protection, Double slide rail structure: 1+1>2, The stability is increased by more than 50%, the force is more uniform and the side-hanging performance is stronger. G1610 ball screw
Accuracy C7, repeat positioning accuracy ± 0.02mm, accurate load worry-free, Double chute design at the bottom
Place the corresponding nuts according to the requirements, the efficiency is increased by 50% and the installation is more convenient.

Previous: Dustproof Heavy Load Linear Positioning Stage for Laser Testing

Next: Dustproof Linear Gantry System High Speed Long Stroke Belt Driven Rail Guide
