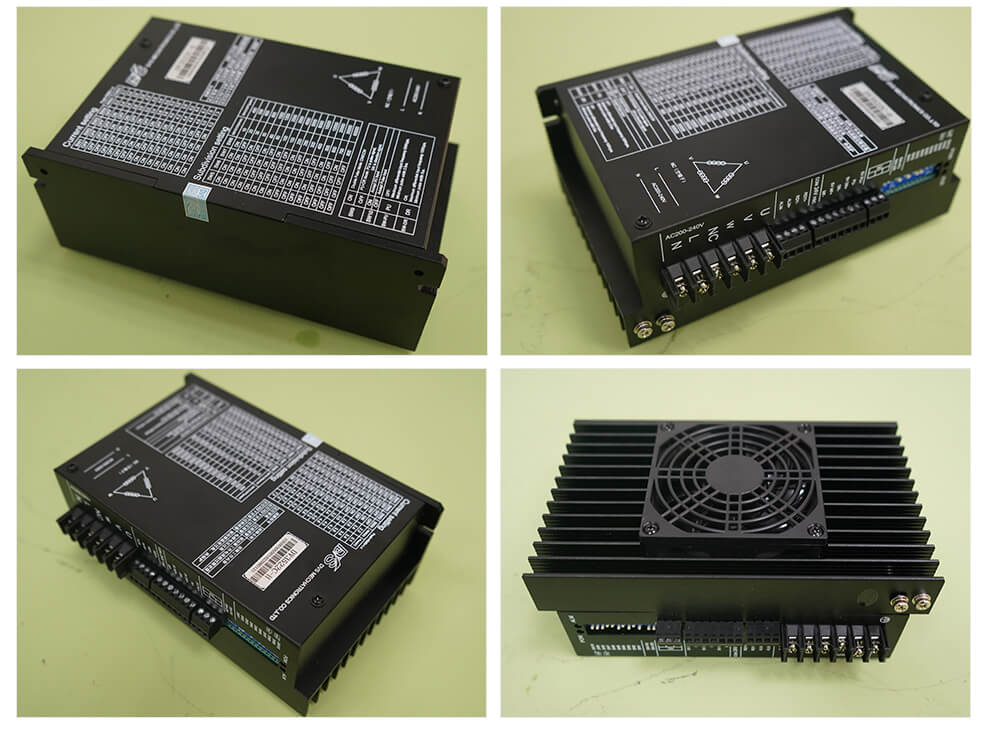

Linear Module Accessory FMDT240A52NOM 3-Phase Stepper Motor Driver

Short Description:

FMDT240A52NOM is a new type of stepper driver successfully developed according tomarket demand and development trends. It uses a new 32-bit dedicated DSP chip formotor control, which makes the motor run more smoothly and is not easy to lose steps.Receive input signal pulses, directions, and enable inputs. When using internal posi-tions, the pulse and direction interfaces can be used for sensor signal input. The heatingdegree and vibration amplitude of the motor are minimized, thereby better improvingthe processing speed and accuracy of mechanical operation.The working voltage isAC200V-AC240V, and the suitable current is below 5.2A for high-voltage 3-phase steppermotors.

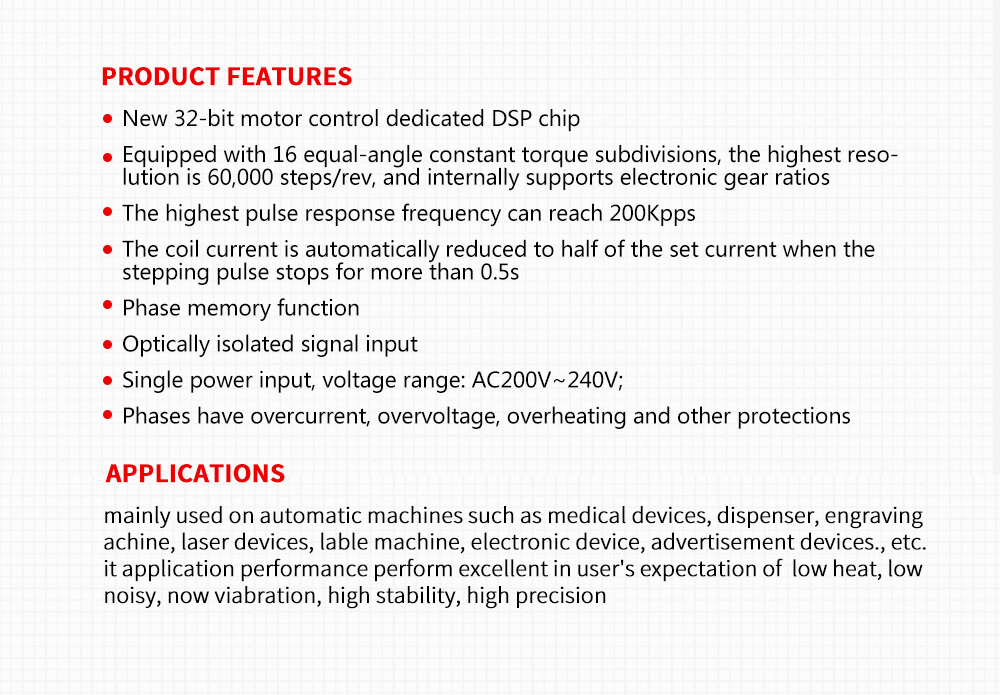

PRODUCT FEATURES
1. New 32-bit motor control dedicated DSP chip
2. Equipped with 16 equal-angle constant torque subdivisions, the highest reso-lution is 60,000 steps/rev, and internally supports electronic gear ratios
3. The highest pulse response frequency can reach 200Kpps
4. The coil current is automatically reduced to half of the set current when thestepping pulse stops for more than 0.5s
5. Phase memory function

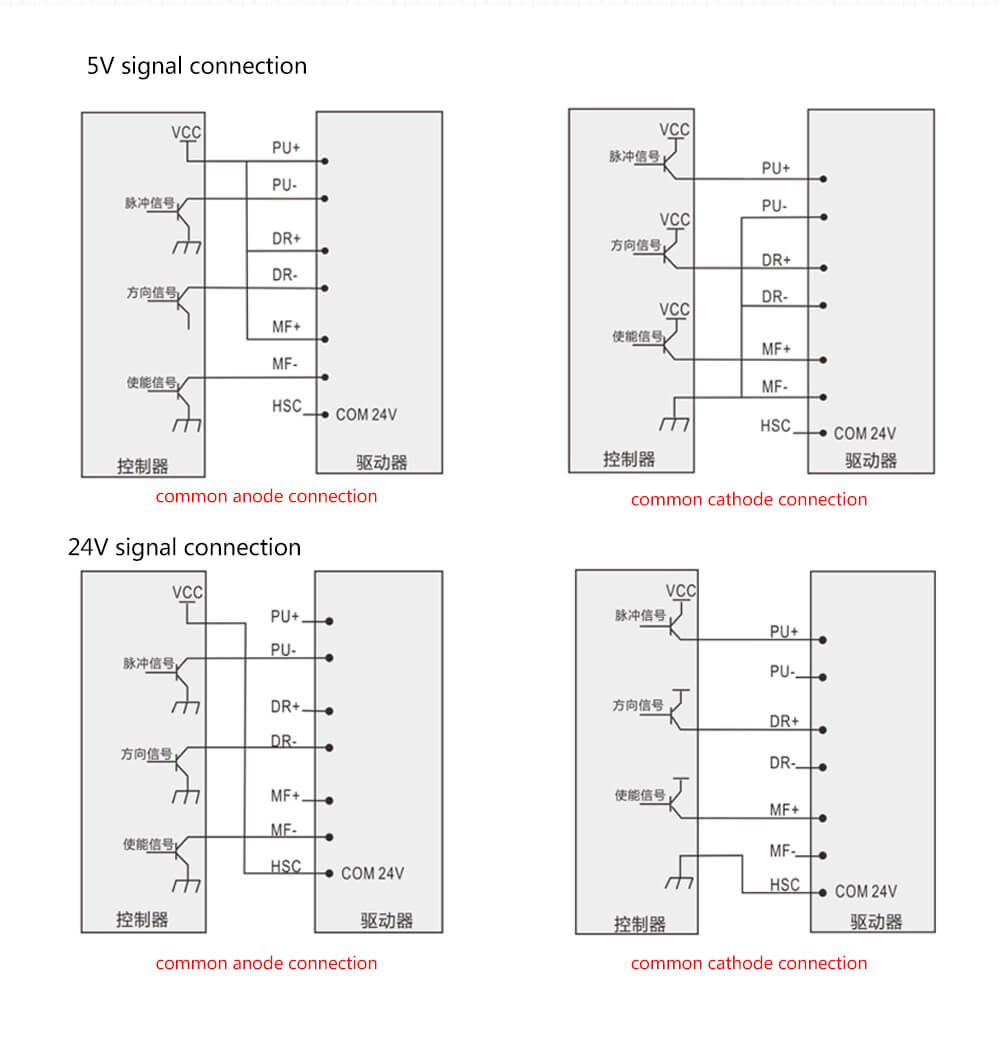

6. Optically isolated signal input
7. Single power input, voltage range:AC200V~240V;
8. Phases have overcurrent, overvoltage, overheating and other protections

APPLICATIONS
Mainly used on automatic machines such as medical devices, dispenser, engravingachine, laser devices, lable machine, electronic device, advertisement devices., etc.it application performance perform excellent in user’s expectation of low heat, lownoisy, now viabration, high stability, high precision
