    3000rpm AC Servo Motor with Brake 3000mm Power Lines Optional Encoder Lines Featured Image
    • 3000rpm AC Servo Motor with Brake 3000mm Power Lines Optional Encoder Lines
    • 3000rpm AC Servo Motor with Brake 3000mm Power Lines Optional Encoder Lines
    • 3000rpm AC Servo Motor with Brake 3000mm Power Lines Optional Encoder Lines
    • 3000rpm AC Servo Motor with Brake 3000mm Power Lines Optional Encoder Lines
    • 3000rpm AC Servo Motor with Brake 3000mm Power Lines Optional Encoder Lines

    3000rpm AC Servo Motor with Brake 3000mm Power Lines Optional Encoder Lines

    Short Description:

    60/80 magnetic braided AC servo motor
    17-bit single-turn absolute encoder

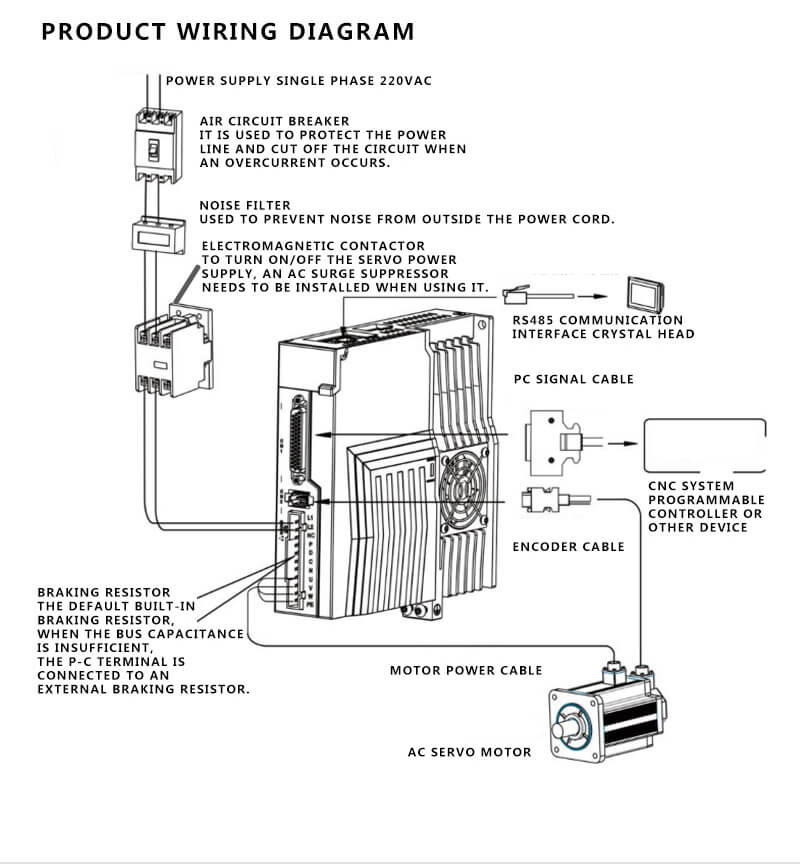

    Air Circuit Breaker
    It is used to protect the power line and cut off the circuit when an overcurrent occurs.
    Noise Filter
    Used to prevent noise from outside the power cord.
    Electromagnetic Contactor
    To turn on/off the servo power supply, an AC surge suppressor needs to be installed when using it.
    Braking Resistor
    The default built-in braking resistor, when the bus capacitance is insufficient, the P-C terminal is connected to an external braking resistor.


  • Series: FYS Series
  • Type: AC Servo Motor
  • Voltage: 220V
  • Rotating Speed: 3000rpm
  • Power: 200W - 1000W
