Grating Linear Motor Gantry Robot XYZ Stage Electric Actuator Magnetic Grid Positioning System

Short Description:

Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification.
Wide Variety of Ready-to-Ship Products
Quantity Discounts Starting at 10 pcs
Custom OEM Solutions
Programming Services

If need OEM or Custom Design, please tell us your project design parameters:
1. Which type of Linear Motion do you want, Belt Driven or Ball Screw?
2. How long stroke need: X=? Y=? Z=?
3. How much is the Load Capacity and Speed Range?
4. Do you need Motion Controller and other accessory together?

Series: FXZFCH-IS

Repeatability: 0.003mm-0.01mm

Load Capacity: 4kg-120kg

Stroke Range: 50mm-3700mm

Send email to us Play video

Product Detail

Brand Overview

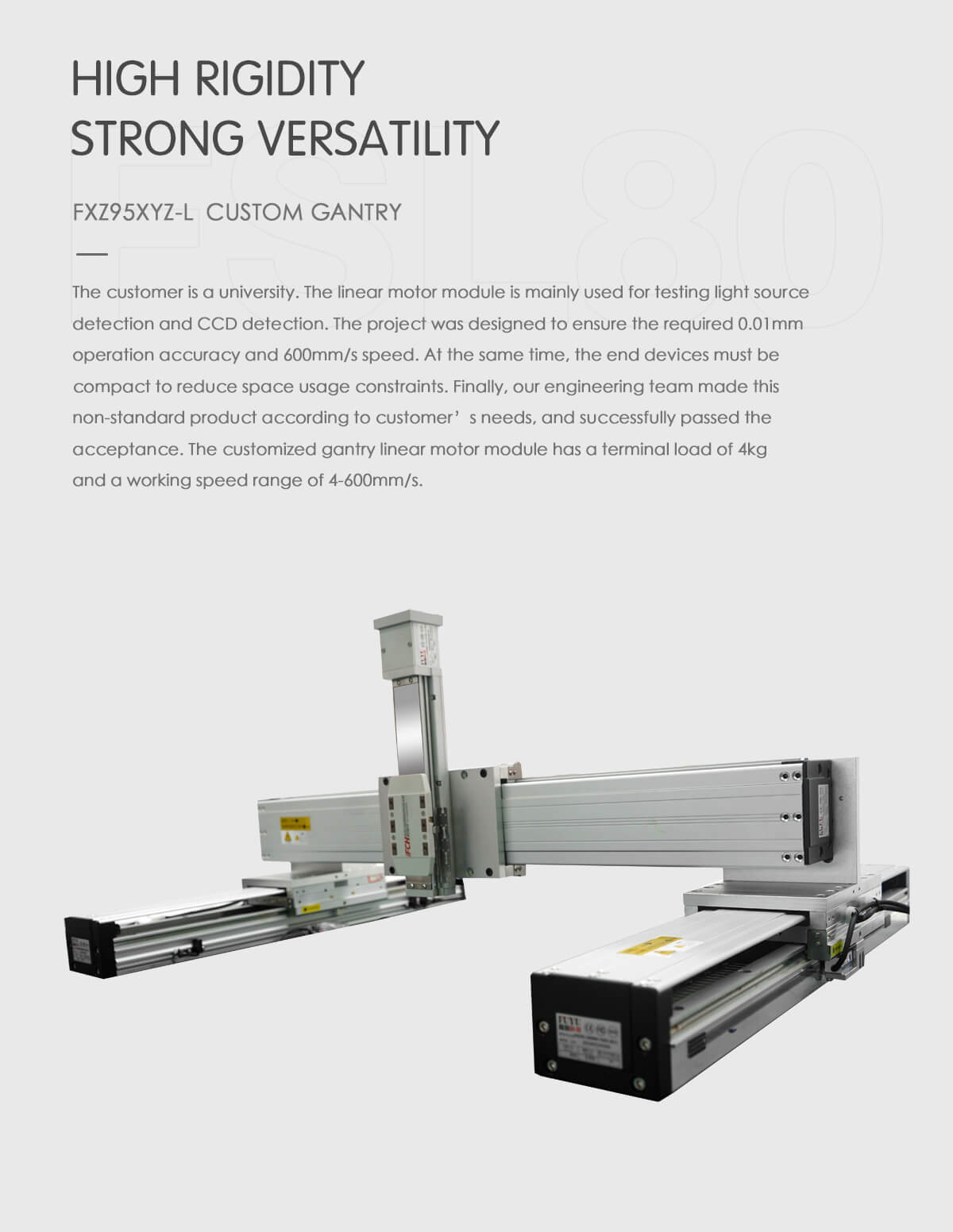

The customer is a university.The linear motor module is mainly used for testing light source detection and CCD detection. The project was designed to ensure the required 0.01mm operation accuracy and 6oomm/s speed. At the same time, the end devices must be compact to reduce space usage constraints. Finally, our engineering team made this non-standard product according to customer' s needs, and successfully passed the acceptance. The customized gantry linear motor module has a terminal load of 4kg and a working speed range of 4-600mm/s.

Previous: Ball Screw Rail Guide Linear Motion XYZ Positioning Stage Gantry Robot

Next: Gantry Positioning Guide Motion System Electric Actuator Linear XYZ Robot

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
