Linear Robot Ball Screw Actuator Z Axis Stage Motorized Guide Dustproof Rail

Short Description:

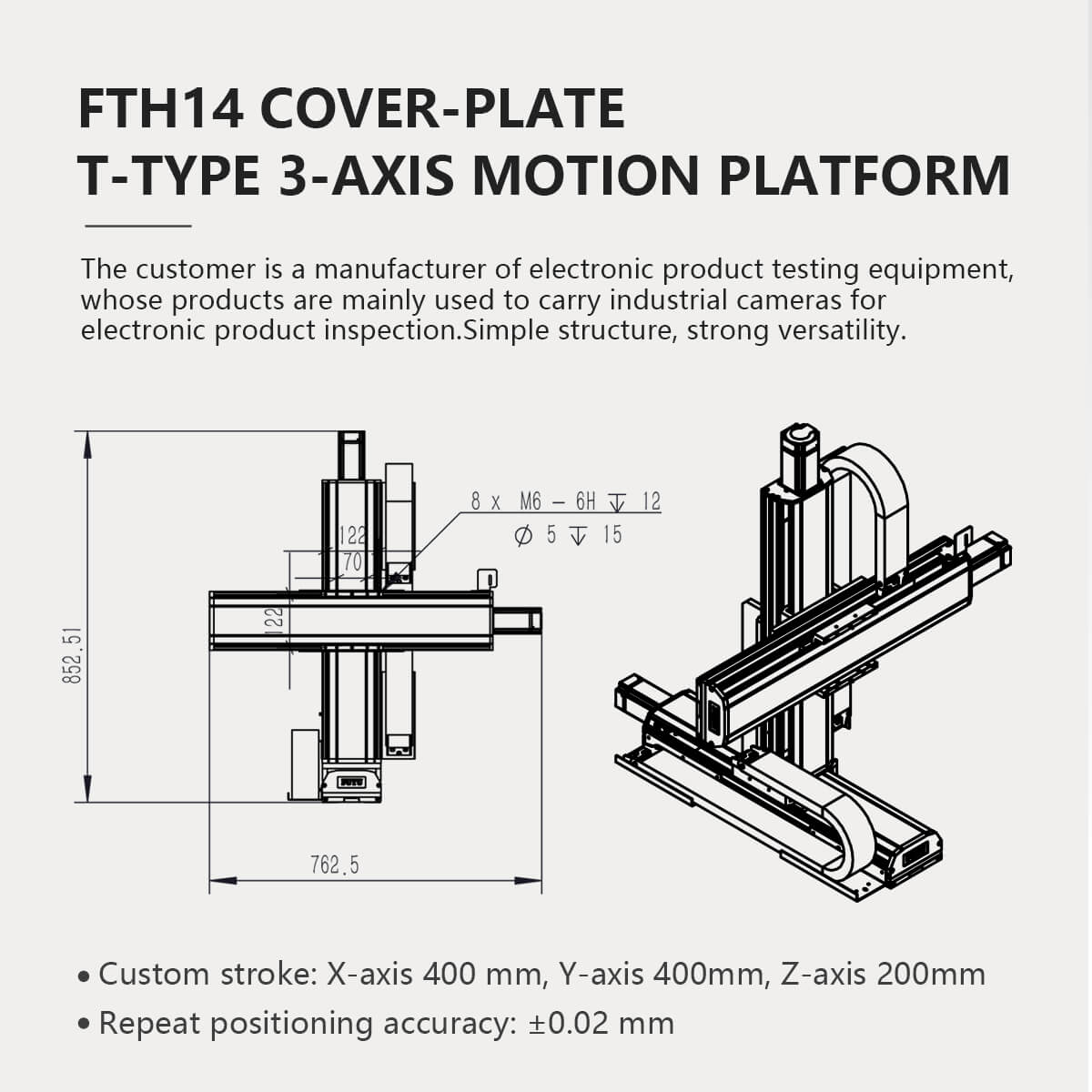

T-TYPE 3-AXIS MOTION PLATFORM
The customer is a manufacturer of electronic product testing equipment, whose products are mainly used to carry industrial cameras for electronic product inspection.Simple structure, strong versatility.

OEM or Custom Design, let’s discuss your project
1. Which type of Linear Motion – Belt Driven or Ball Screw?
2. How long stroke need: X=? Y=? Z=?
3. How much is the Load Capacity and Speed Range?

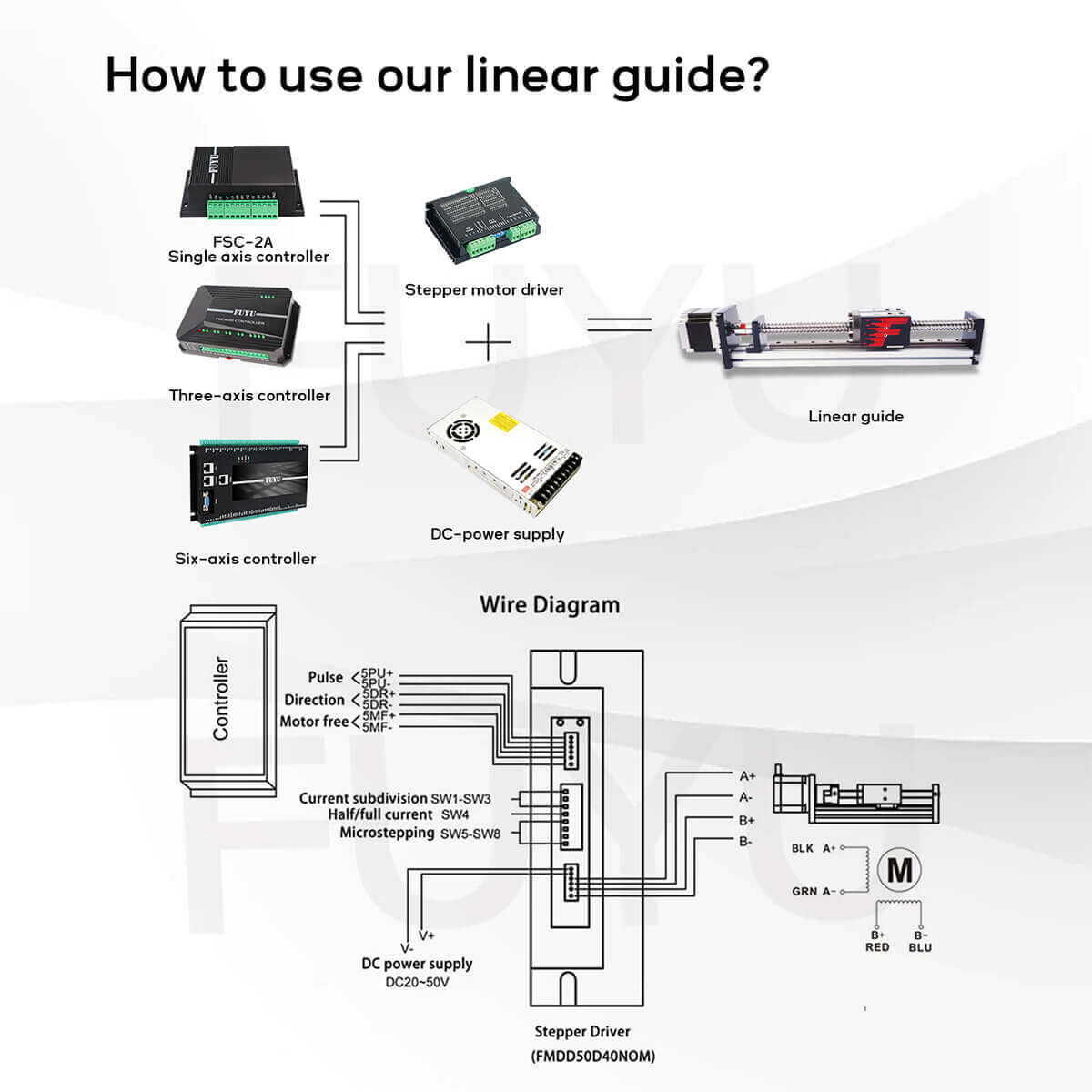

4. Do you need Motion Controller, Driver and Power Supplier?

Series: FTH14XYZ-T

Stroke Range: 50mm-1250mm

Position Accuracy: 0.02mm

Max Speed: 400mm/s

Horizontal Load: 80kg

Vertical Load: 50kg

Send email to us Download To PDF

Product Detail

Brand Overview

The customer is a testing equipment manufacturing company. This product is mainly used for experimental radar detection.ln order to conduct detailed radar detection of images, the linear module needs to operate stably, with position accuracy of ±0.02mm and load capacity of 1ookg to install the radar.For client requirements, our technical team design the following structures.

Previous: Multi-axis Stage Ball Screw Actuator XYZ Guide Dustproof Rail Linear Motion System

Next: Motorized Table Linear Motion Stage Ball Screw Actuator Vertical and Horizontal Positioning Guide System

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
