    Motorized Table Belt Driven Actuator Dustproof Rail Guide XY Positioning Stage

    Short Description:

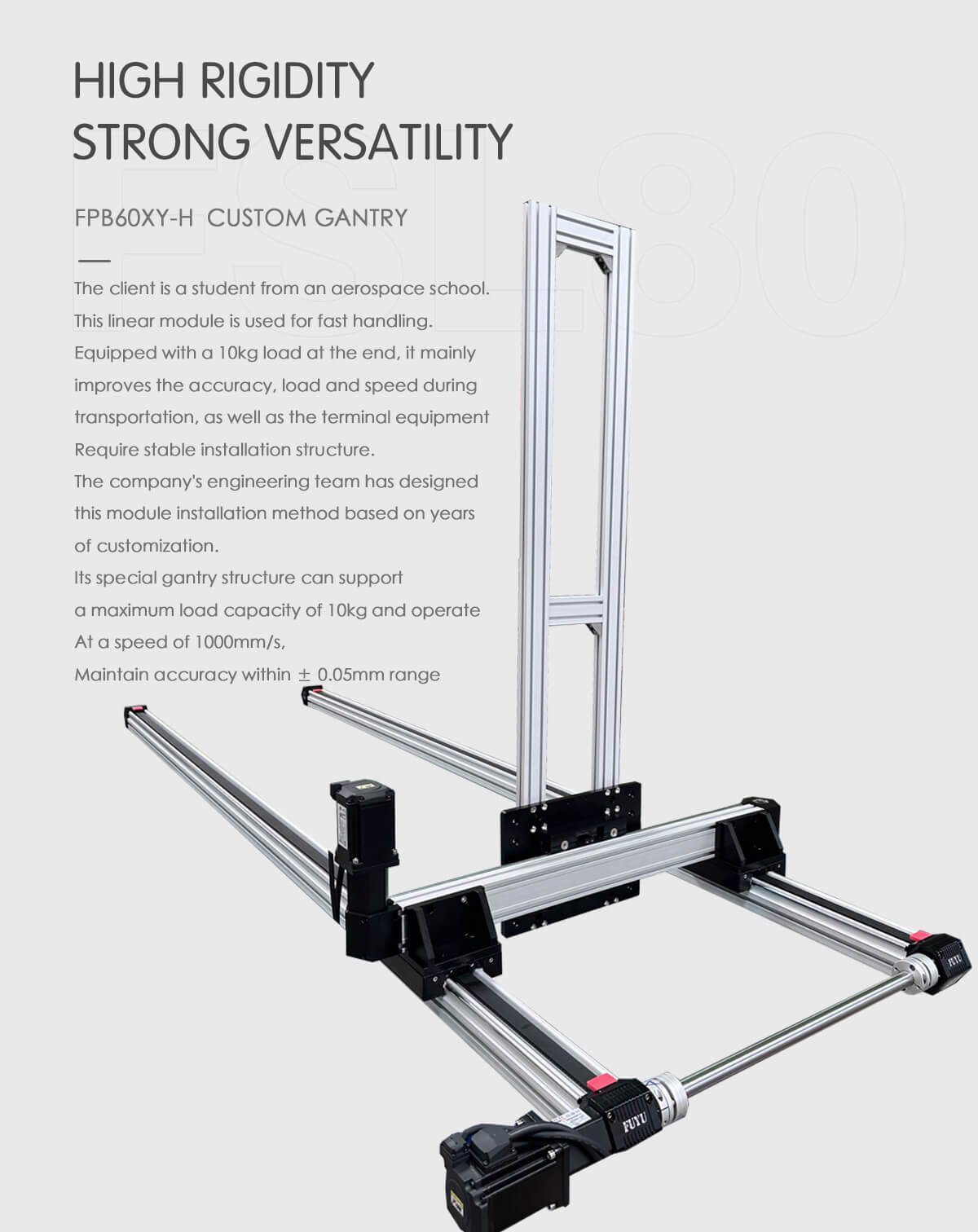

    The client is a student from an aerospace school. This linear module is used for fast handling application.

    The machine support  10kg load capacity at the end, it mainly improves the accuracy and speed during transportation, the terminal equipment requires a stable installation structure design.

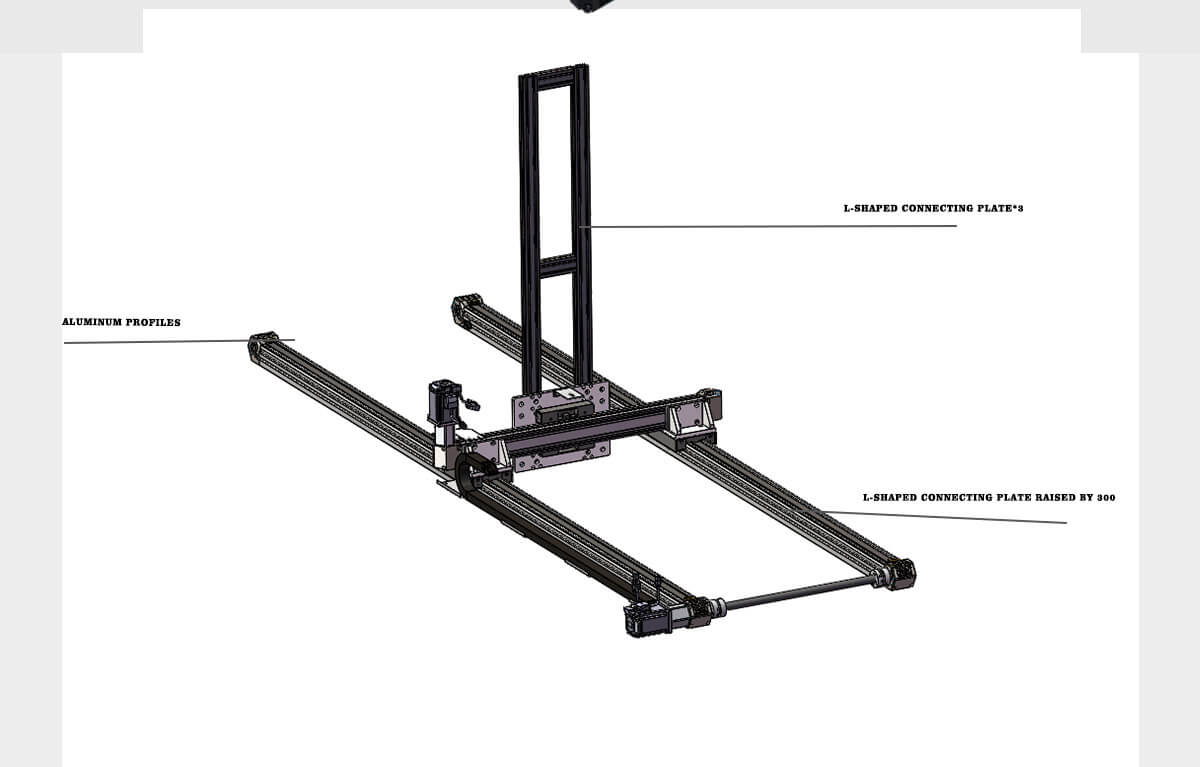

    The company’s engineering team has developed this workbench installation method based on years of customization. Its special gantry structure can support a speed range of 1000mm/s and maintain position accuracy within ±0.05mm.


  • Series: FPB60IS-GS
  • Stroke Range: 100mm-3500mm
  • Position Accuracy: 0.05mm
  • Max Speed: 2000mm/s
  • Max Load: 35kg

    • Product Detail

    Brand Overview

    Motorized-Table_01 Motorized-Table_02 Motorized-Table_03 Motorized-Table_04 Motorized-Table_05 Motorized-Table_06 Motorized-Table_07https://www.fuyumotion.com/high-speed-series/ https://www.fuyumotion.com/high-precision-series/ https://www.fuyumotion.com/heavy-duty-series/ https://www.fuyumotion.com/long-stroke-series/ https://www.fuyumotion.com/video/Brand PartnersFUYU_Brand

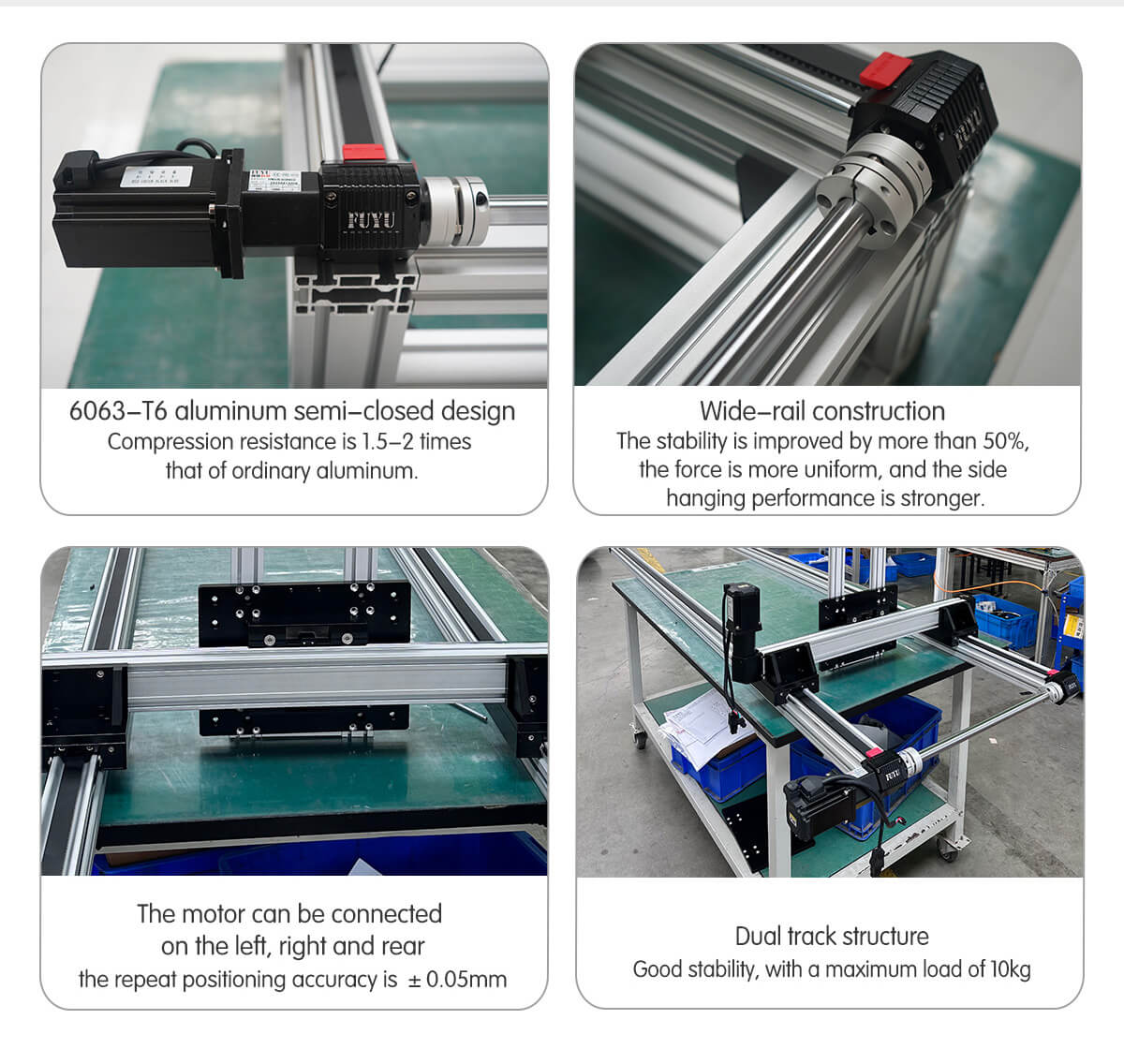

    6063-T6 aluminum semi-closed design
    Compression resistance is 1.5-2 times that of ordinary aluminum.

    Wide-rail construction
    The stability is improved by more than 50%, the force is more uniform, and the side hanging performance is stronger.

    The motor can be connected on the left, right and rear, the repeat positioning accuracy is ± 0.05mm.

    Dual track structure, Good stability with a maximum load of 10kg.
