Multi-axis Stage Ball Screw Actuator XYZ Guide Dustproof Rail Linear Motion System

Short Description:

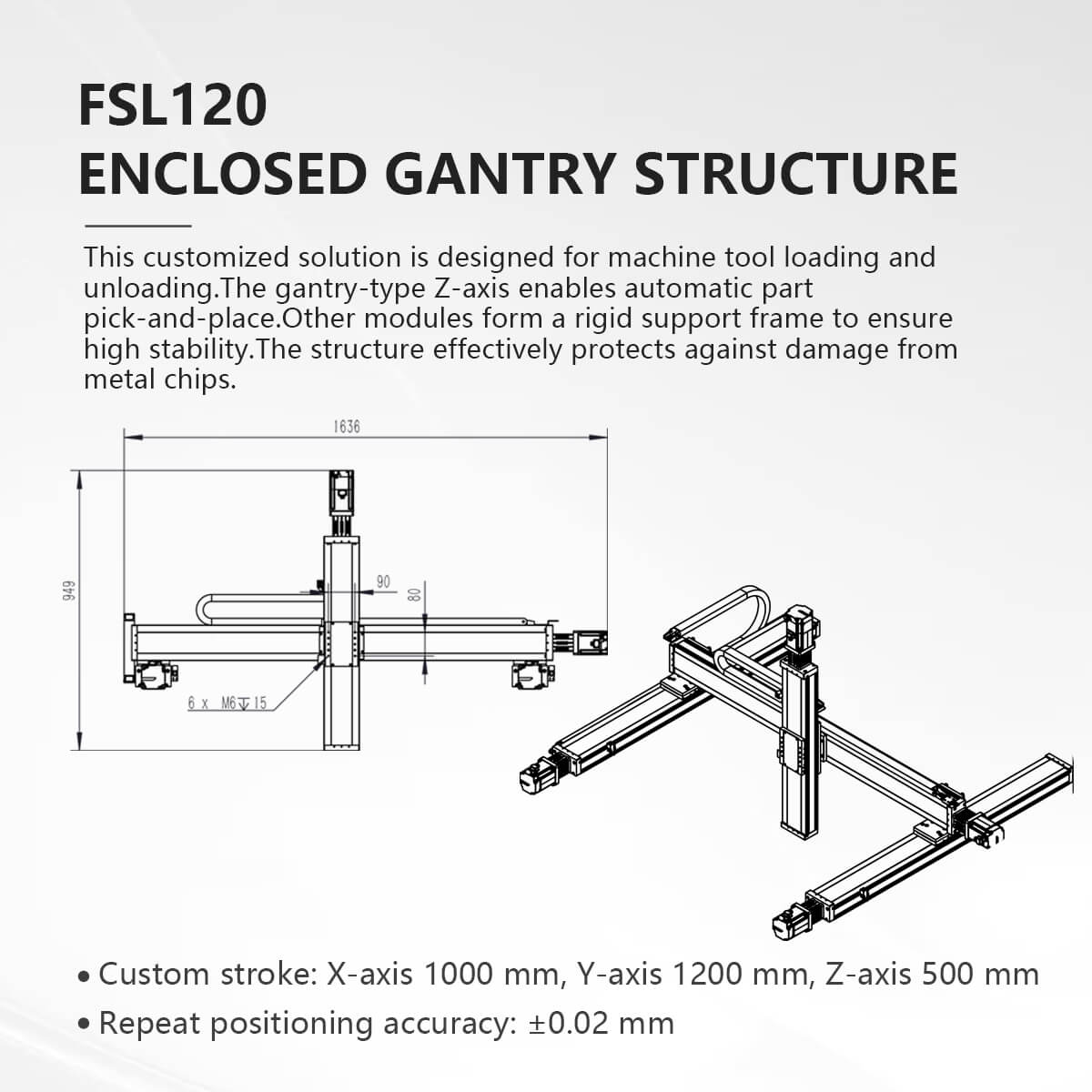

This customized solution is designed for machine tool loading and unloading.The gantry-type Z-axis enables automatic part pick-and-place.Other modules form a rigid support frame to ensure high stability.The structure effectively protects against damage from metal chips.

OEM or Custom Design, let’s discuss your project
1. Which type of Linear Motion – Belt Driven or Ball Screw?
2. How long stroke need: X=? Y=? Z=?
3. How much is the Load Capacity and Speed Range?

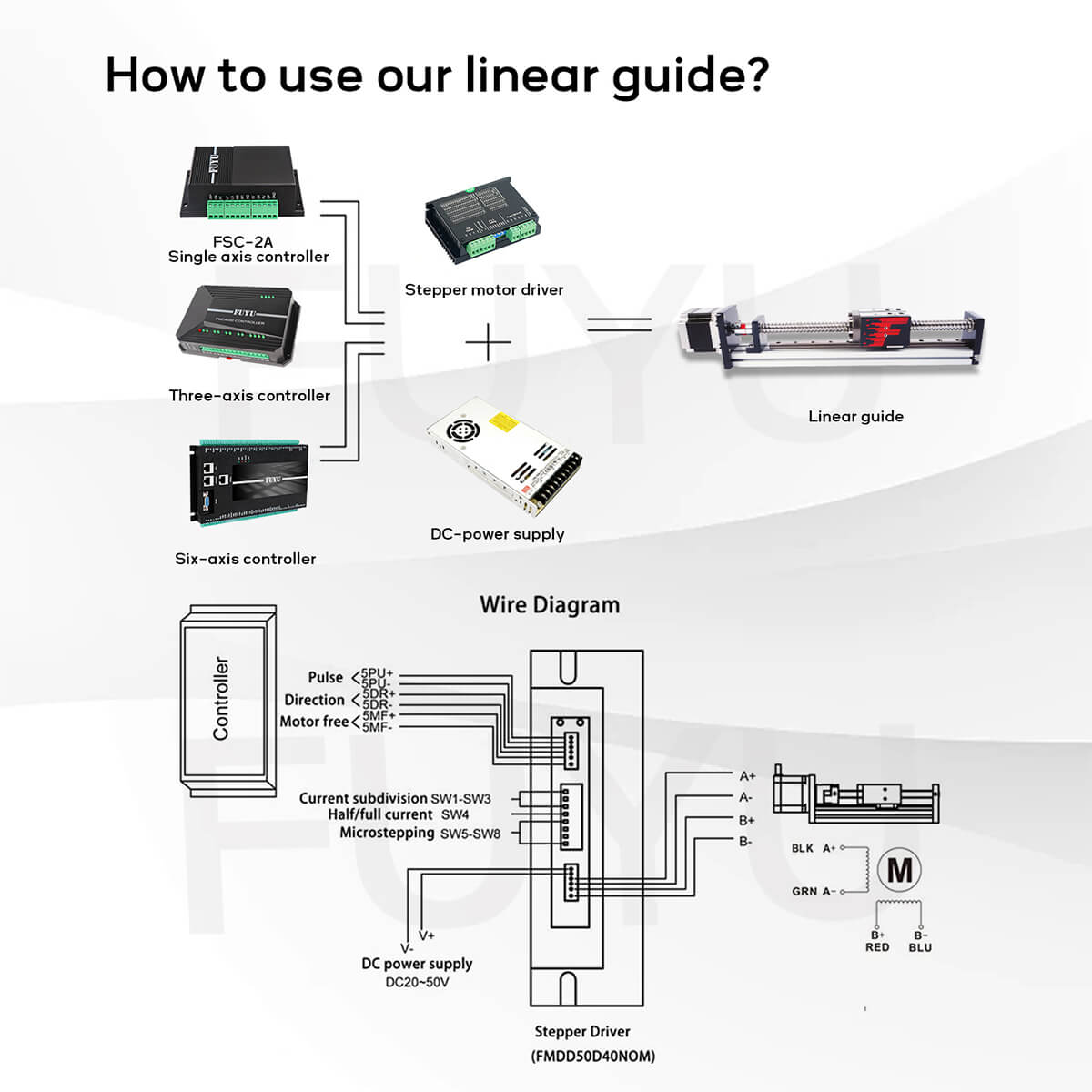

4. Do you need Motion Controller, Driver and Power Supplier?

Series: FSL120IS-L

Stroke Range: 50mm-1500mm

Position Accuracy: 0.02mm

Max Speed: 500mm/s

Max Load: 100kg

Ball Screw: G1610/G2020

Send email to us Download To PDF

Product Detail

Brand Overview

This is our XYZ Stage for Gantry System,
1. How long stroke need: X=? Y=? Z=?
2. How much is the Load Capacity and Speed Range?
3. Do you need Motion Controller together?

Thousands of Industry Solutions / Advanced Engineer Development Concepts / Efficient Construction and Assembly Team
New source, New Price, New Chance.

Previous: Ball Screw Actuator Linear Motion System XYZ Guide Dustproof Rail Multi-axis Stage

Next: Linear Robot Ball Screw Actuator Z Axis Stage Motorized Guide Dustproof Rail

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
