Closed Loop Stepper Motor No Step Loss Motorized Guide Dustproof Rail Ball Screw Linear Actuator with Driver

Short Description:

Closed loop without step loss

The motor and drive are directly connected as a single unit. The drive can read the feedback from the encoder in real time to adjust the error and has a position out of tolerance alarm function to stop the movement.

Low noise 65 dB

The product operates with low noise. The fully enclosed module produces less noise, greatly improving the comfort of use.

No motor heating

The working temperature of the motor is lower than 40°C. The driver can adjust the current level according to the load and power demand, which improves the instantaneous load capacity and appropriately reduces the energy consumption and heat generation.

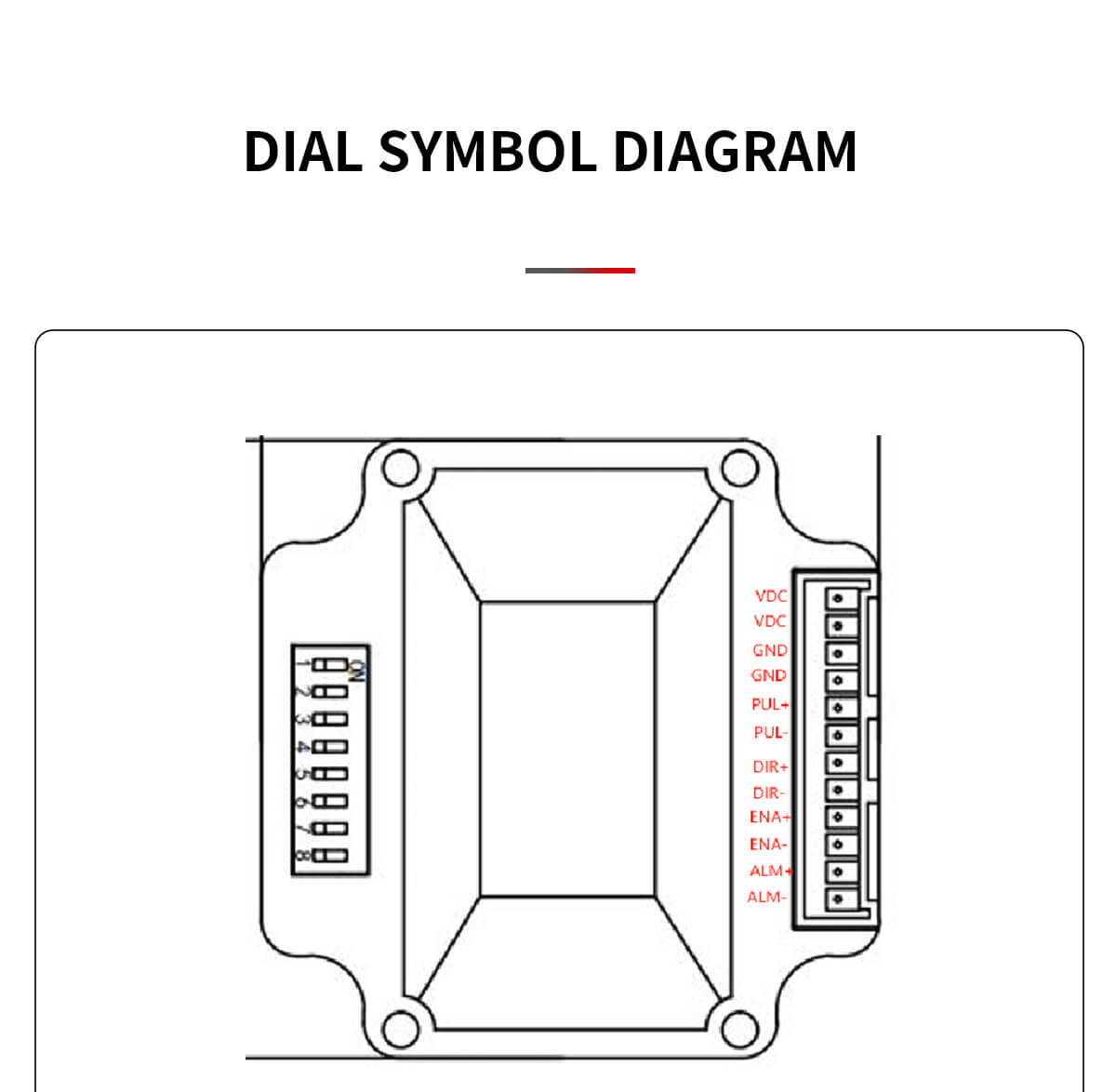

Simple wiring

The drive and motor are directly connected as a single unit, integrated at the end of the motor and then connected to the controller, making wiring simple and efficient.

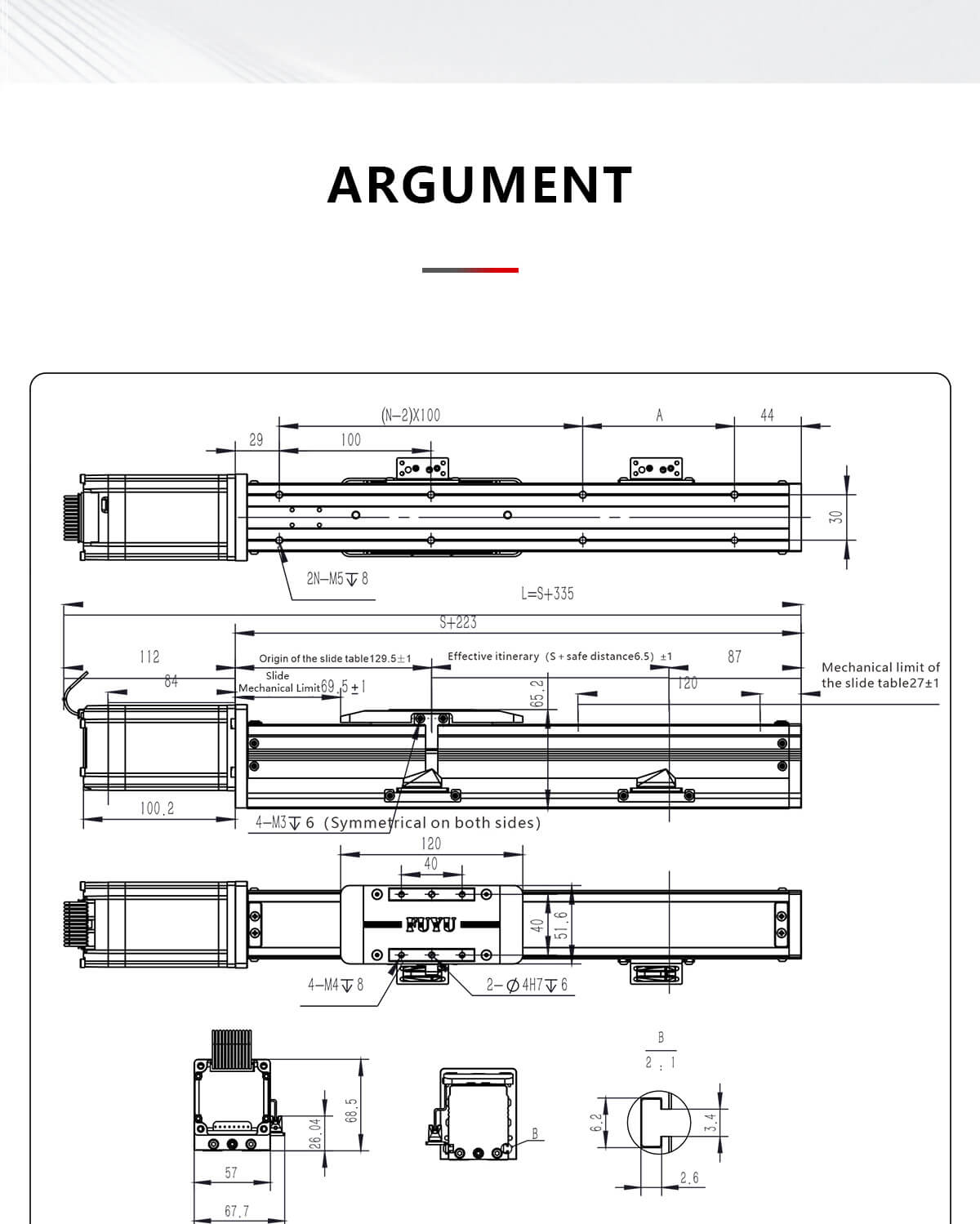

Series: FSL45

Stroke Range: 1000mm

Position Accuracy: 0.02mm

Max Speed: 400mm/s

Max Load: 20kg

Ballscrew Diameter: 16mm

Send email to us Download To PDF Play video

Product Detail

Brand Overview

PRODUCT FEATURES

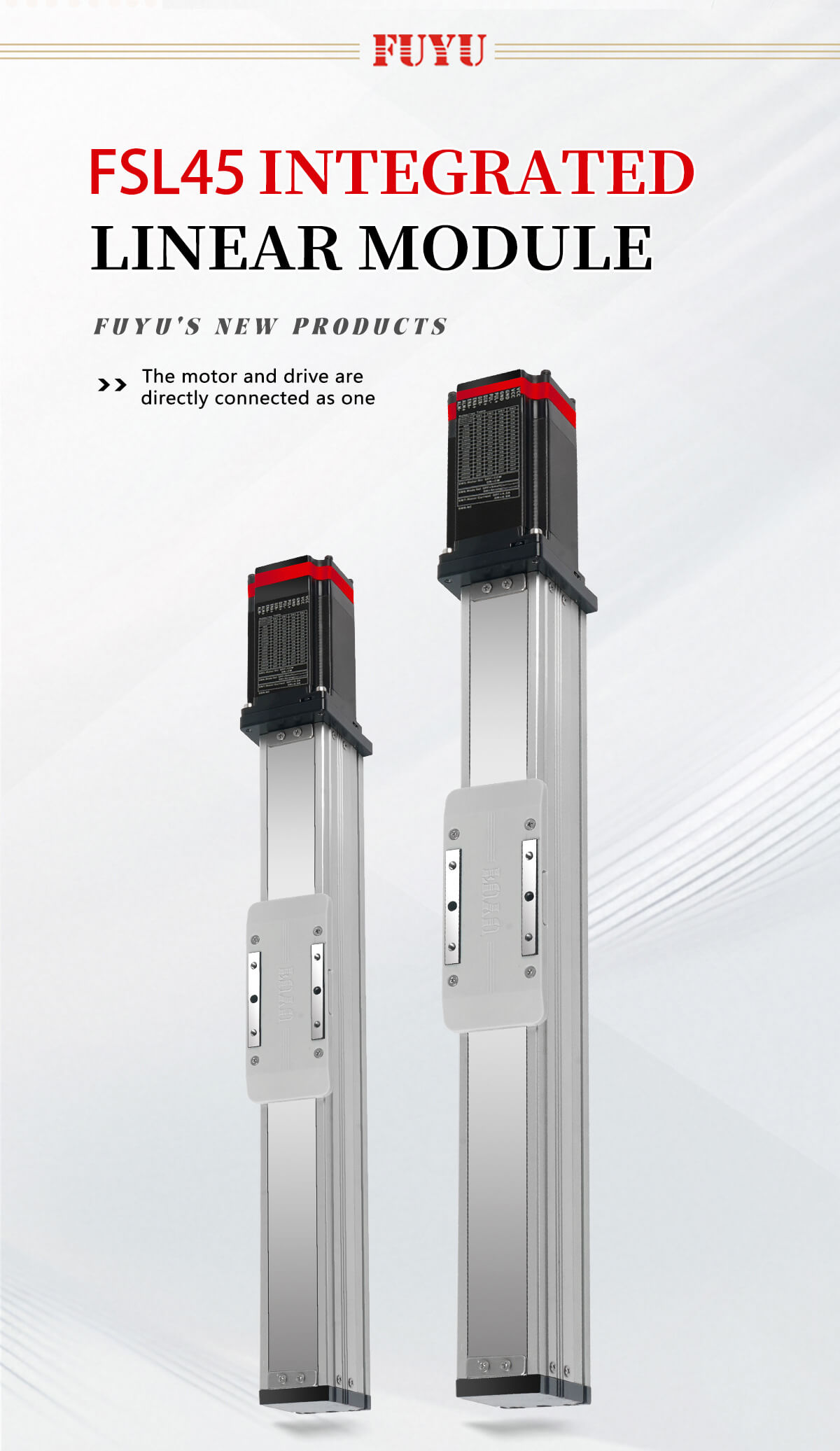

The product integrates four core components: guide rails, lead screws, stepper motors and drivers, and adopts a modular design concept to achieve a "four-in-one" integration.

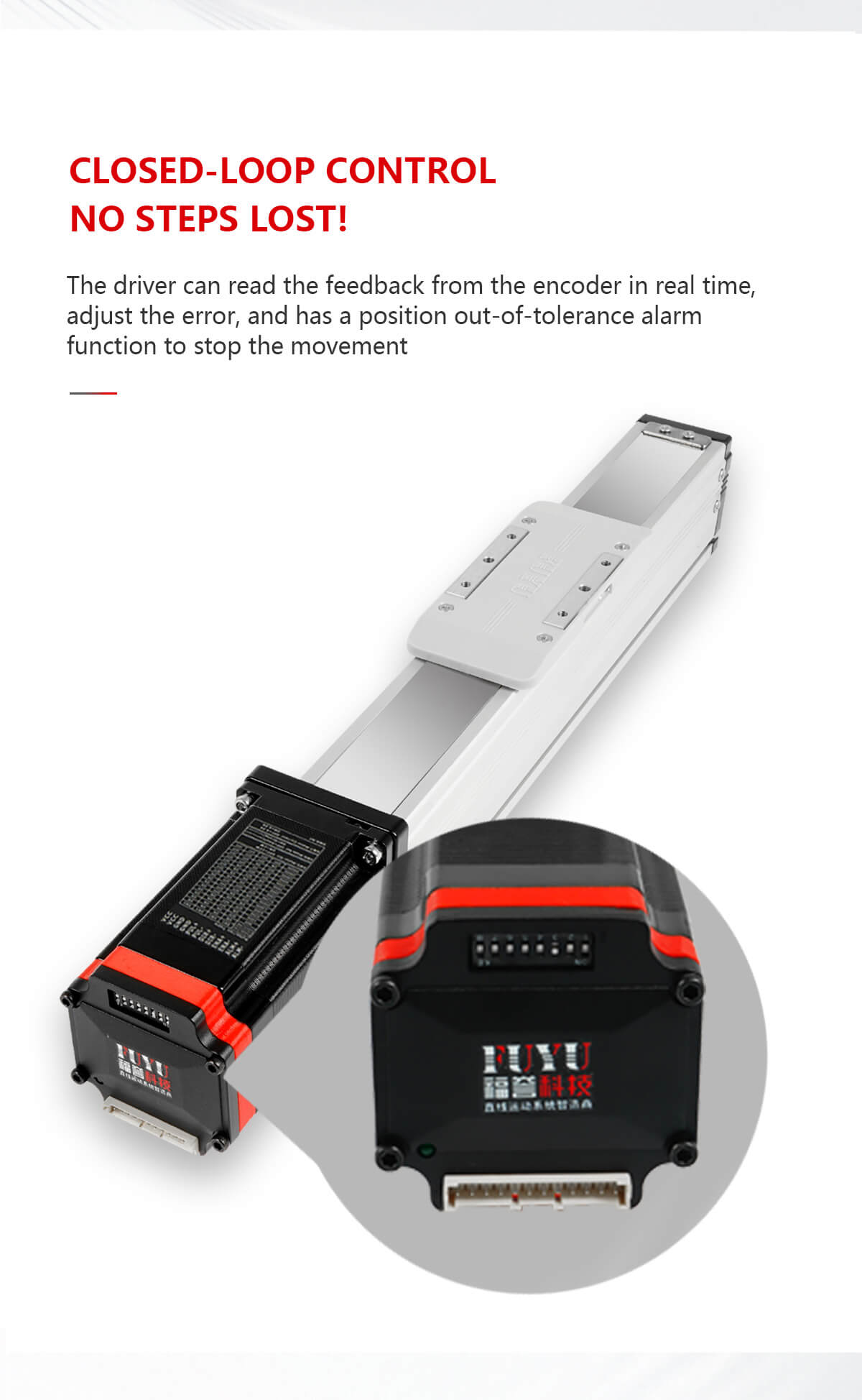

CLOSED-LOOP CONTROL NO STEPS LOST
The driver can read the feedback from the encoder in real time, adjust the error, and has a position out-of-tolerance alarm function to stop the movement.

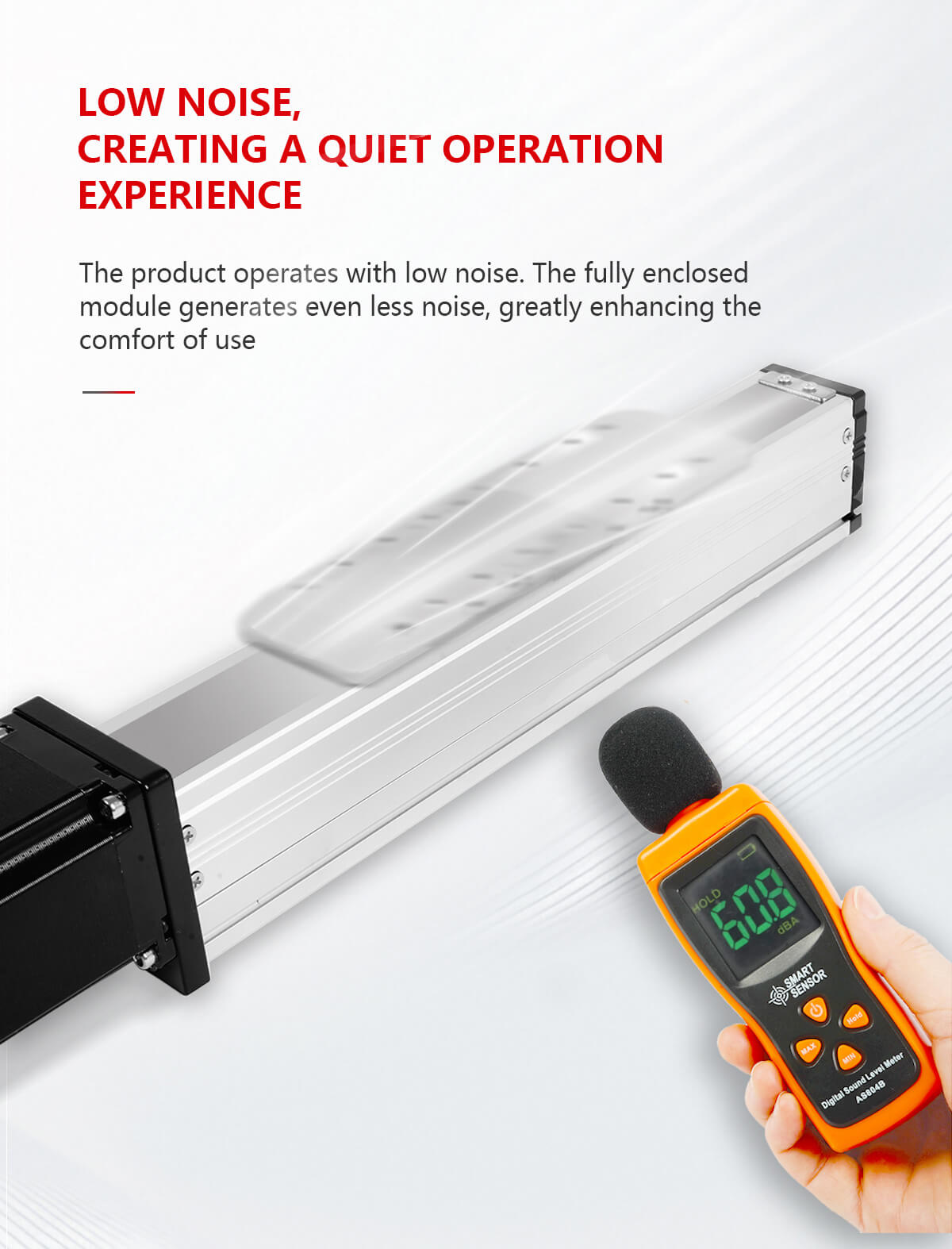

LOW NOISE，CREATING A QUIET OPERATION EXPERIENCE
The product operates with low noise. The fully enclosed module generates even less noise, greatly enhancing the comfort of use.

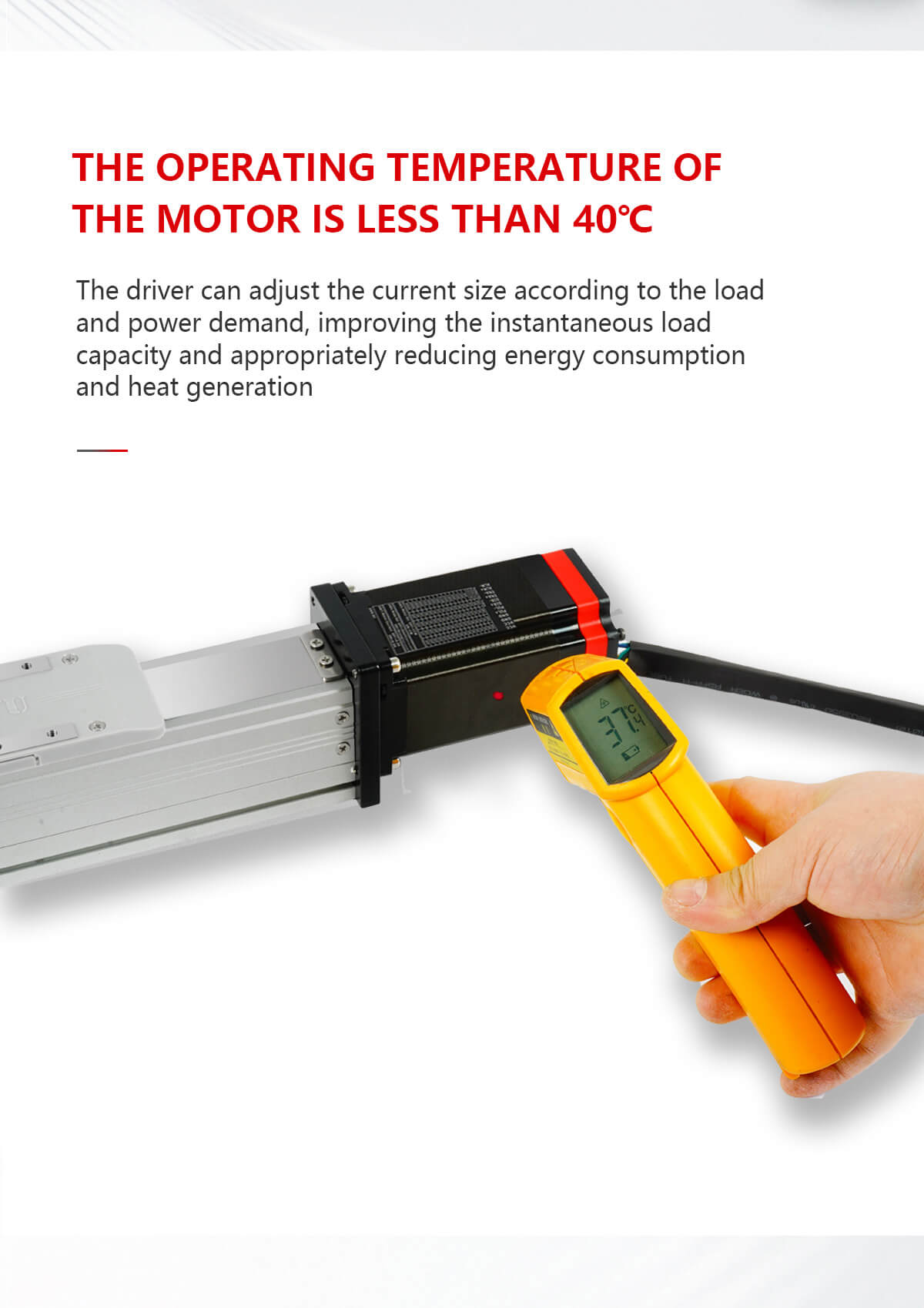

THE OPERATING TEMPERATURE OF THE MOTOR IS LESS THAN 4O℃
The driver can adjust the current size according to the load and power demand, improving the instantaneous load capacity and appropriately reducing energy consumption and heat generation.

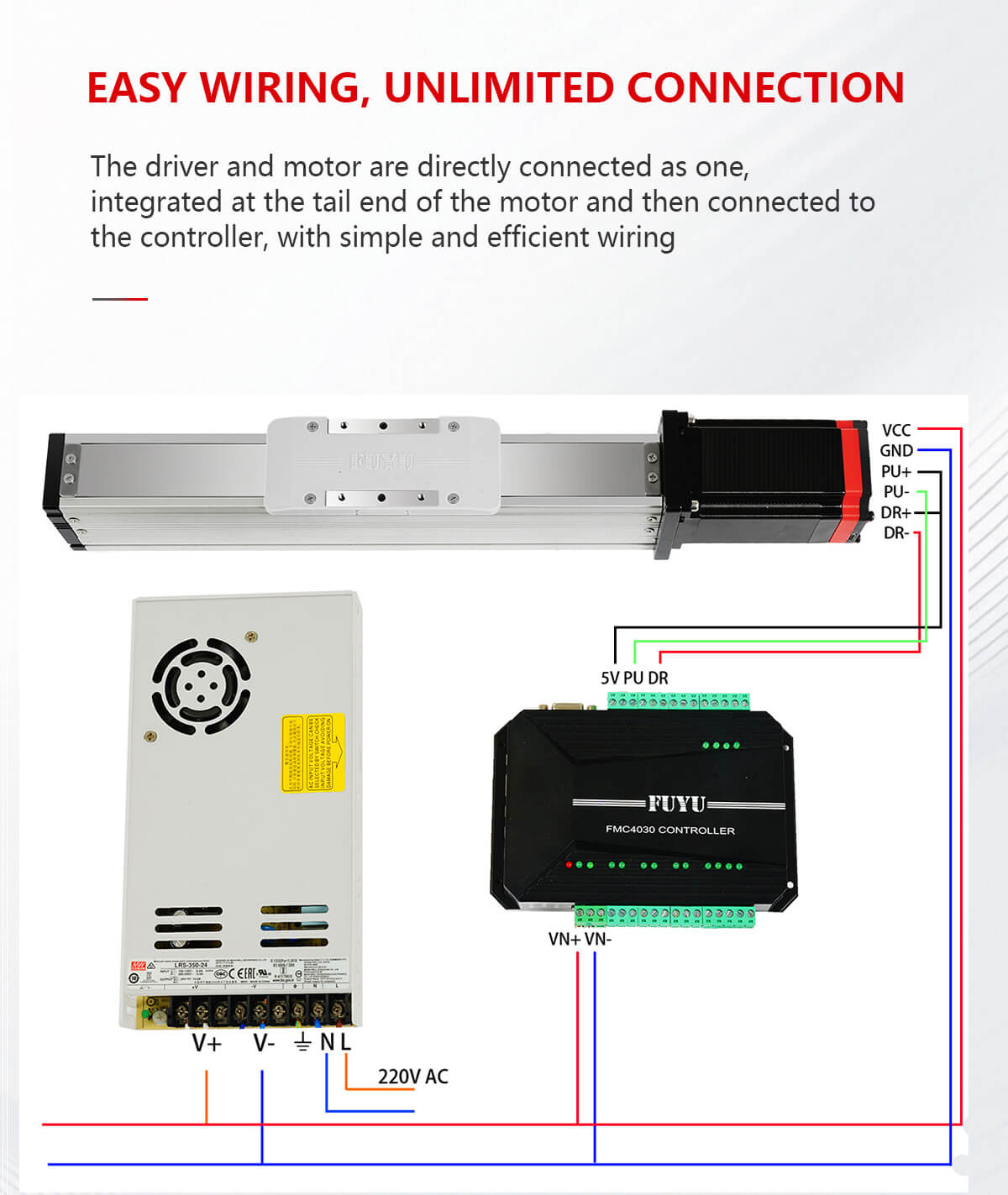

EASY WIRING, UNLIMITED CONNECTION
The driver and motor are directly connected as one, integrated at the tail end of the motor and then connected to the controller with simple and efficient wiring.
