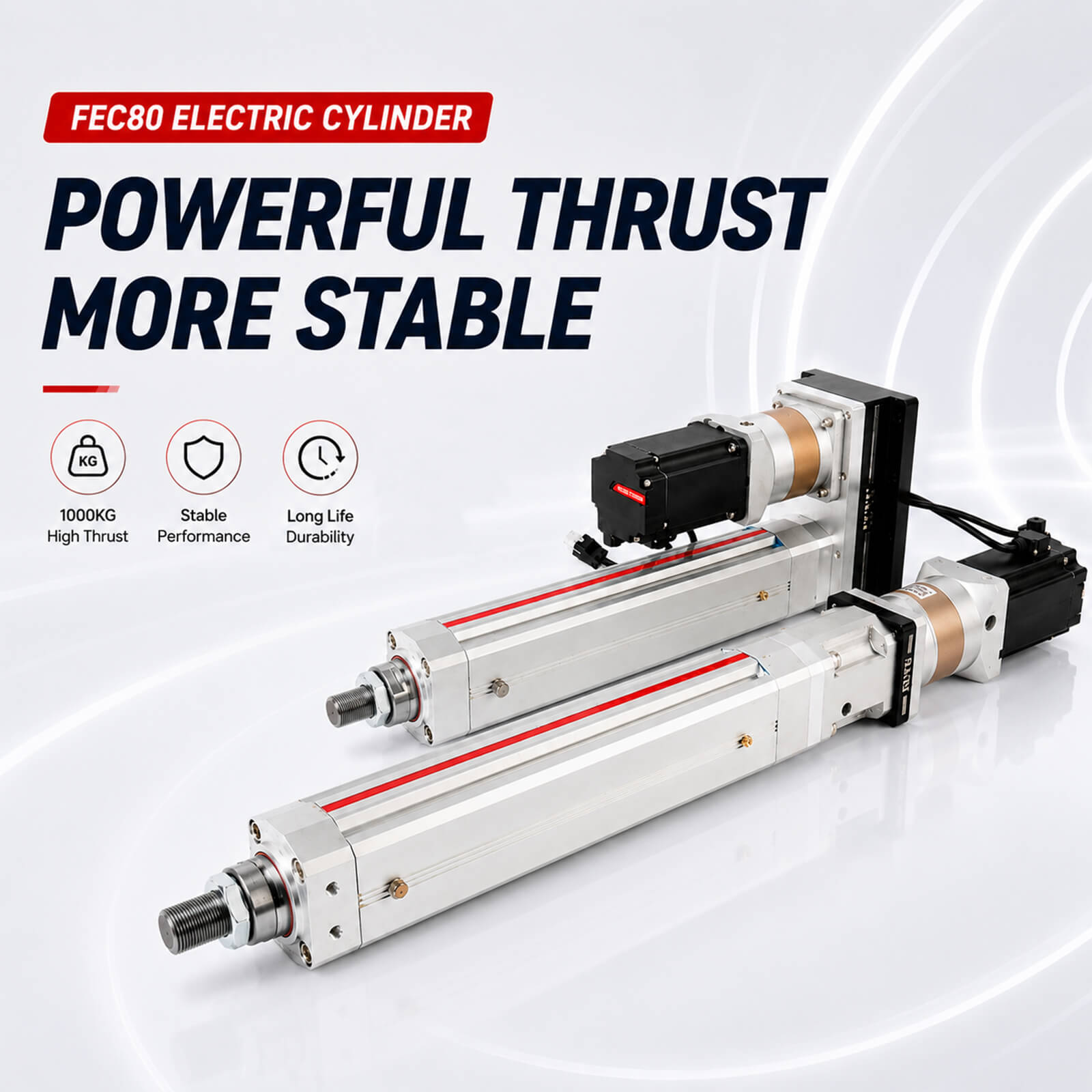

1000W Servo Motor Piston Cylinder IP65 Dustproof Ball Screw Linear Motion Electric Actuator

Short Description:

6063 A High-Strength Aluminum Alloy Cylinder Body (Strength increased by 15%)
Higher impact resistance and high thrust load capacity

33% increase in cross-sectional area, no bending or deformation under heavy loads.

45# high-strength steel with hard chrome plating
Extreme wear resistance, rust and corrosion protection

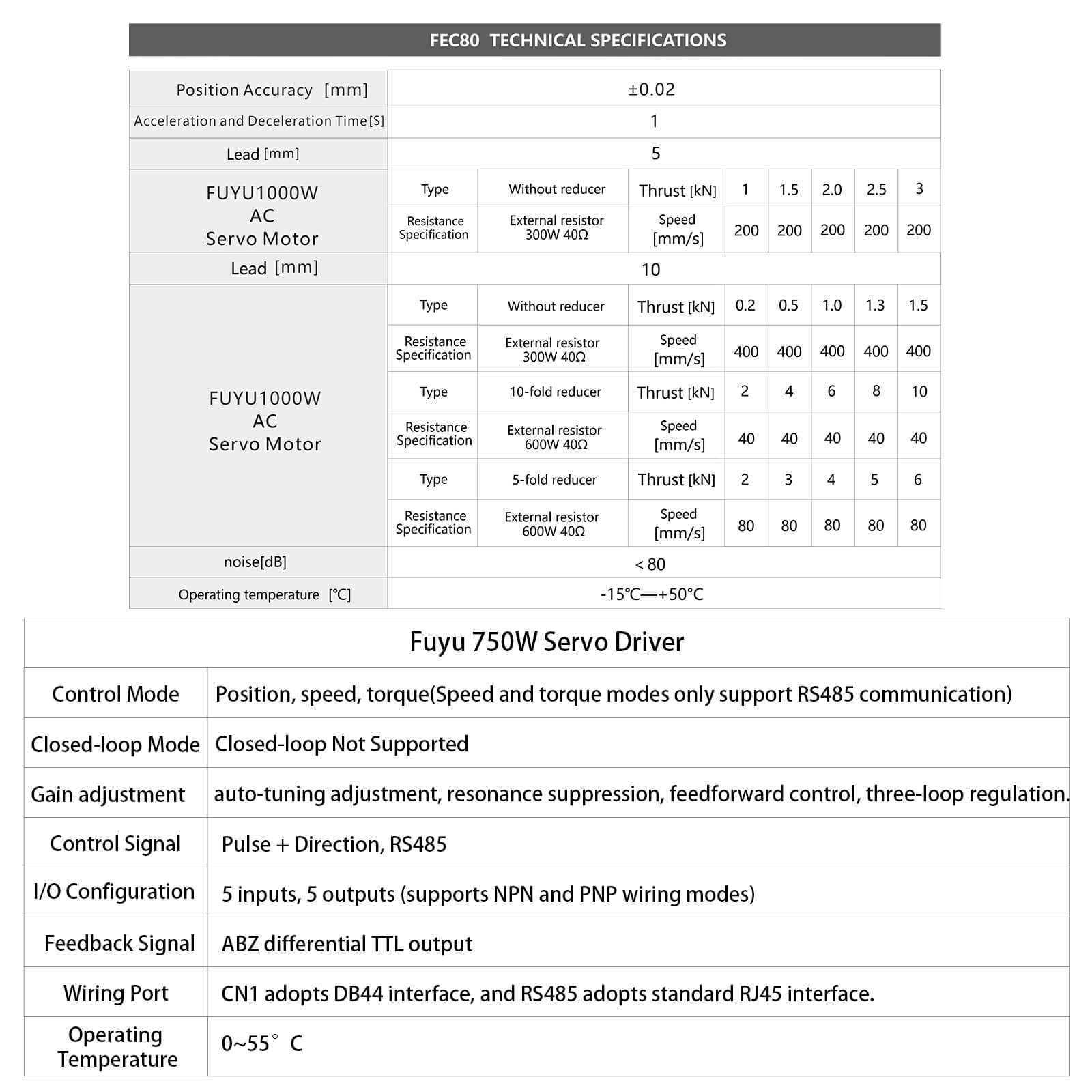

External Circulation  Ball Screw Nut Parameter Table

Worry-free performance: 2-Year or 1000km support.


  • Thrust: 1000kg
  • Protection Rating: IP65
  • Position Accuracy: 0.02mm
  • Stroke Length: 800mm
  • Speed Range: 400mm/s
  • Operation Temperature: 55℃
  • Product Detail

    Brand Overview


    品牌宣传页面_01 品牌宣传页面_02 品牌宣传页面_03 品牌宣传页面_04 品牌宣传页面_05 品牌宣传页面_06 品牌宣传页面_07

    CHENGDU FUYU TECHNOLOGY CO.LTD

    FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
