Project Aim

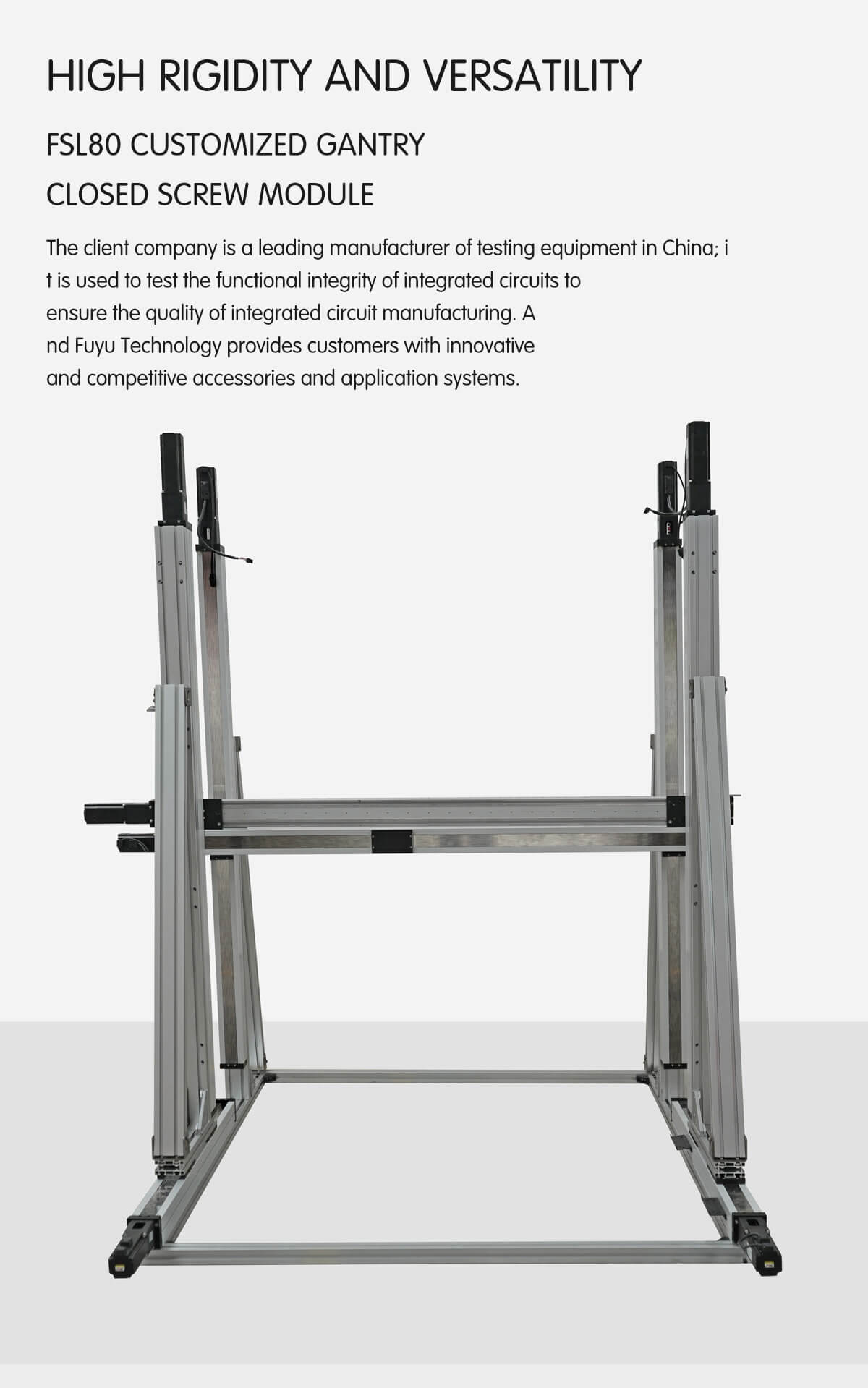

The client company is a leading manufacturer of testing equipment in China; it is used to test the functional integrity of integrated circuits to ensure the quality of integrated circuit manufacturing. And Fuyu Technology provides customers with innovative and compefifive accessories and application systems.
Tailor Design

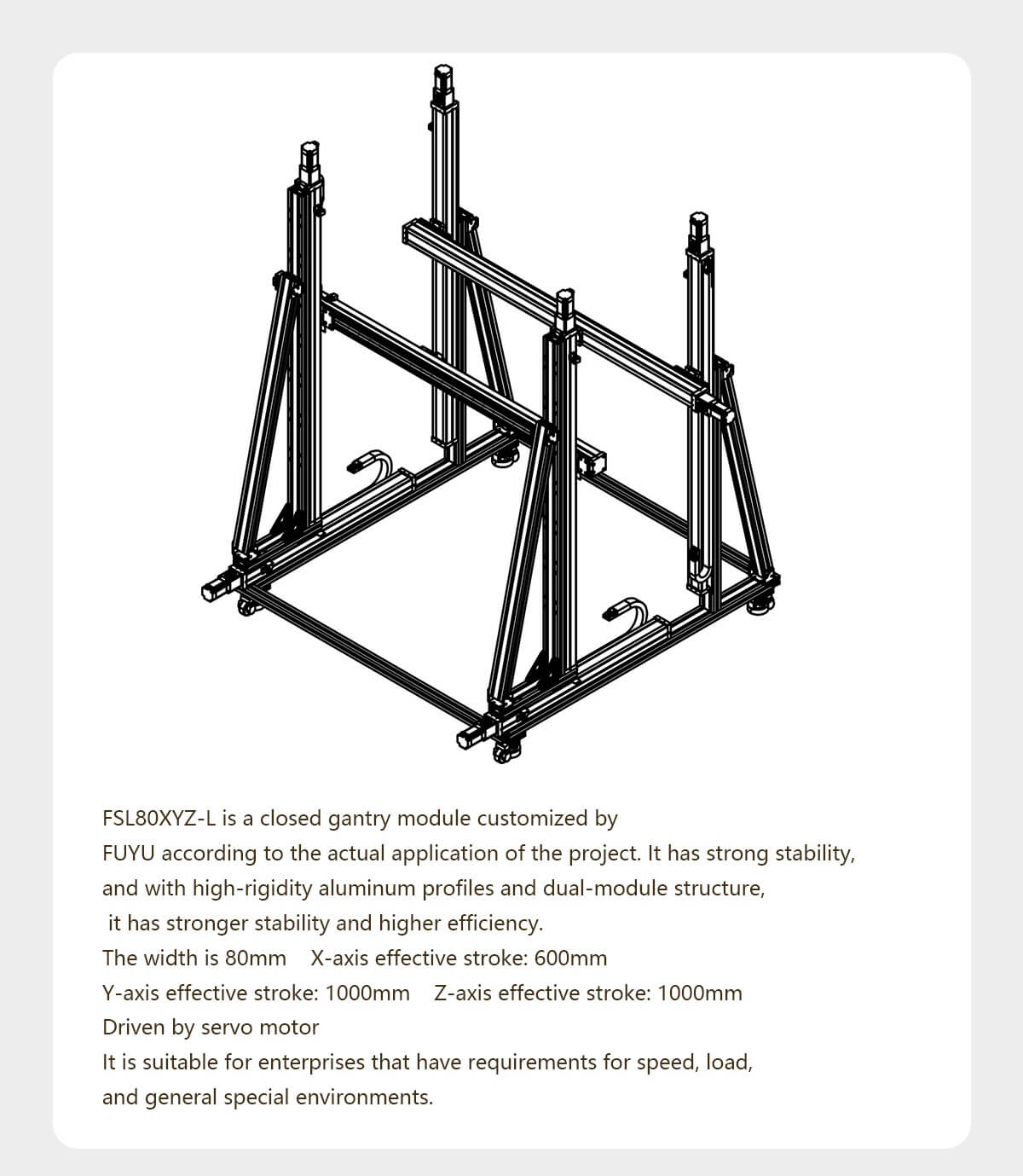

FSL80XYZ-L is a closed gantry module customized by FUYU according to the actual application of the project. It has strong stability and with high-rigidity aluminum profiles and dual-module structure, it has stronger stability and higher eficiency. The width is 80mm X-axis effective stroke: 600mm, Y-axis effective stroke: 1000mm, Z- axis effective stroke: 1000mm Driven by servo motor. It is suitable for enterprises that have requirements for speed, load and general special environments.

Series: FSL80IS-DZ

Stroke Range: 50mm-1200mm

Position Accuracy: 0.02mm

Max Speed: 220mm/S

Max Load: 40kg

IP Level: IP51
