Factory Ball Screw Enclosed Linear Motion Guide Good Repeatability and Accuracy

Short Description:

Technical Feature

FSL60 linear guide, fully sealed structure, body width 60mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to affect working, large stretch,small compression,hard object collision without deformation, oleic acid resistance, high temperature resistance, long service life.

Range of Application

It can be used in combination with single or multiple axes. It is easy to match the required workpieces in various industries and it becomes a simple and practical mechanical arm. It is mainly used in dust free workshops or special fields such as electronics and medical equipment, such as film, Discount, IC printing, CCD online testing, solder automation equipment.

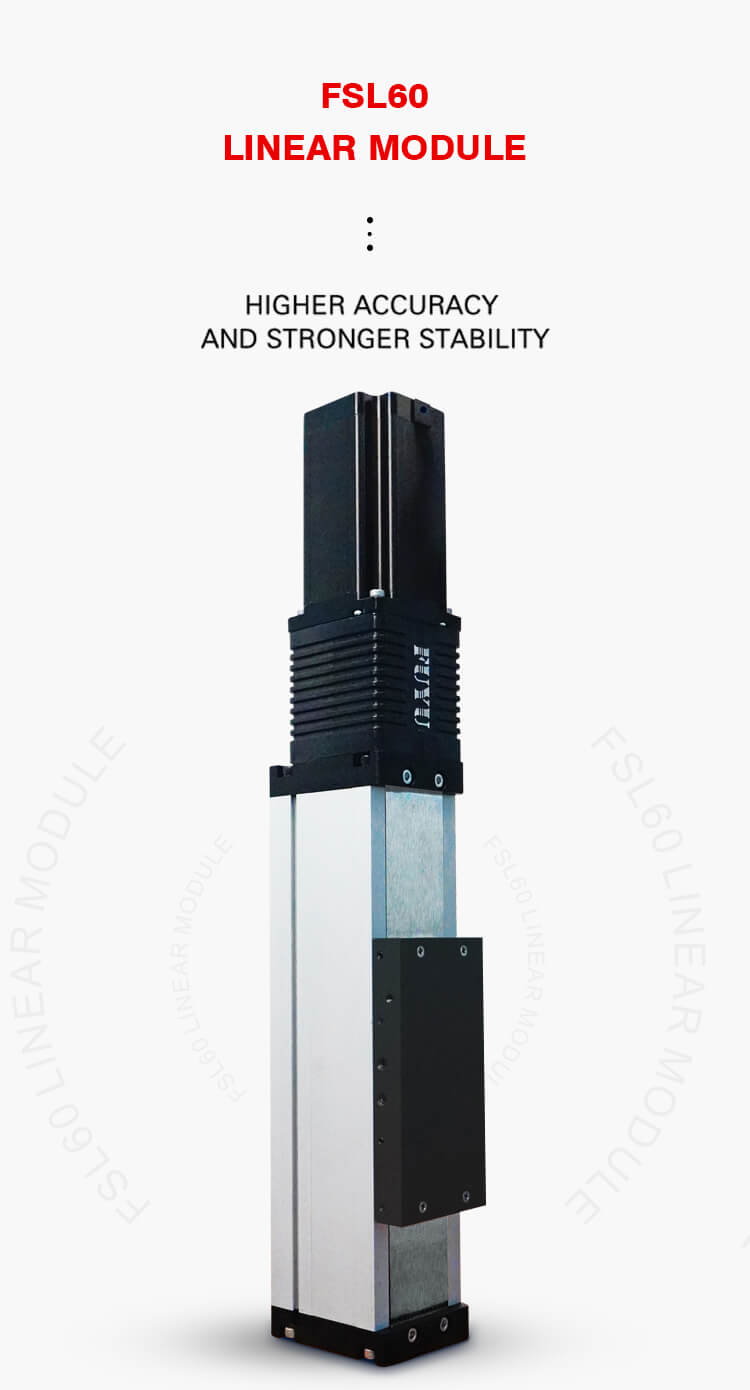

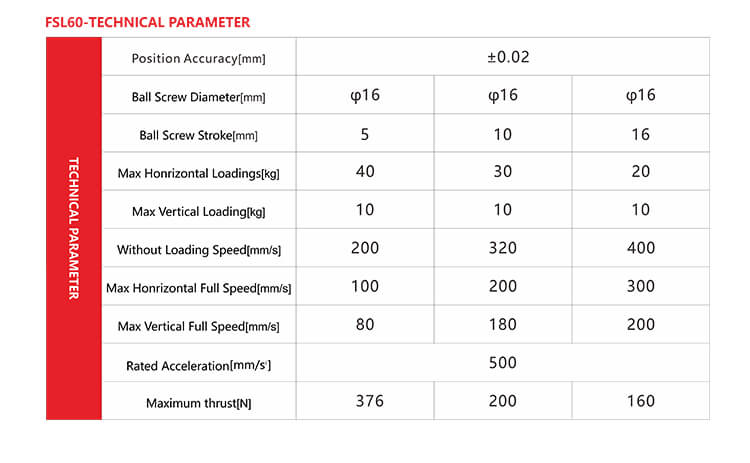

Series: FSL60

Type: Ball Screw

Stroke Range: 1200mm

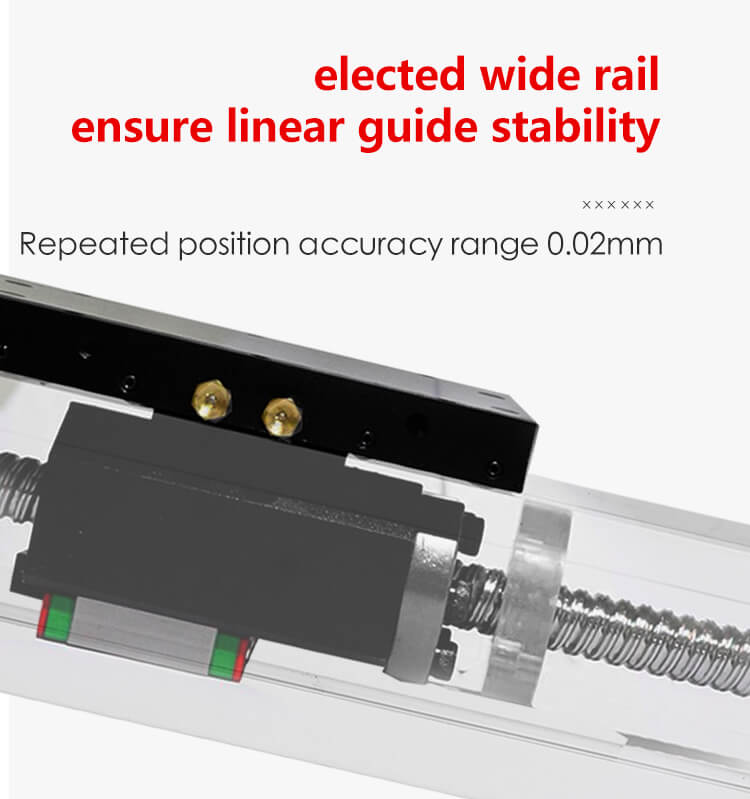

Reapted Position Accuracy: 0.02mm

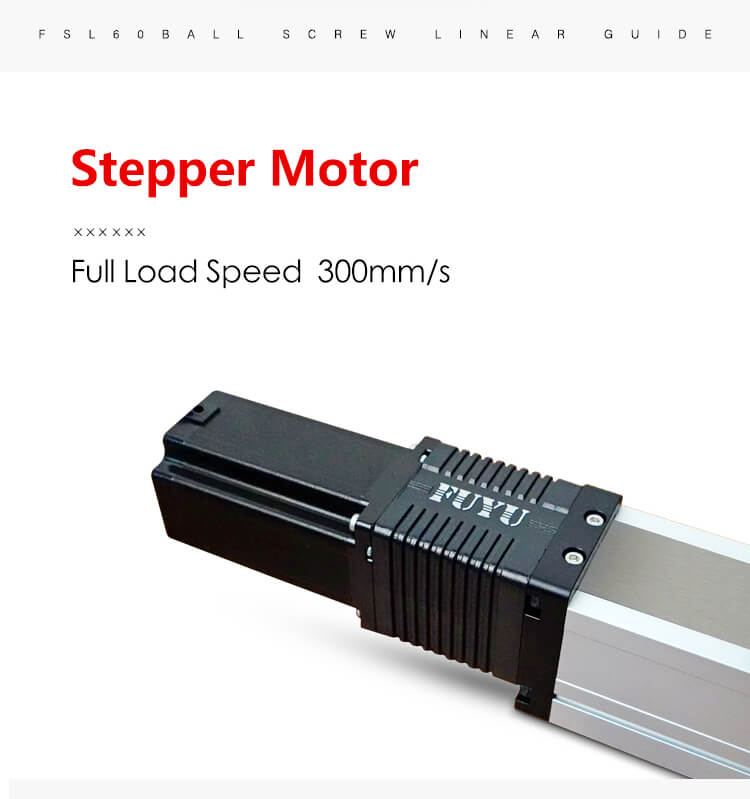

Full Load Speed: 300mm/s

Max Load: 40kg

Send email to us Download To PDF Play video

Product Detail

Brand Overview

FUYU Technology specializes in industry-specific customization and we are a brand manufacturer of Intelligent linear motion systems. Our products include Ball Screw Actuator, Belt Driven Module, XYZ Positioning Stage, Gantry System, Sever Cylinder, Linear Rail Guide, Electric Gripper and Multi-axis Motion Controller for Cartesian Robot. The engineer team has 8 invention patents, 47 utility model patents, 24 design patents, 18 software copyrights. The factory is awarded industry certifications such as ISO9001:2015, ROHS, CE, FCC and TUV. Since 2011 founded, we have served more than 26400 customers all over the world with linear motion system none-standard solutions covering 9 major fields, including 3C electronics, biological science, new energy, medical equipment, smart food, agriculture automation, automotive industry, visual inspection, education research and so on. The company owns wide variety of ready-to-Ship products, we also accept OEM orders and supply programming services. Based on thousands of successful industry solutions, advanced engineer development concepts and efficient assembly team for linear motion workbench, we sincerely invite the global partners to share new source, new price and new chance. “Your Idea, Our Motivation.” Let's make it together!
