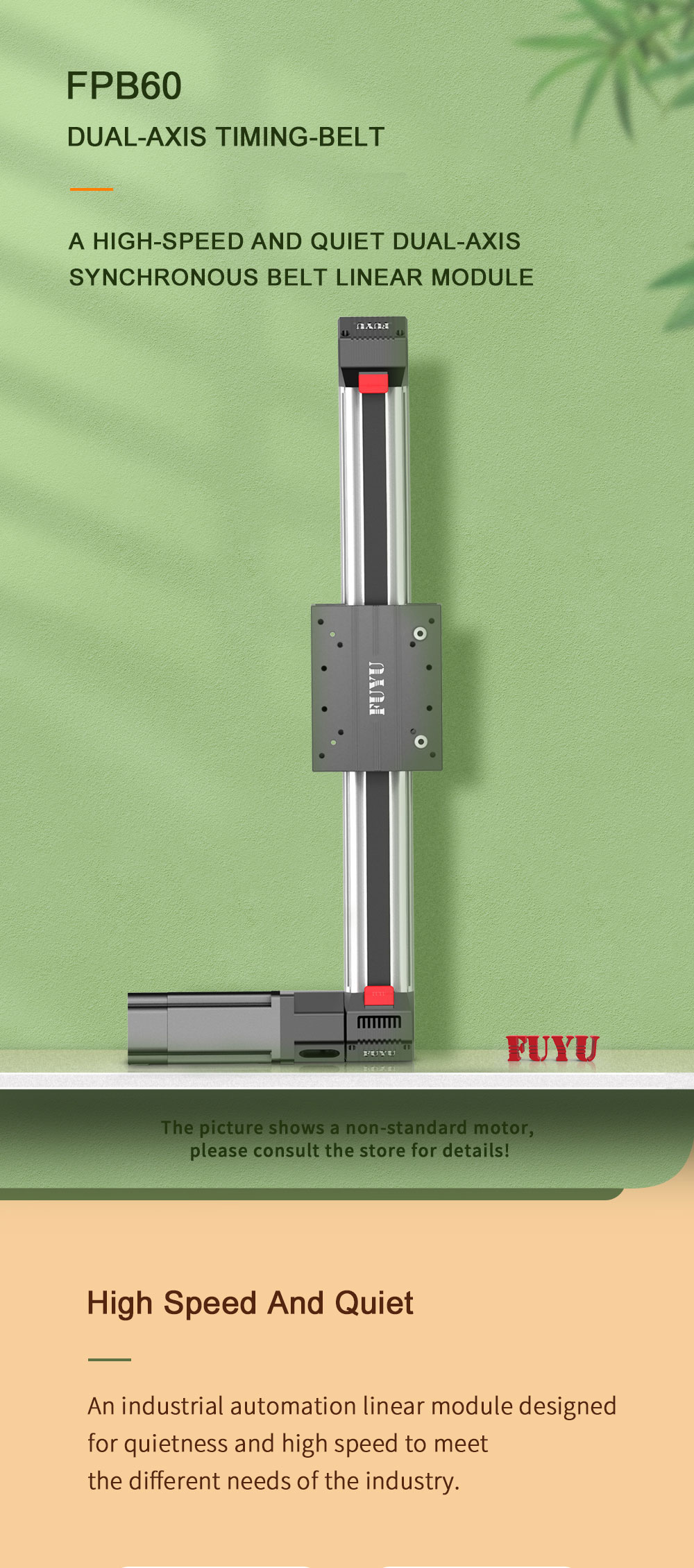

Heavy Load Double Shaft Rail Guide Belt Driven Linear Actuator

Short Description:

Main Feature

The body of the FPB60 dual-axis synchronous belt module is a precision extruded aluminum profile, and the overall design is lightweight. There are T-shaped nut runners on both sides of the body and the mounting surface of the base to ensure the practicability of the base installation and fixation. The T-nut runners on both sides of the profile can be installed with sensors. Integrated profile and linear guide bearing design, high rigidity, high speed, low friction coefficient, low noise, strong interchangeability and long service life. It is a combination module specially provided for designers and manufacturers of multi-axis linear robotic arms. The double shaft adopts high-hardness chrome-plated anti-rust synchronization rod, and the synchronization wheel adopts 45 steel, which is highly fitted with polyamide steel wire toothed belt, and selects high-quality rolling elements. The force is effectively reduced by 50%, and it is more wear-resistant and quiet. At present, the size and width of the synchronous belt linear module base is 60mm, and the longest effective stroke can reach 3.5 meters.

Application Area

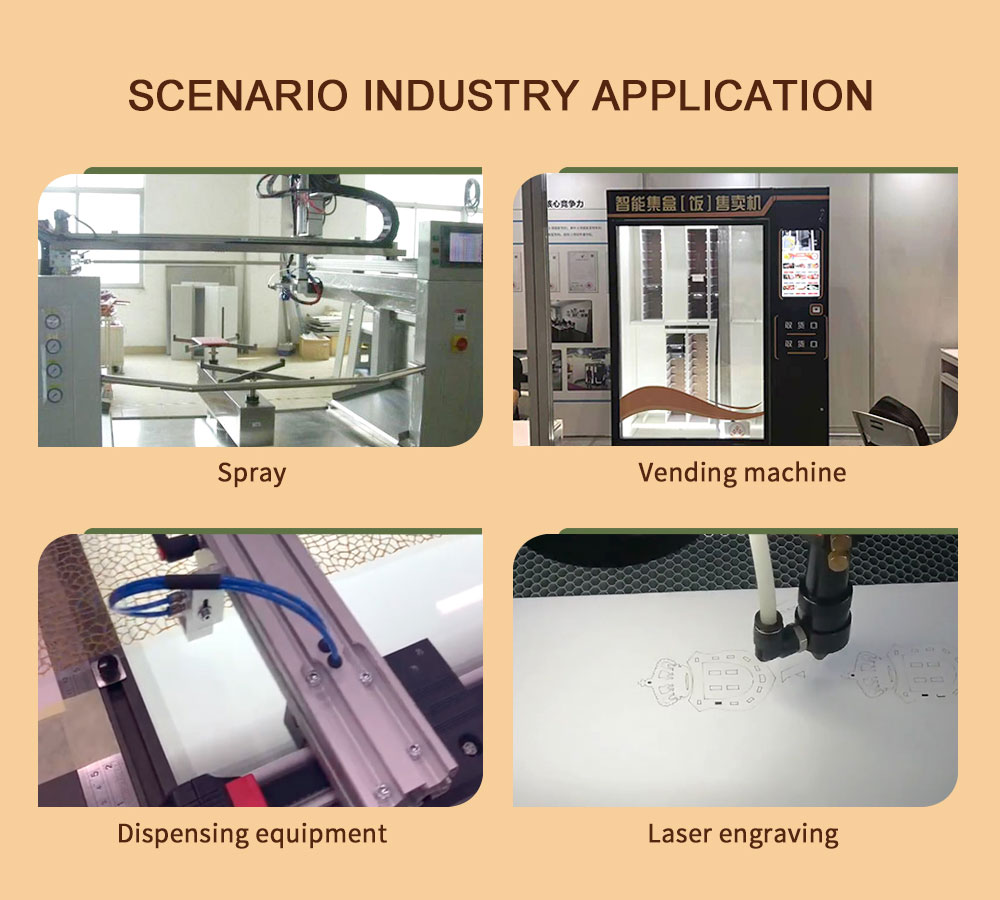

FPB60 is mainly used in tooling clamping, transferring, positioning, automated workstations, semiconductor equipment, TFT-LCD liquid crystal panel equipment, solar equipment, LED online equipment, mechanical internal XYZ axis working platform, dispensing, locking screws, visual inspection, Measuring equipment, etc., high-speed, high-precision, long-travel places.

Series: FPB60

Custom Stroke: 50mm-3500mm

Position Accuracy: 0.05mm

Speed Range: 2000mm/S

Load Capacity: 35kg

Module Lead: 95mm

Send email to us Download To PDF Play video

Product Detail

Brand Overview

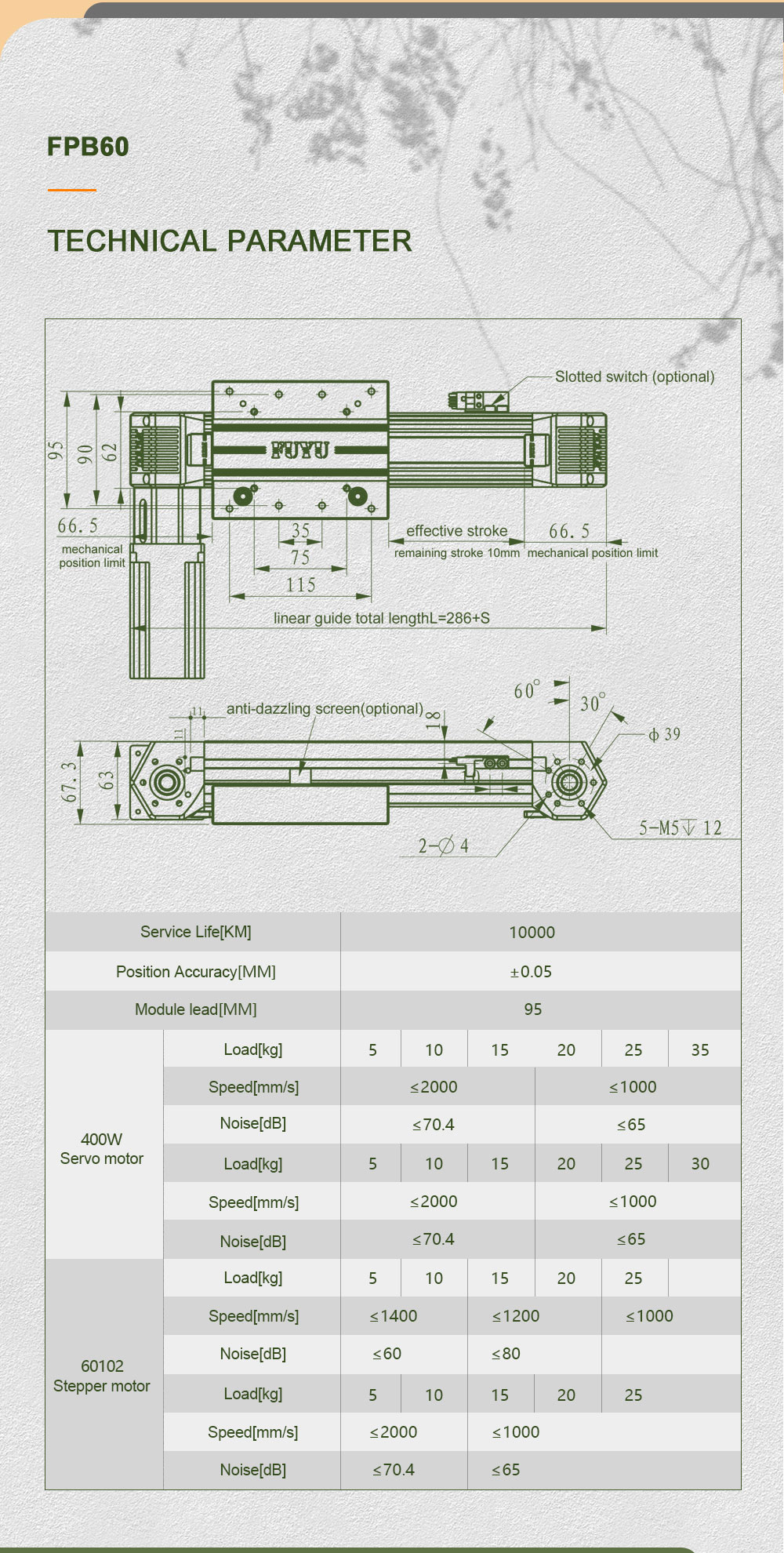

FPB60双轴芯详情页英文_01 FPB60双轴芯详情页英文_03 FPB60双轴芯详情页英文_04 FPB60双轴芯详情页英文_05 FPB60双轴芯详情页英文_06 FPB60双轴芯详情页英文_07

Brand Partners

MORE DURABLE

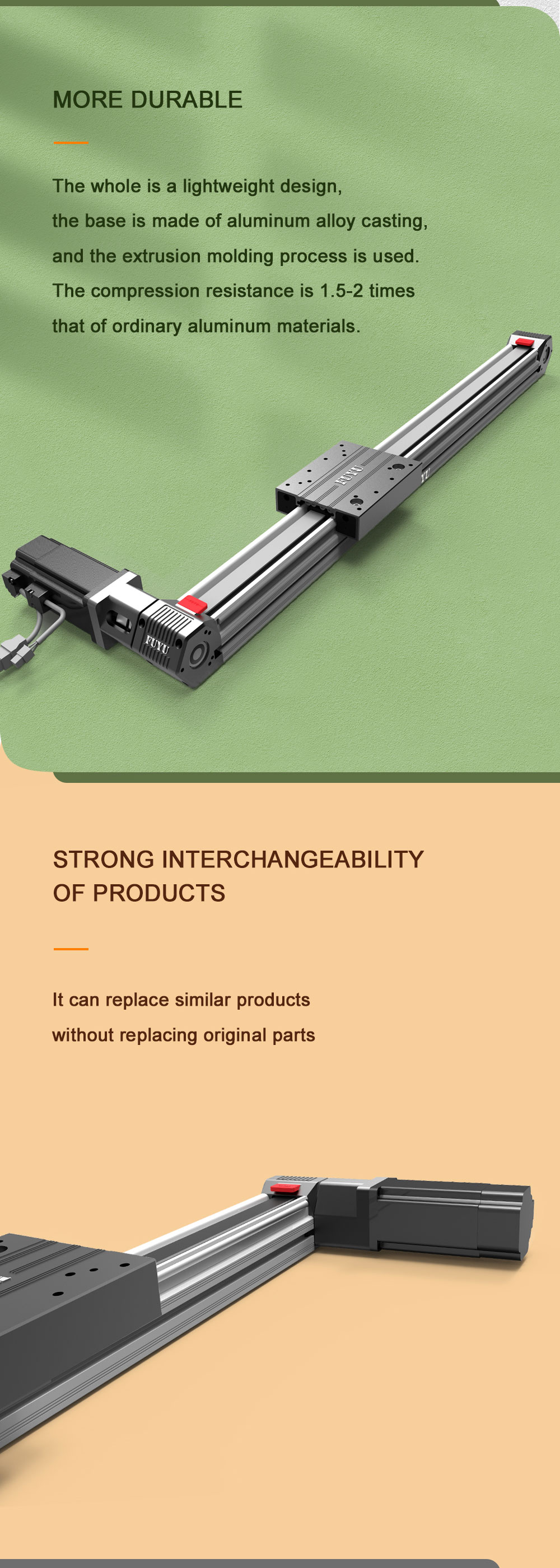

The whole is a lightweight design, the base is made of aluminum alloy casting, and the extrusion molding process is used.The compression resistance is 1.5-2 times that of ordinary aluminum materials.
STRONG INTERCHANGEABILITY OF PRODUCTS
It can replace similar products without replacing original parts

HIGH SPEED AND QUIETDESIGN

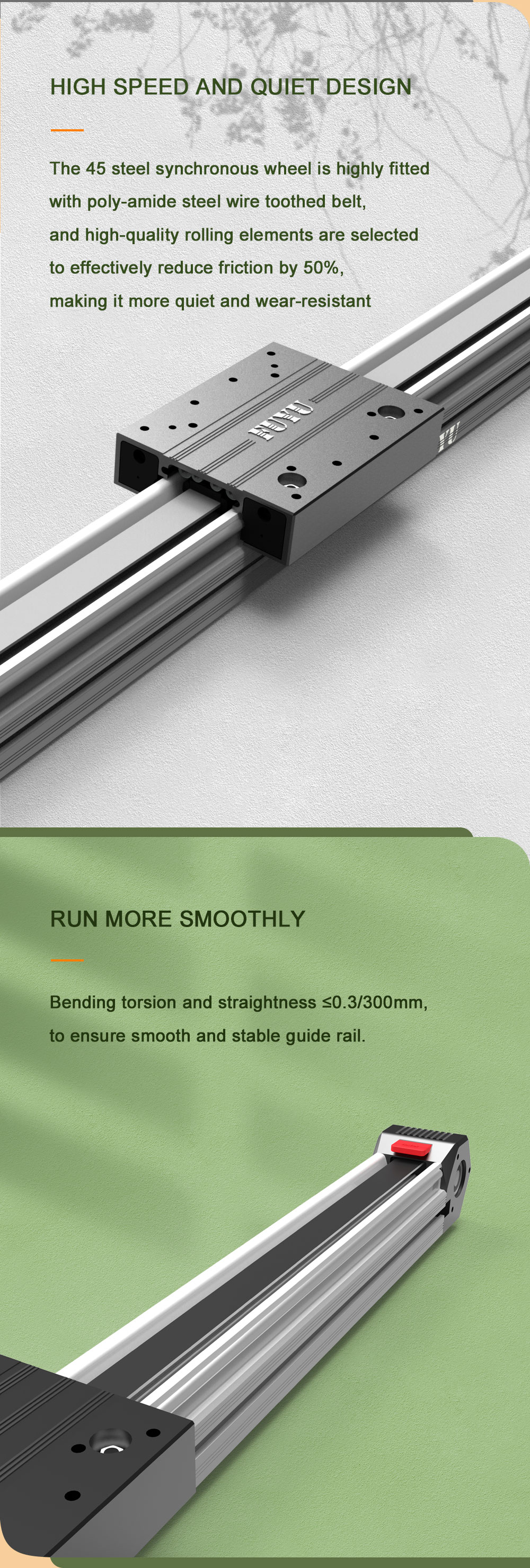

The 45 steel synchronous wheel is highly fitted with poly-amide steel wire toothed belt and high-quality rolling elements are selected to effectively reduce friction by 50%, making it more quiet and wear-resistant
RUN MORE SMOOTHLY
Bending torsion and straightness ≤0.3/300mm to ensure smooth and stable guide rail.

DETAILS HIGHLIGHT HIGH QUALITY

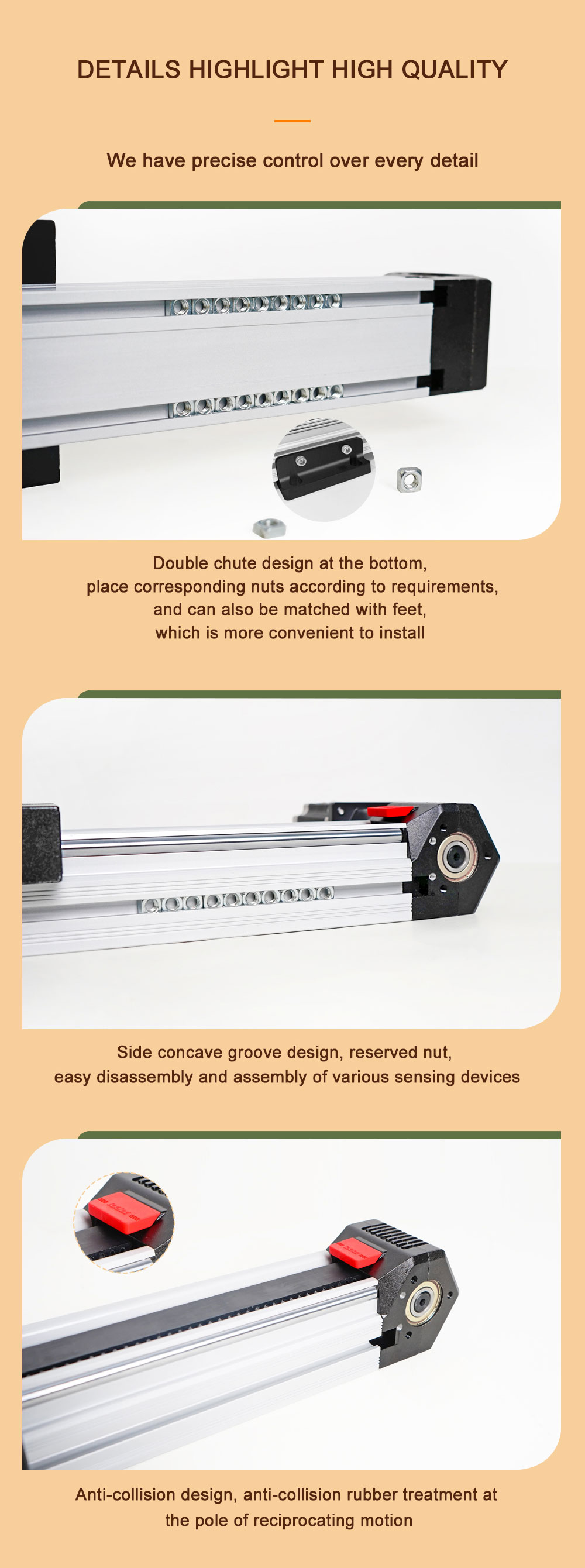

We have precise control over every detail, Double chute design at the bottom, place corresponding nuts according to requirements and can also be matched with feet, which is more convenient to install, Side concave groove design, reserved nut, easy disassembly and assembly of various sensing devices, Anti-collision design, anti-collision rubber treatment at
