3-axis Stage for Engraving Machine Gantry System Linear Robot XYZ Motion System

Short Description:

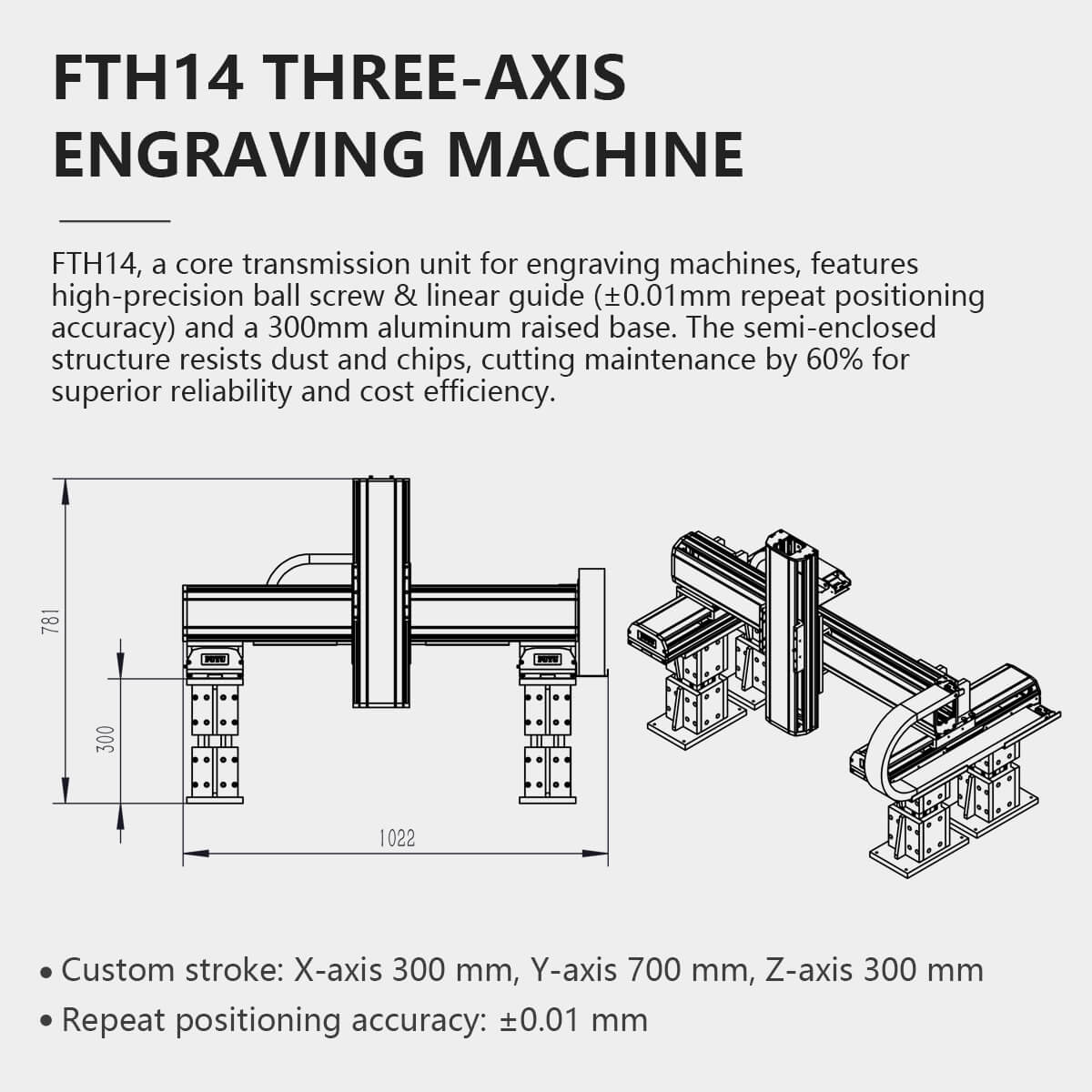

FTH14, a core transmission unit for engraving machines, features high-precision ball screw & linear guide (+0.01mm repeat positioning accuracy) and a 3oomm aluminum raised base.

The semi-enclosed structure resists dust and chips, cutting maintenance by 60% for superior reliability and cost efficiency.

Custom stroke: X-axis 300 mm, Y-axis 700 mm, Z-axis 300 mm

Repeat positioning accuracy: ±0.01 mm

Series: FTH14IS-H

Stroke Range: 50mm-1250mm

Module Width: 135mm

Repeat Position Accuracy: 0.02mm

Lead: 5/10/20mm

Speed Range: 250/500/1000mm/s²

Horizontal Load Capacity: 110/90/40kg

Vertical Load Capacity: 30/25/10kg

Send email to us

Product Detail

Brand Overview

The dual-track linear module developed by FUYU has a body width of 14cm, which runs more smoothly and has strong stability. The repeated positioning accuracy can reach ± 0.02mm, bass noise, and high load. It is one of the main products used in the international market. Mainly used on automatic devices such as position working, clamping, carrying, including electronic assembly, liquid injection and filling device, spot fusion welding device, circuit board and wafer box positioning insertion device, object snap entire column.
