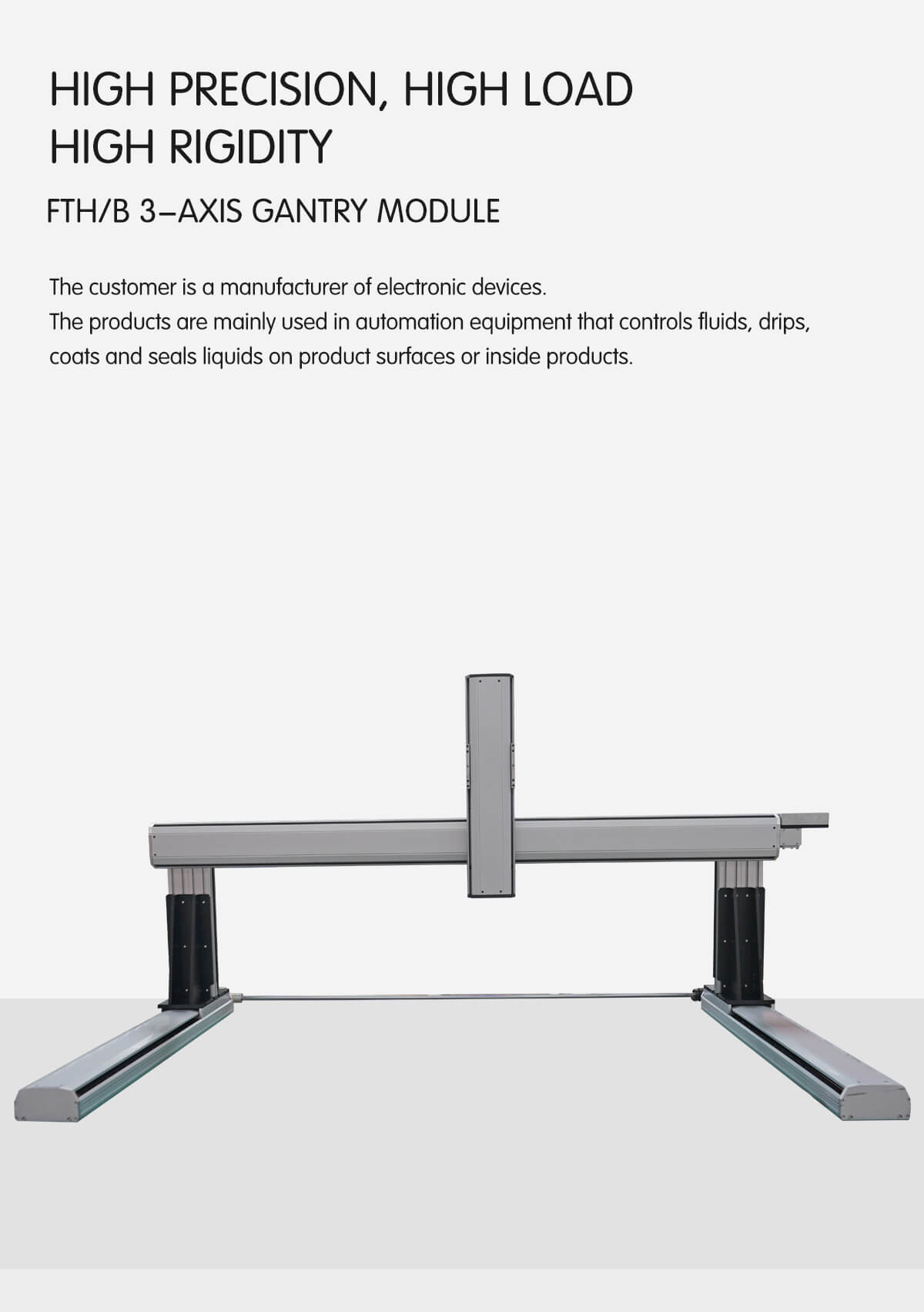

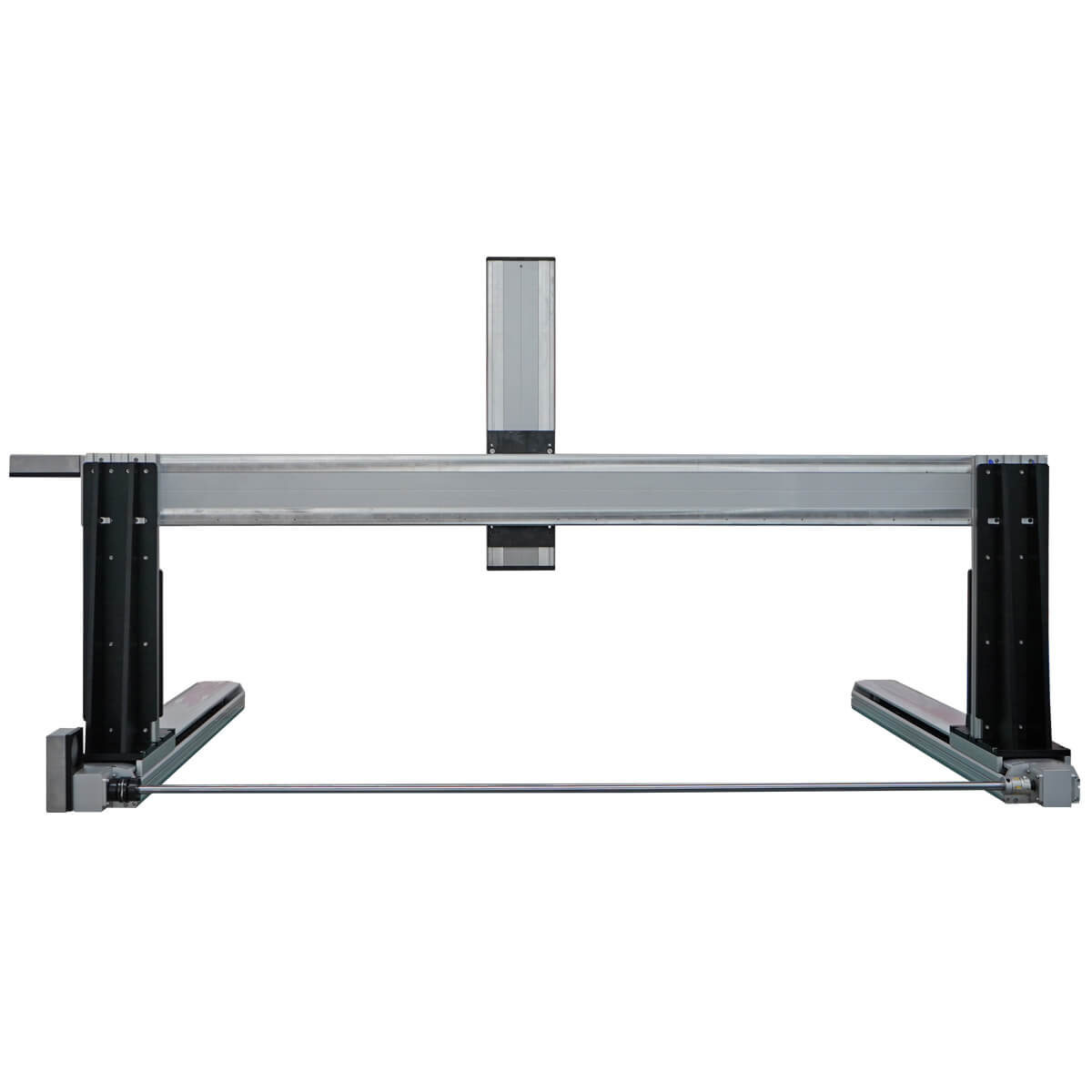

    FUYU Linear Gantry Robot Manufacturer for Multi-Axis Automation Industry

    Short Description:

    Application Field

    The workbench adopts a precision aluminum profile base, which is lightweight and rigid.

    It has the advantages of high precision, low noise and corrosion resistance.

    Especially suitable for spraying equipment dispensing industry.



    Core Indicators

    The perfect combination of fast speed and high load.

    The repeatability of FTH17 is ±0.02mm, the maximum speed is 1250mm/s, the maximum horizontal load is 120KG, and the maximum vertical load is 50KG.

    The XY axis adopts FTB17 belt as a module, the maximum speed is 2000mm/s, and the maximum load is 45k.


  • Series: FTHFTB-IS

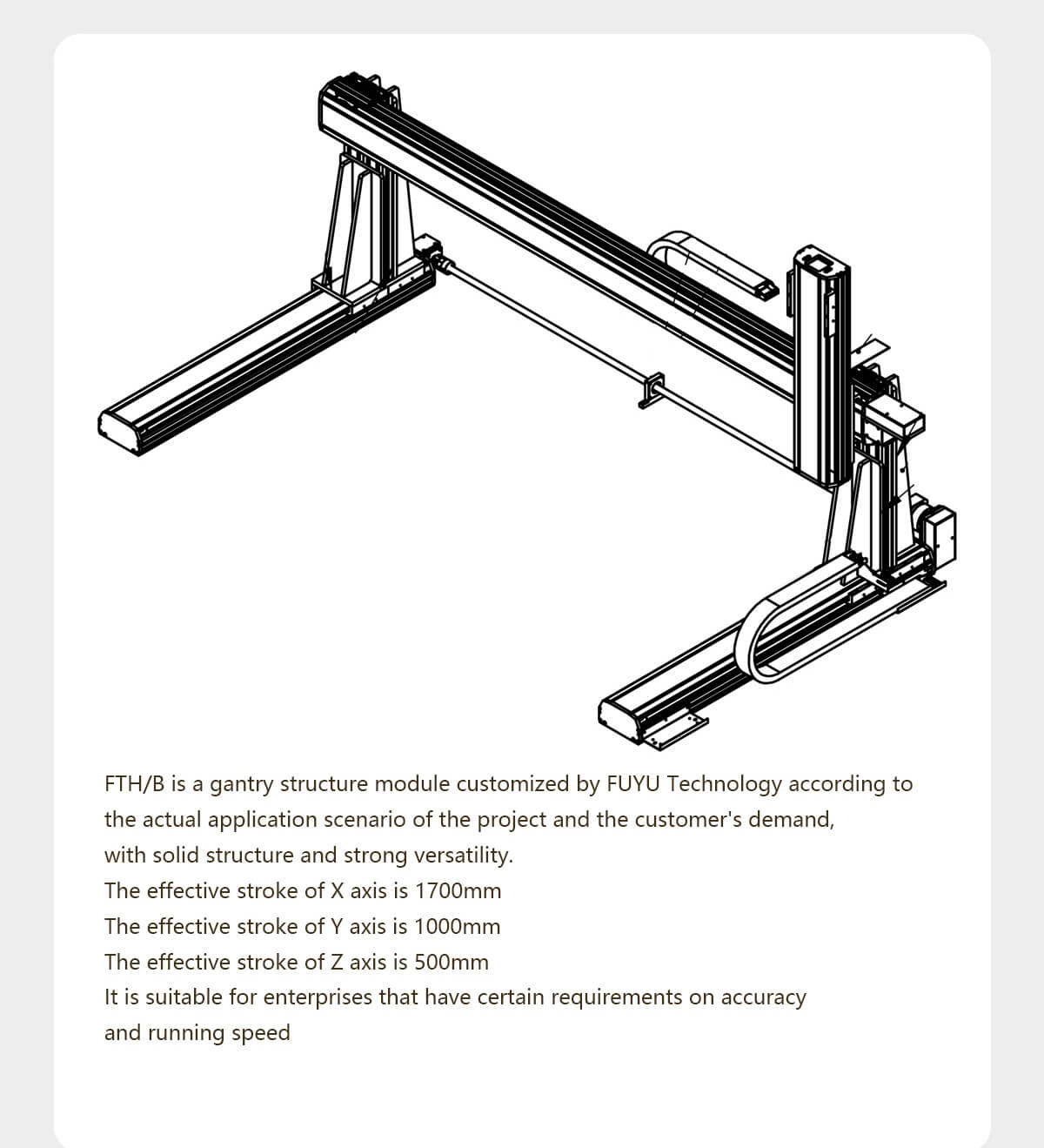

  • Stroke Range: 500mm-1700mm
  • Module Width: 140mm-170mm
  • Repeat Position Accuracy: 0.02mm-0.05mm
  • Speed Range: 1250-2000mm/s²
  • Load Capacity: 45-120KG
  • Product Detail

    Company Profile


    Factory Introduction Product Certificate Research and Development Technology Service

    CHENGDU FUYU TECHNOLOGY CO.LTD

    FUYU Technology is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Multi-axis Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, IP65, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-4000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
