Dustproof Vertical Linear Stage Ball Screw Rail Guide Multi-axis Positioning System

Short Description:

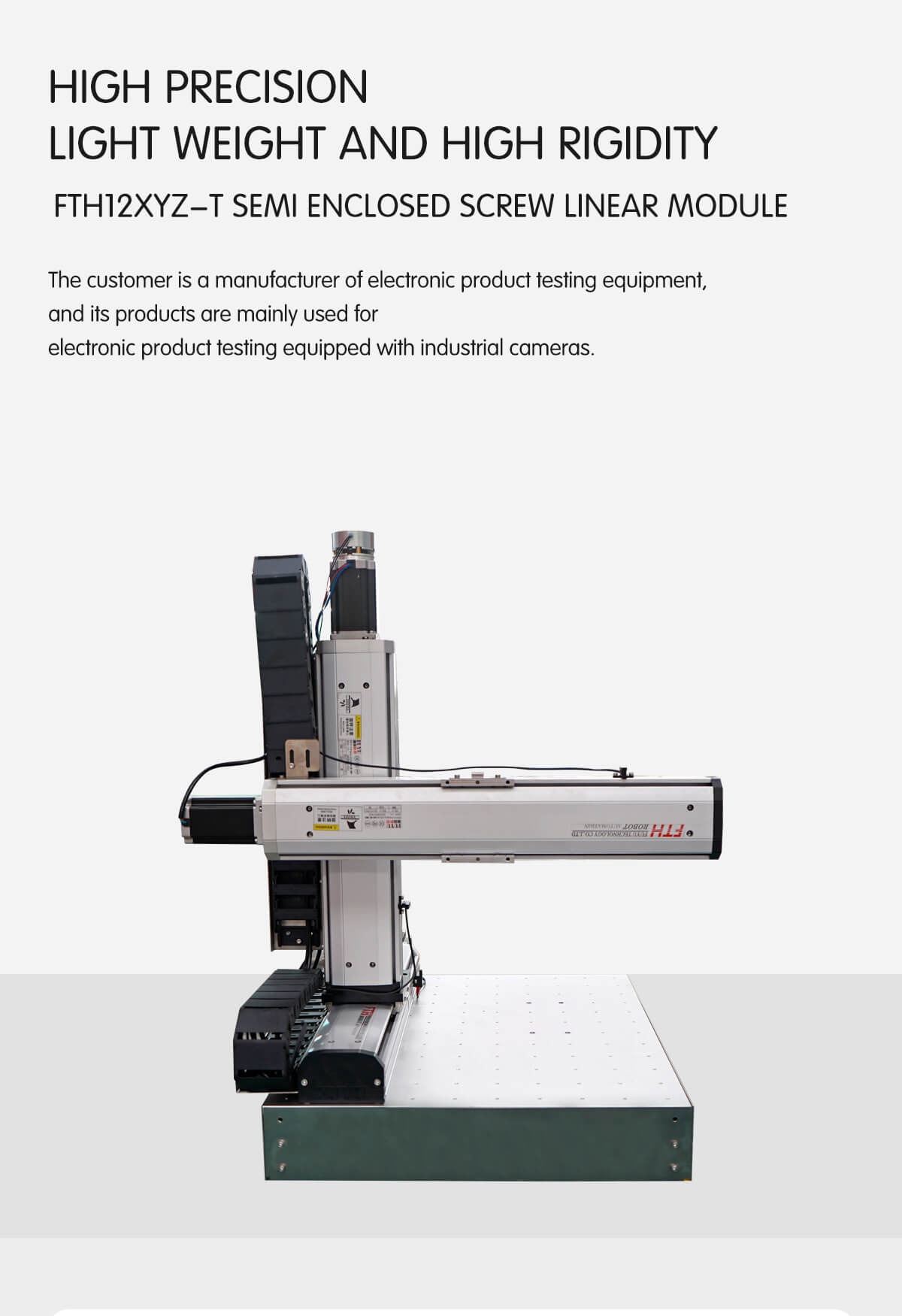

FTH series custom gantry robot positioning system

High precision, light weight and high rigidity Semi enclosed screw linear module

Range of Application

The customer is a manufacturer of electronic product testing equipment, and its products are mainly used for electronic product testing equipped with industrial cameras.

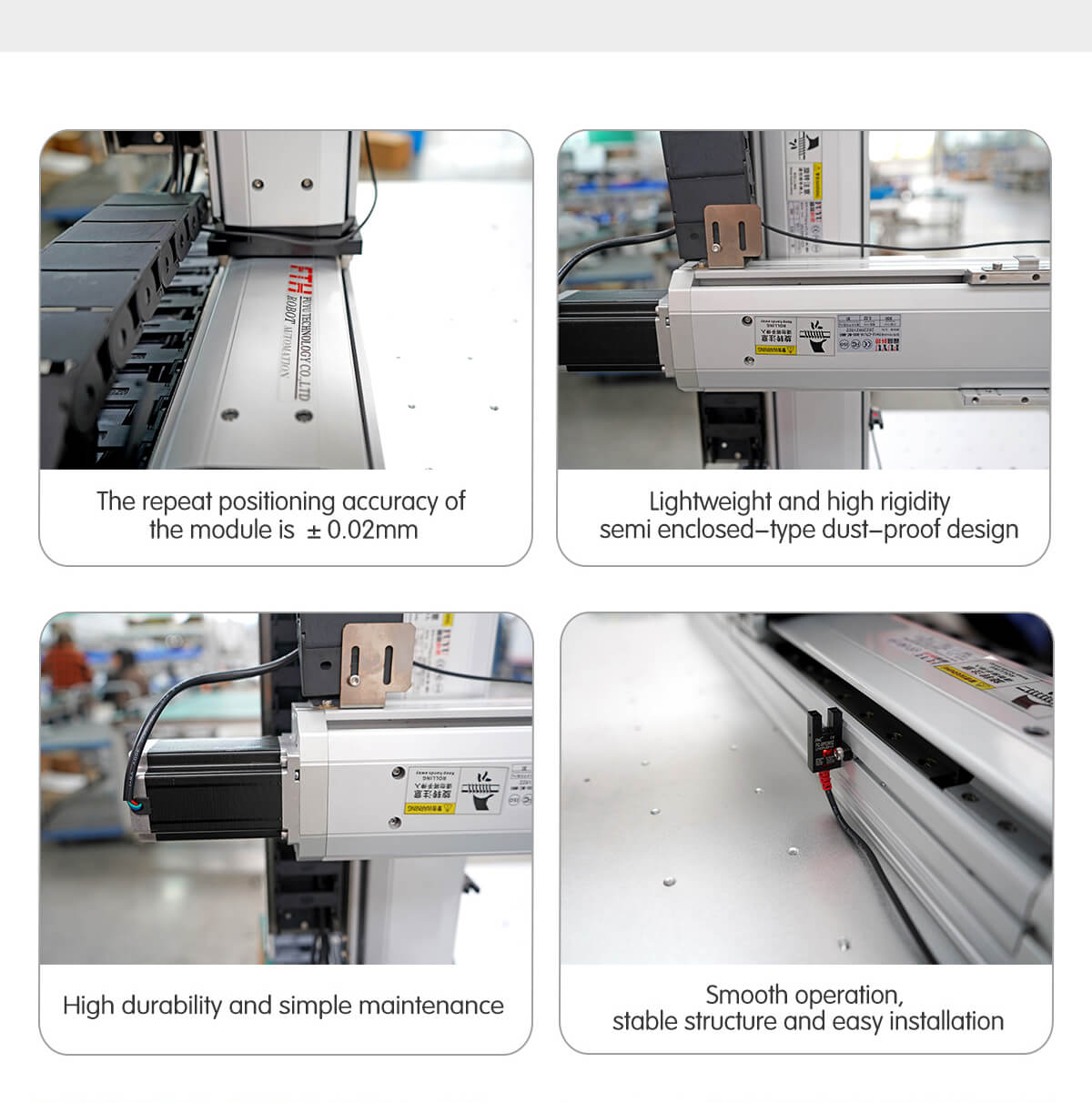

The customer requires that all electrical accessories such as drivers, controllers, and power supplies should be fixed in the base at the bottom, and the size should not be too high. The FTH12 in this project has a repeat positioning accuracy of ±0.02mm, a maximum speed of 1000mm/s, a maximum horizontal load of 50KG, and a maximum vertical load of 15KG. Precision aluminum base, lightweight and high rigidity. It has the advantages of high precision, accurate positioning, low noise and corrosion resistance, and is suitable for most testing equipment and instrument industries that have certain requirements on accuracy, running speed and operating environment.

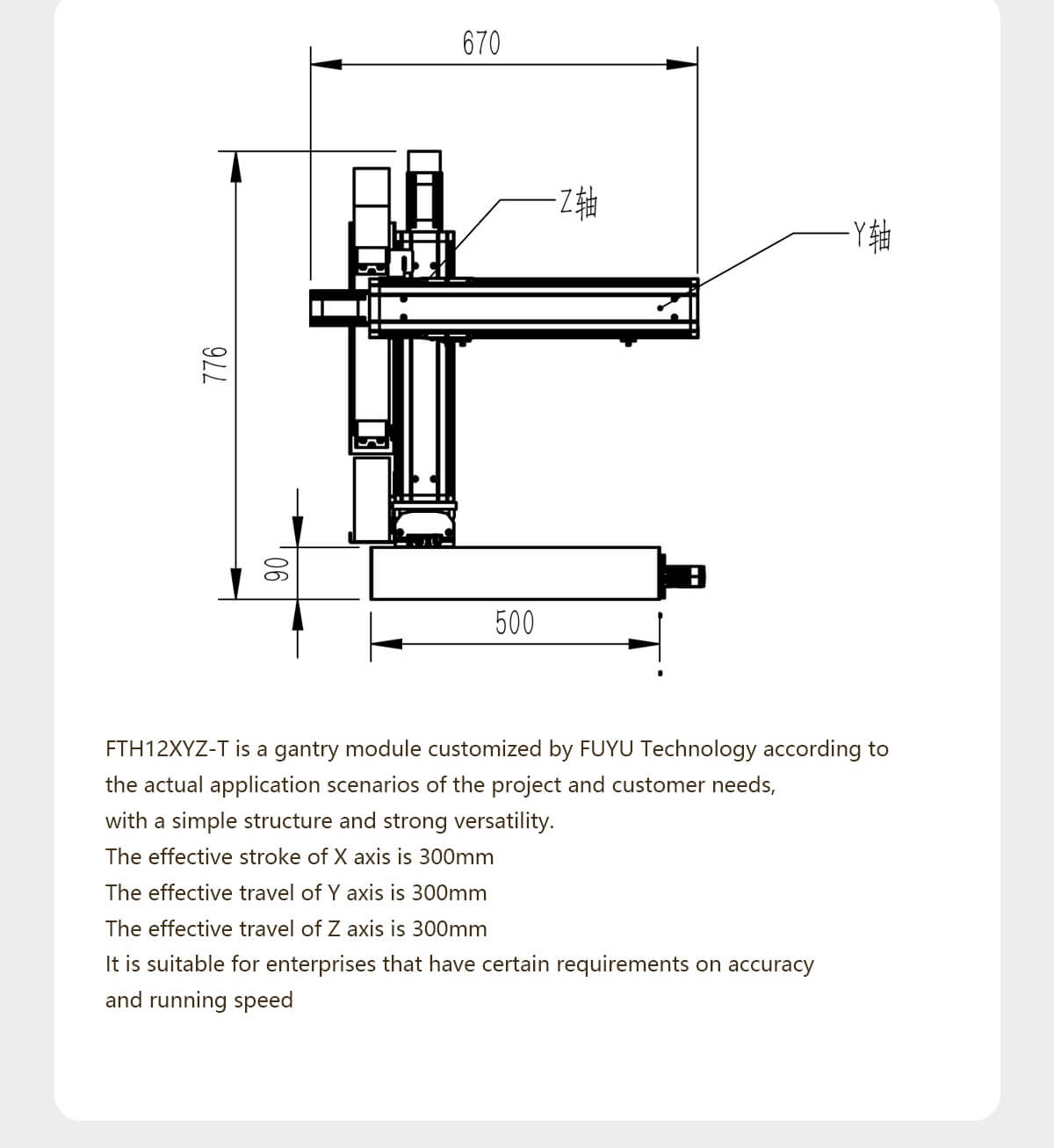

Series: FTH12IS-T

Stroke Range: 100mm-1050mm

Position Accuracy: 0.02mm

Speed Range: 250/500/1000mm/s²

Max Load: 50kg

Ball Screw: 16mm
