Heavy Load Slide Actuator Linear Motion Guide Ball Screw Rail Side Mounted Motor

Short Description:

Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification.
Wide Variety of Ready-to-Ship Products
Quantity Discounts Starting at 10 pcs
Custom OEM Solutions
Programming Services
If need OEM or Custom Design, please check here – https://www.fuyumotion.com/industry-solution

To get professional service, we have some questions for your project：
1. Which type of Linear Motion do you want, Belt Driven or Ball Screw?
2. How long stroke need: X=? Y=? Z=?
3. How much is the Load Capacity and Speed Range?
4. Do you need Motion Controller and other accessory together?

Series: FSL80/120-X

Stroke Range: 50mm-1500mm

Lead: 5/10/20/25 mm

Repeat Position Accuracy: 0,02 mm

Horizontal Load Capacity: 120/110/80/60 kg

Vertical Load Capacity: 50/40/25/20 kg

Speed Range: 500mm/s

Send email to us Play video

Product Detail

Brand Overview

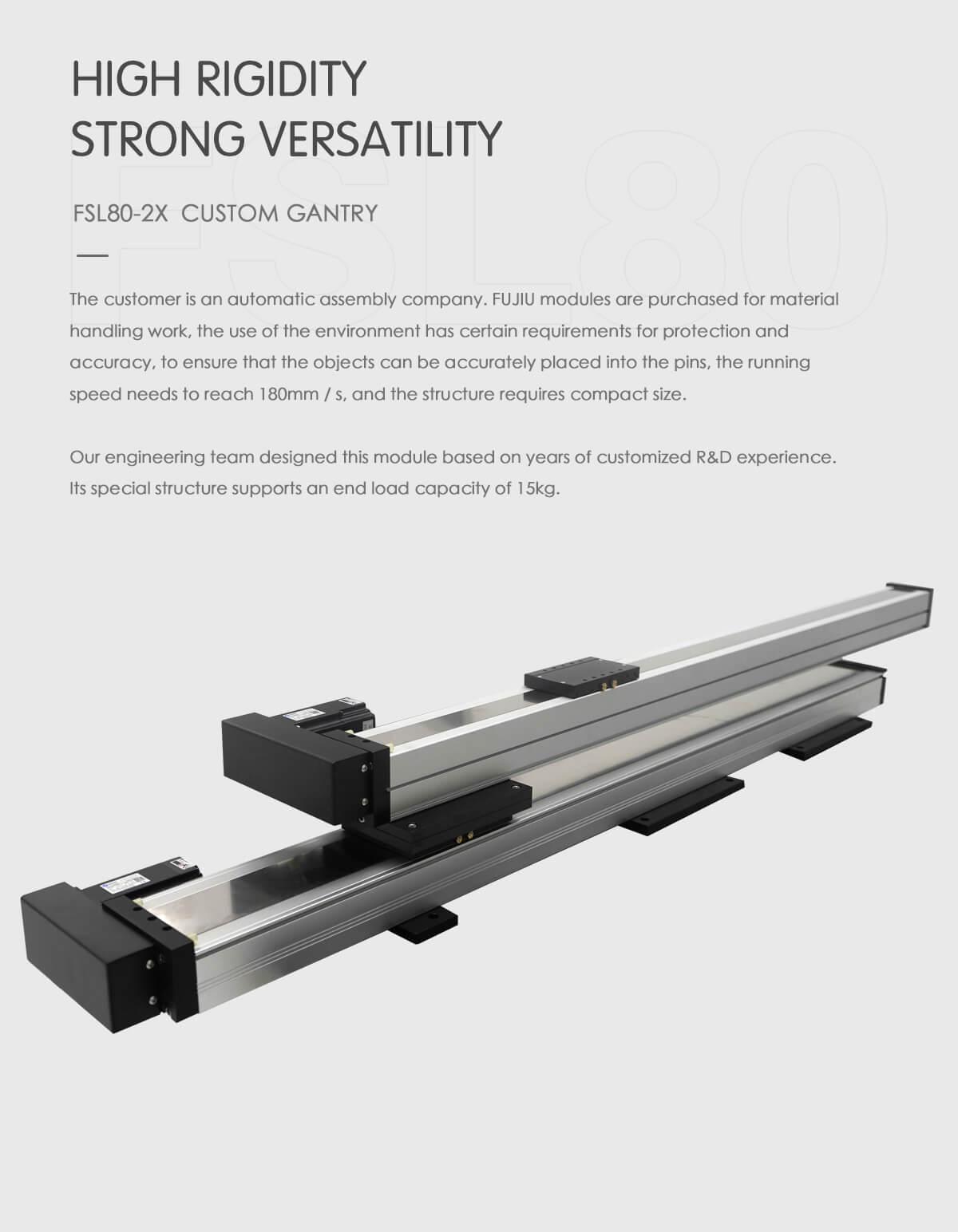

The customer is an automatic assembly company. FUYU modules are purchased for material handling work, the use of the environment has certain requirements for protection and accuracy, to ensure that the objects can be accurately placed into the pins, the running speed needs to reach 18omm/s, and the structure requires compact size. Our engineering team designed this module based on years of customized R&D experience. Its special structure supports an end load capacity of 15kg.

Previous: Industry Solution Linear Motion Clamping Jaw Electric Parallel Gripper

Next: Double Framework Belt Driven Guide Rail Linear Motion Table XYZ Stage Gantry Robot

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
