Laser Testing Ball Screw Actuator Multi-axis Table Linear Motion System XYZ Positioning Stage

Short Description:

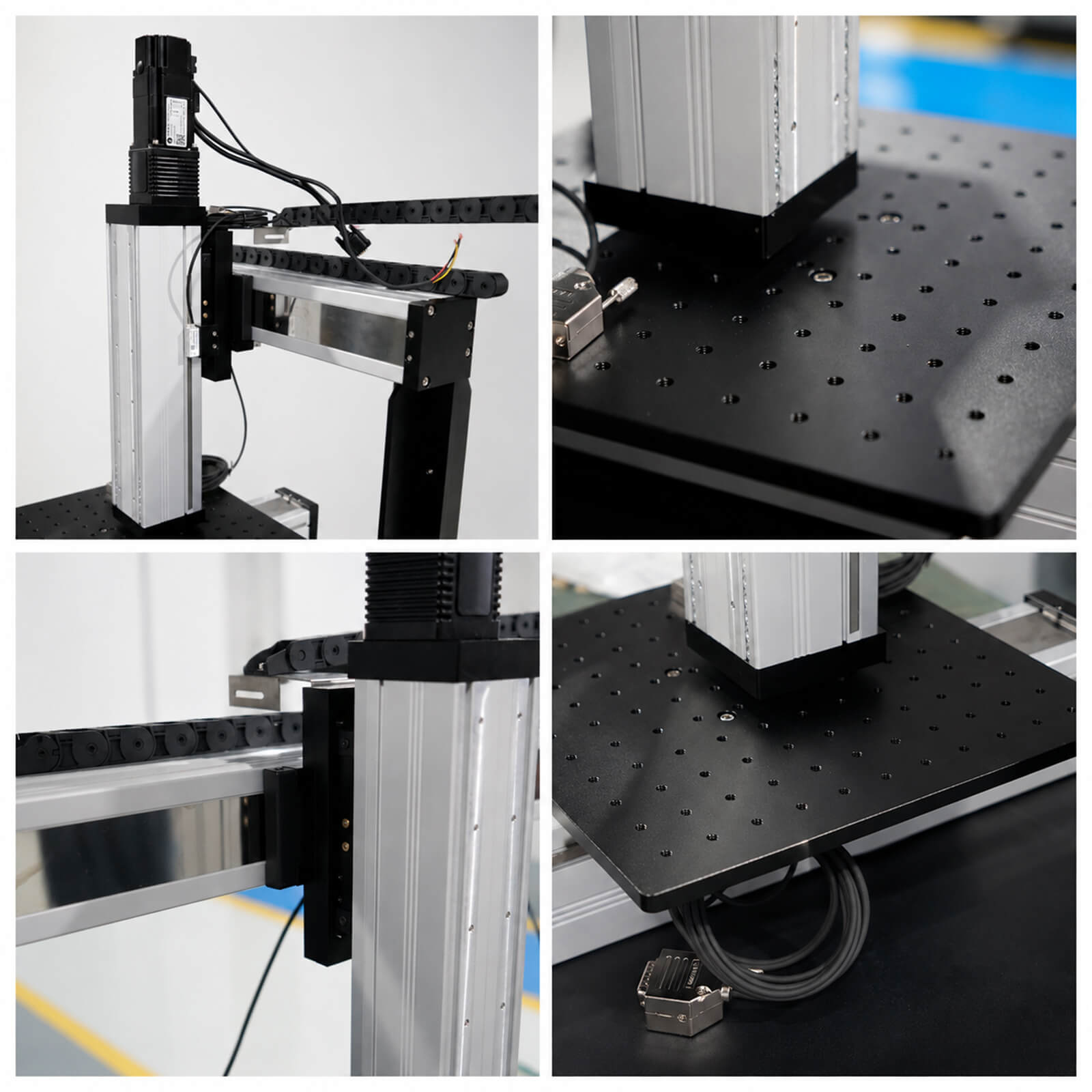

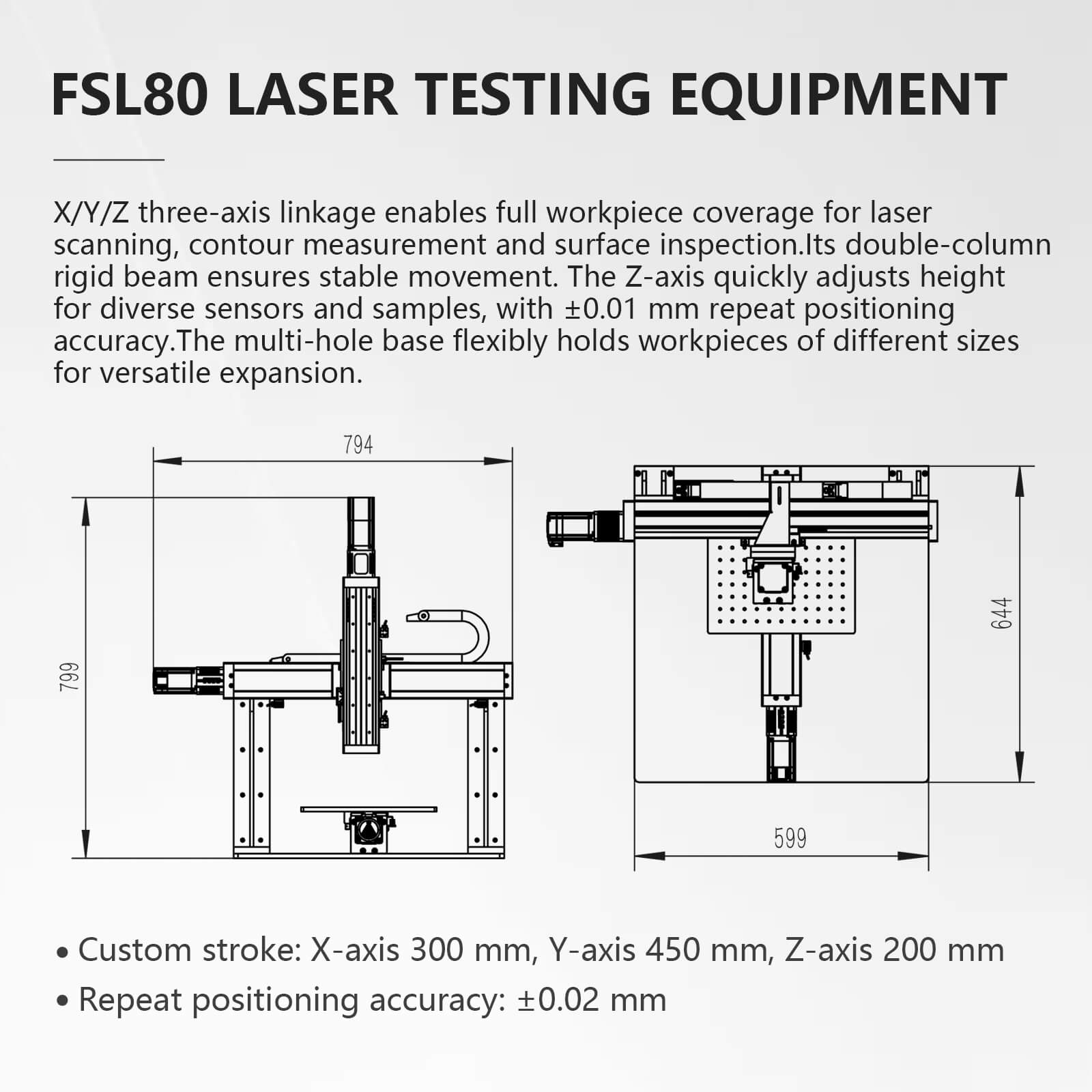

X/Y/Z three-axis linkage enables full workpiece coverage for laser scanning, contour measurement and surface inspection.lts double-column rigid beam ensures stable movement. The Z-axis quickly adjusts height for diverse sensors and samples, with ±0.01 mm repeat positioning accuracy.The multi-hole base flexibly holds workpieces of different sizes for versatile expansion.

FUYU Technology specializes in industry customization and we are a brand manufacturer of intelligent linear motion systems. Our products include Ball Screw Actuator, Belt Driven Module, XYZ Positioning Stage, Gantry System, Servo Cylinder, Linear Rail Guide, Electric Gripper and Multi-axis Motion Controller for Cartesian Robot. The engineer team has 8 invention patents, 47 utility model patents, 24 design patents, 18 software copyrights. The factory is awarded industry certifications such as ISO9001:2015, ROHS, CE, FCC and TUV. Since 2011 founded, we have served more than 30000 customers all over the world with linear motion system none-standard solutions covering 9 major fields, including 3C electronics, biological science, new energy, medical equipment, smart food, agriculture automation, automotive industry, visual inspection, education research and so on. The company owns wide variety of ready-to-Ship products, we also accept OEM orders and supply programming services. Based on thousands of successful industry solutions, advanced engineer development concepts and efficient assembly team for linear motion workbench, we sincerely invite the global partners to share new source, new price and new chance. “Your Idea, Our Motivation.” Let’s make it together!

Series: FSL80IS-LT

Stroke Range: 50mm-1050mm

Position Accuracy: 0.01mm

Max Speed: 200mm/s

Max Load: 70kg

Send email to us

Product Detail

Brand Overview

Previous: Packaging Sorting Conveyor 0.02mm Position Accuracy Electric Actuator Telescoping Rod IP65 Waterproof Ball Screw Linear Motion Servo Cylinder

Next: Pressing Automation Ball Screw Actuator Linear Motion Stage Gantry System Positioning Z Axis Table

CHENGDU FUYU TECHNOLOGY CO.LTD

FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
