    Ball Screw Actuator Linear Motion Heavy Load Rail Guide Vertical XYZ Stage Featured Image
    • Ball Screw Actuator Linear Motion Heavy Load Rail Guide Vertical XYZ Stage
    • Ball Screw Actuator Linear Motion Heavy Load Rail Guide Vertical XYZ Stage
    • Ball Screw Actuator Linear Motion Heavy Load Rail Guide Vertical XYZ Stage
    • Ball Screw Actuator Linear Motion Heavy Load Rail Guide Vertical XYZ Stage
    • Ball Screw Actuator Linear Motion Heavy Load Rail Guide Vertical XYZ Stage

    Ball Screw Actuator Linear Motion Heavy Load Rail Guide Vertical XYZ Stage

    Short Description:

    OEM or Custom Design, let’s discuss your project
    1. Which type of Linear Motion – Belt Driven or Ball Screw?
    2. How long stroke need: X=? Y=? Z=?
    3. How much is the Load Capacity and Speed Range?
    4. Do you need Motion Controller, Driver and Power Supplier?



    Ball Screw Module, Belt Driven Linear Guide, Positioning Stage, Motion Controller for Cartesian Robot. CE, FCC, RoHS, ISO9001 Certification.
    Wide Variety of Ready-to-Ship Products
    Quantity Discounts Starting at 10 pcs
    Custom OEM Solutions
    Programming Services


  • Series: FSL120IS-T
  • Stroke Range: 50mm-1500mm
  • Position Accuracy: 0.02mm
  • Max Speed: 500mm/s
  • Max Load: 100kg
  • Ball Screw: G1610/G2020

    • Product Detail

    Brand Overview

           Vertical-Linear-Motion_01 Vertical-Linear-Motion_02 Vertical-Linear-Motion_03 Vertical-Linear-Motion_04 Vertical-Linear-Motion_05 https://www.fuyumotion.com/high-speed-series/ https://www.fuyumotion.com/high-precision-series/ https://www.fuyumotion.com/heavy-duty-series/ https://www.fuyumotion.com/long-stroke-series/Vertical-Linear-Motion_06

    Linear Motion System

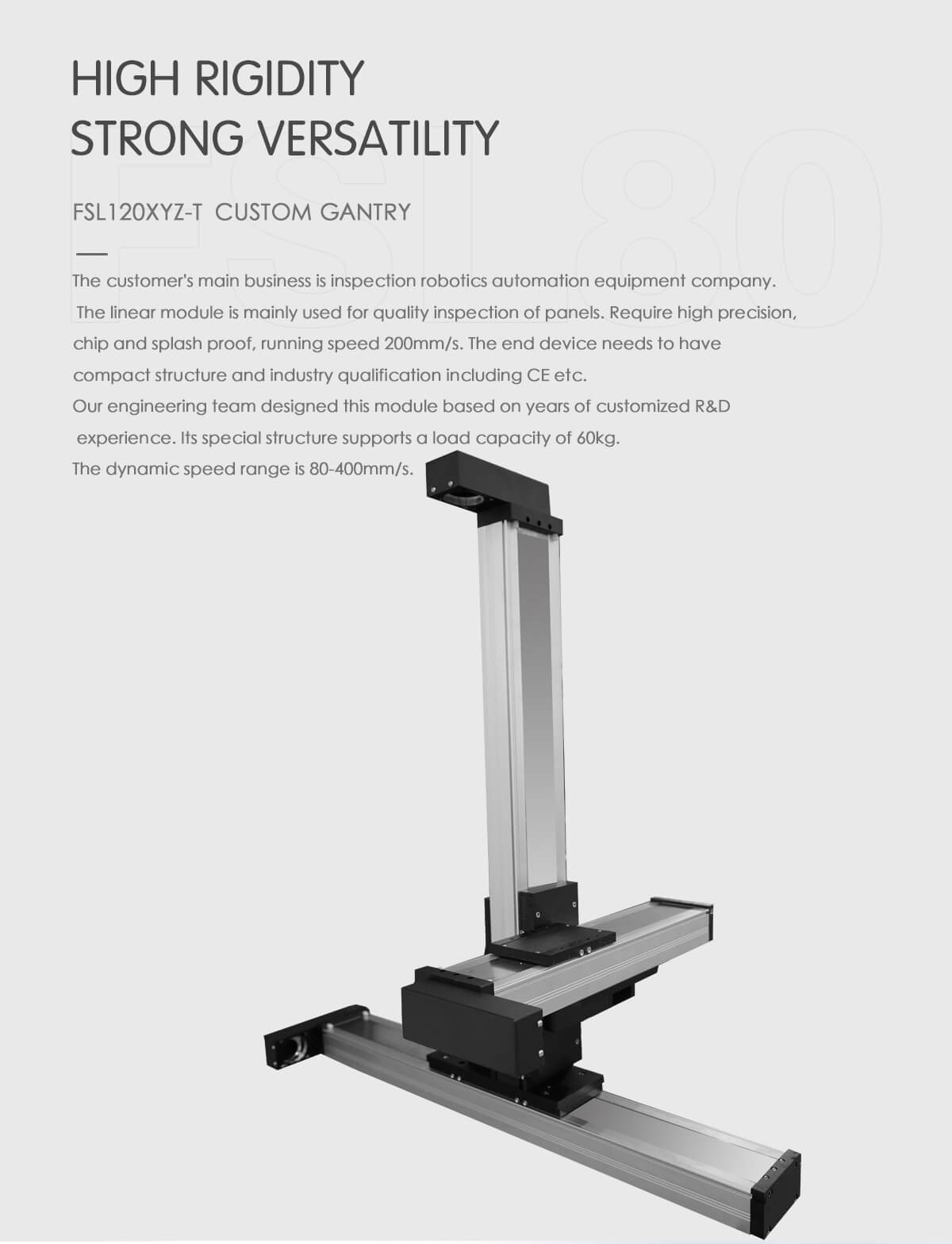

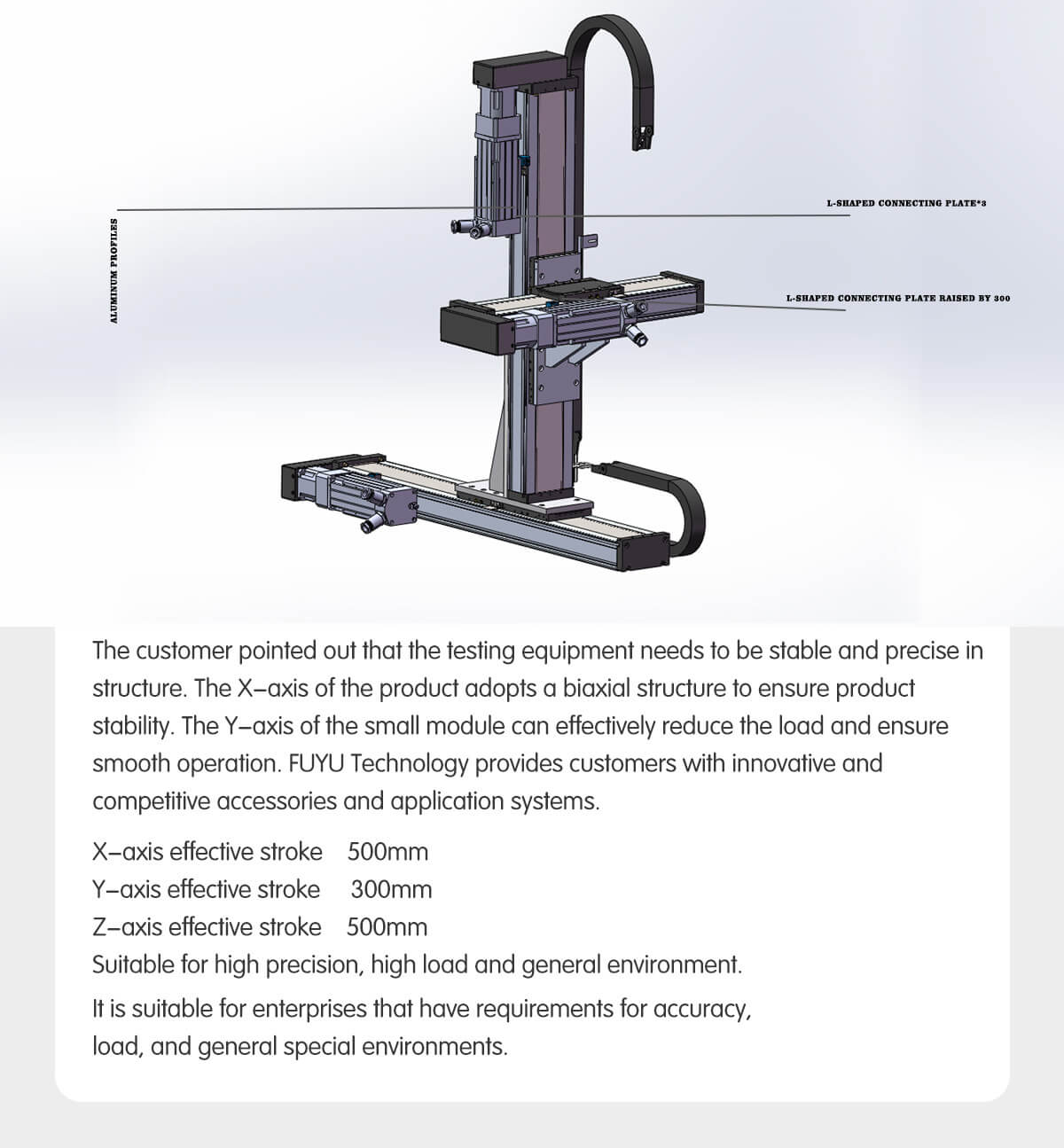

    The customer's main business is inspection robotics automation equipment company. The linear module is mainly used for quality inspection of panels. Require high precision, chip and splash proof, running speed 2oomm/s. The end device needs to have compact structure and industry qualification including CE etc. Our engineering team designed this module based on years of customized R&D experience. Its special structure supports a load capacity of 60kg. The dynamic speed range is 80-40omm/s.

  • Previous:
  • Next:

    • 品牌宣传页面_01 品牌宣传页面_02 品牌宣传页面_03 品牌宣传页面_04 品牌宣传页面_05 品牌宣传页面_06 品牌宣传页面_07

    CHENGDU FUYU TECHNOLOGY CO.LTD

    FUYU is a Linear Motion System Intelligent Products Manufacturer. Our main products include Ball Screw Linear Module, Belt Driven Linear Guide Rail,Electric Actuator, Positioning Stage and Motion Controller for Cartesian Robot.As a National High Tech Enterprise, 82 intellectual property rights have been authorized, involving 6 invention patents, utility models, appearance patents and 76 software copyrights. We are certificated by CE, FCC, RoHS, TUV and ISO9001.Multi-axis Positioning System can be composed of several modules, Stroke Range 50mm-12000mm, Position Accuracy 0.02mm-0.2mm and Load Capacity 3kg-180kg. They are widely used for Medical Equipment, Automation Products Line, Electronic Industry and etc.As an Industrial Factory, we also accept OEM. Once you provide the machine design, our engineers will contact in 48 hours to suggest the best solution for the linear motion system.
