Belt Driven Actuator Linear Motion Guide System Gantry Robot Multi-axis XYZ Stage

Short Description:

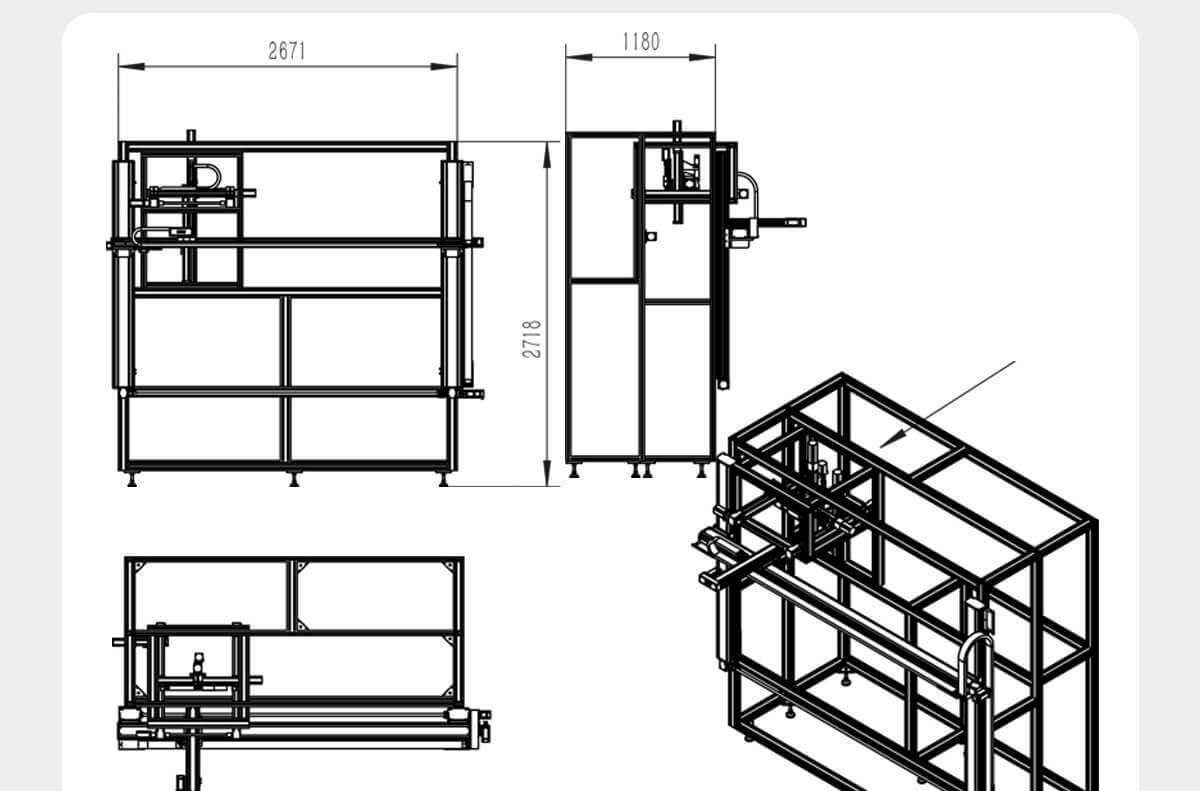

This customized linear motion system is mainly used for laser screening testing.

In order to meet the high-load application scenarios of testing standards,

the workbench needs to carry a laser screening equipment weighing 50kg and run at a speed of 2m/s.

For this purpose, our R&D team developed A linear motion module with a special structure.

Series: FTB17

Stroke Range: 100mm-3500mm

Belt Width: 30mm

Lead: 40mm

Repeat Position Accuracy: 0.05mm

Horizontal Load Capacity: 45kg

Speed Range: 2000mm/s

Noise: 58dB
