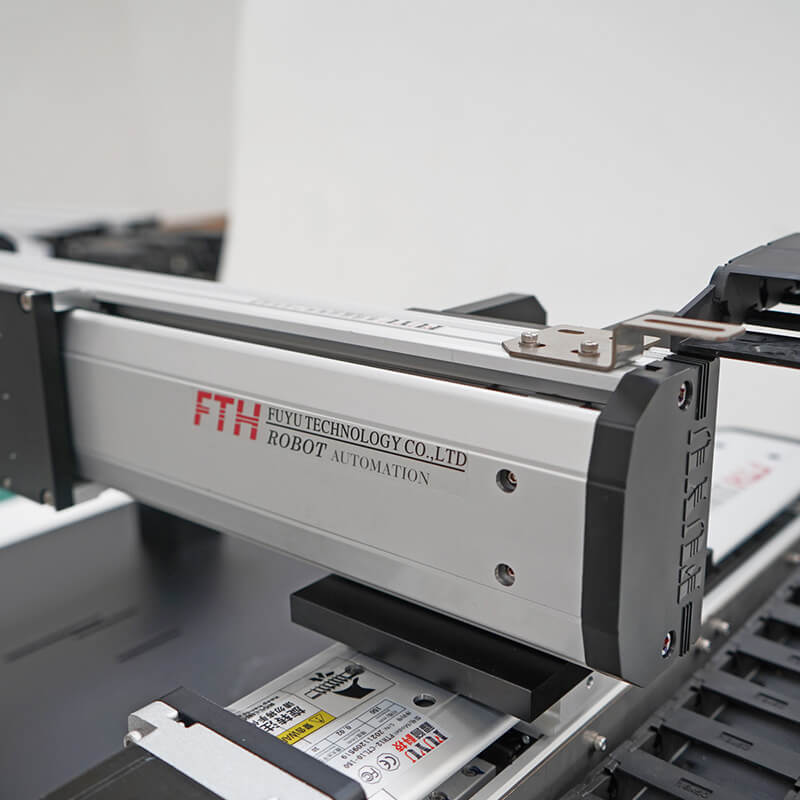

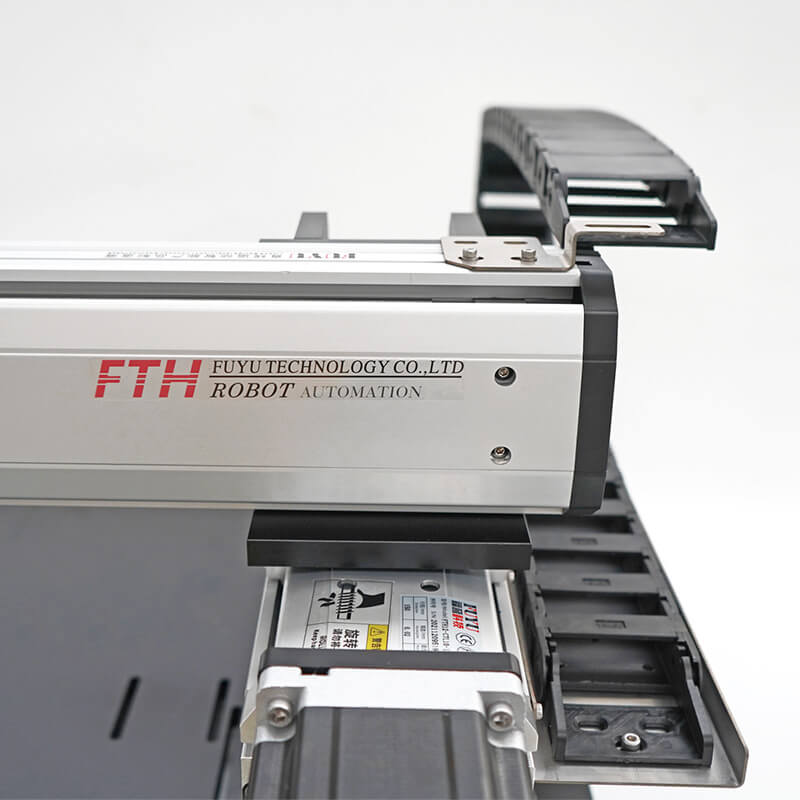

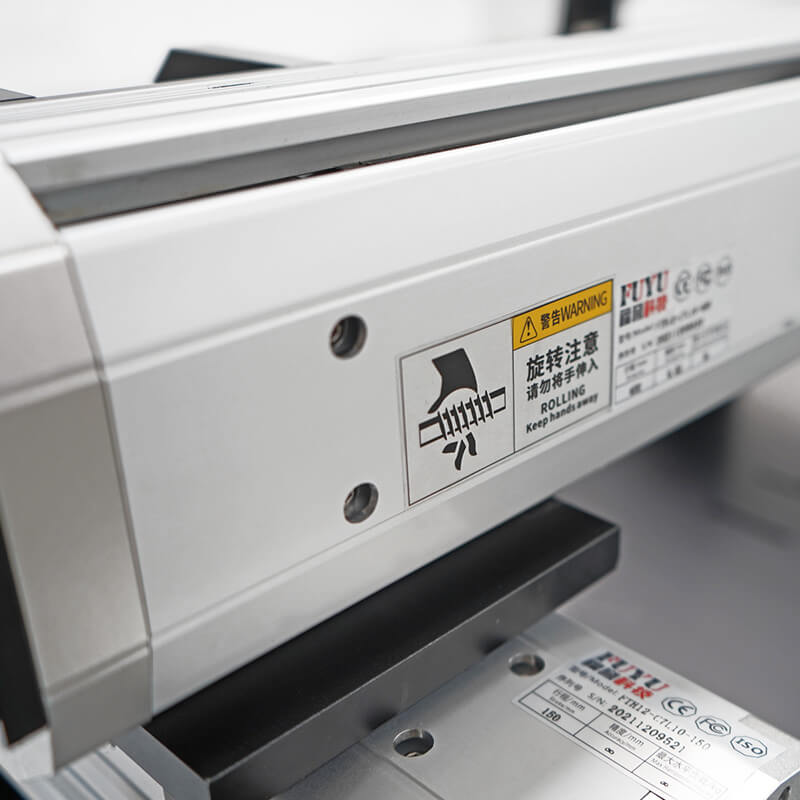

Double Track Actuator Linear Gantry System Heavy Duty Ball Screw Rail Guide

Short Description:

Product Parameters

Repeated Position Accuracy 0.02mm
Guide Model W12XH8 Double Track
Ball Screw / Belt Drive 16
Lead Type 5mm / 10mm / 20mm
Max Speed 250mm/s 500mm/s 1000mm/s
Horizontal Load Capacity 20kg / 30kg / 50kg
Vertical Load Capacity 5kg / 10kg / 15kg
Noise 70dB – 80dB
Accelerated Speed 500mm/s
Work Temperature -15℃ ~ +60℃

Feature Advantages
6063-T6 aluminum semi-enclosed design
Compression resistance is 1.5-2 times that of ordinary aluminum
Double track structure – the stability is improved by more than 50%, the force is more even, and the side-hanging performance is better. Internal and external maintenance of the induction slot
Concave groove design on the side, reserved screws, easy disassembly and assembly of various sensing devices; support for built-in sensing devices to ensure beautiful appearance.

Series: FTH12IS-H2

Stroke Range: 100mm-1050mm

Position Accuracy: 0.02mm

Max Speed: 1000mm/s

Horizontal Load Capacity: 50kg

Vertical Load Capacity: 15kg

Send email to us

Product Detail

Brand Overview

Brand Partners

CUSTOM WORKBENCH LINEAR MOTION SYSTEM
The client is a national key university, which is mainly used for mechanical equipment testing in scientific research laboratories. lt must achieve the condition of "lowest price and most stable structure" and is specially used for unstable working surfaces.
