Double Z Axis Linear Table Ball Screw Gantry System Vertical Rail Guide

Short Description:

Technical Feature

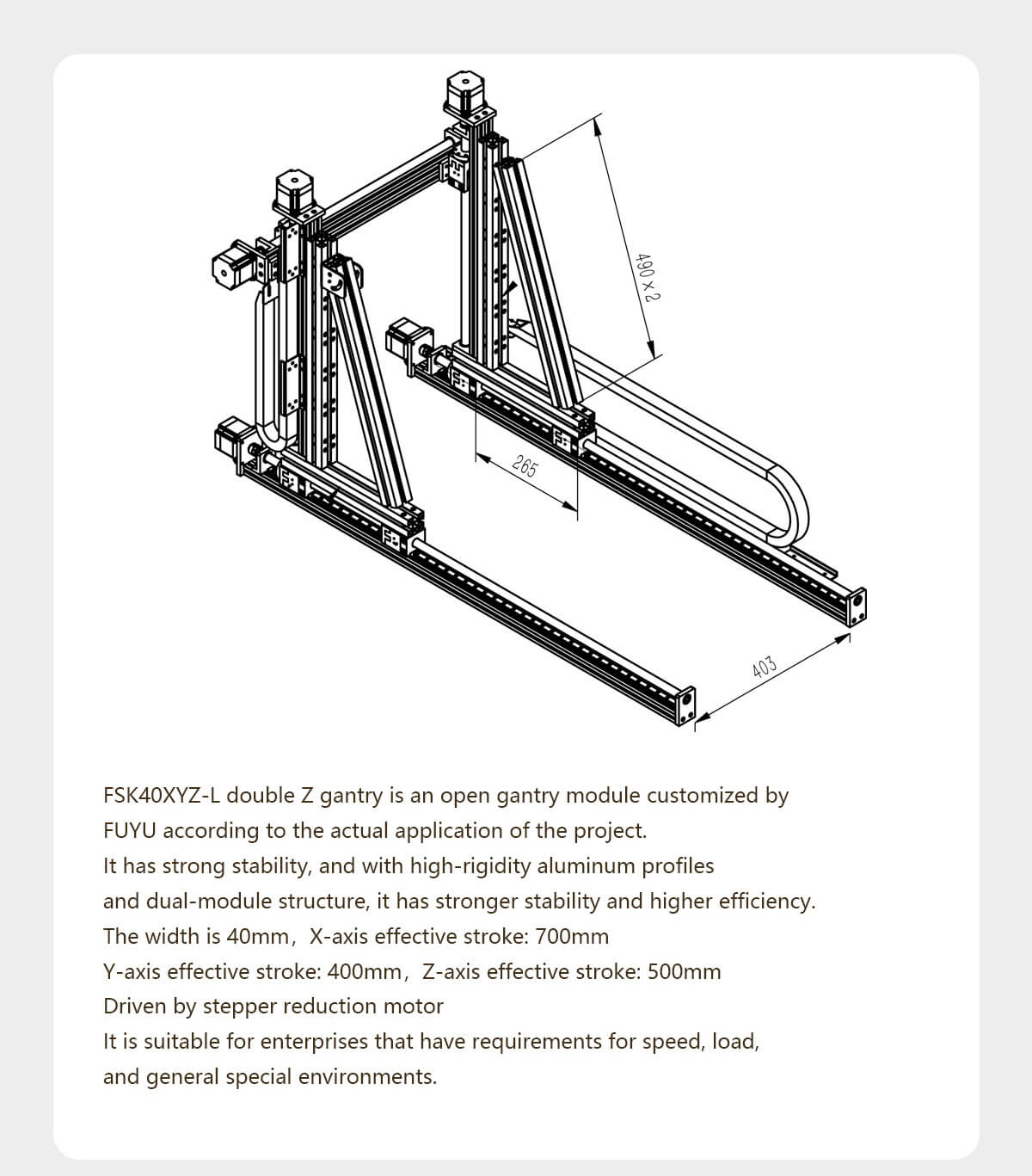

Double Z gantry is an open gantry module customized by FUYU according to the actual application of the project. It has strong stability, and with high-rigidity aluminum profiles and dual-module structure, it has stronger stability and higher efficiency. The width is 40mm，X-axis effective stroke: 700mm Y-axis effective stroke: 400mm, Z-axis effective stroke: 500mm Driven by stepper reduction motor. It is suitable for enterprises that have requirements for speed, load and general special environments.

Range of Application

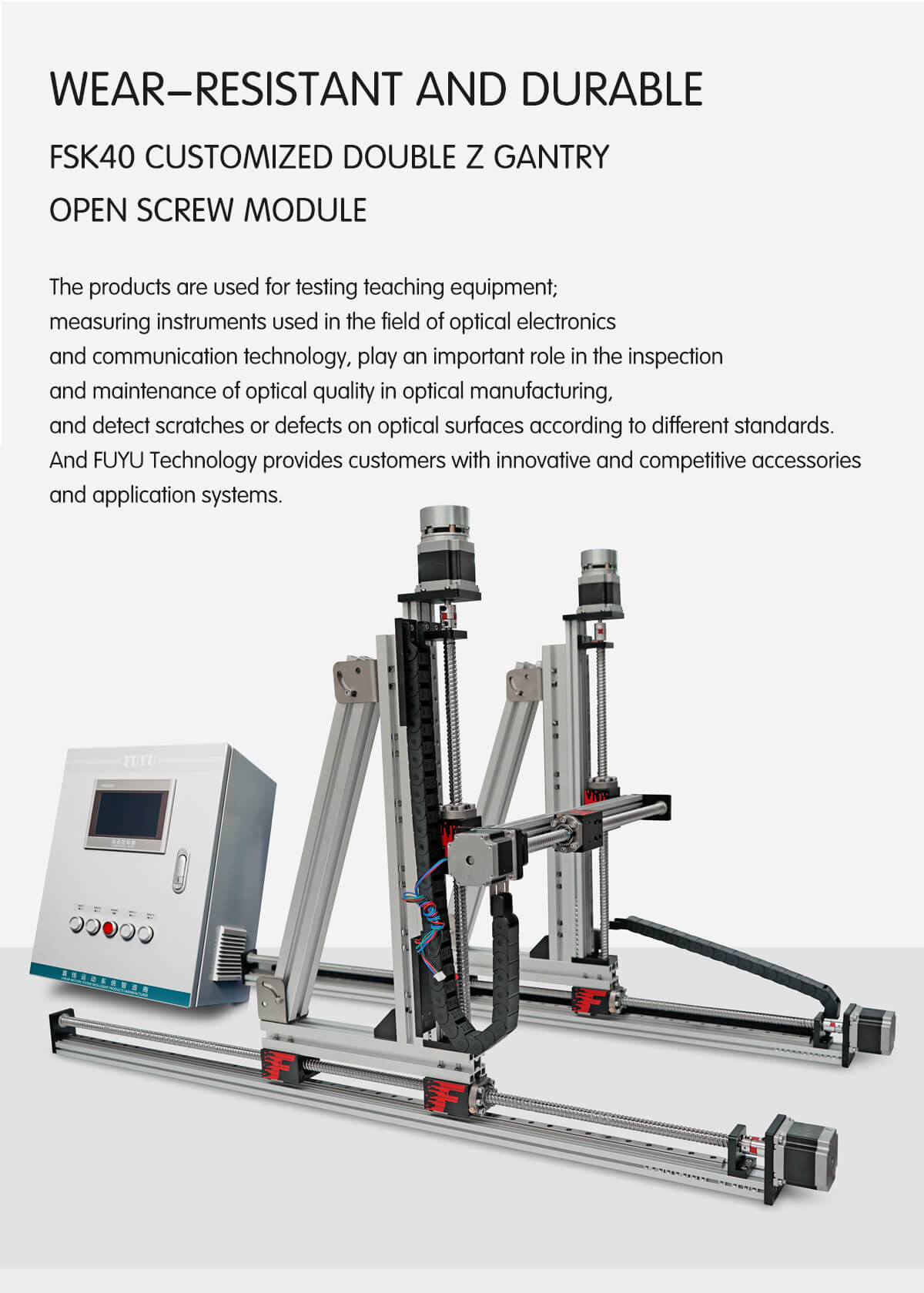

The products are used for testing teaching equipment; measuring instruments used in the field of optical electronics and communication technology, play an important role in the inspection and maintenance of optical quality in optical manufacturing and detect scratches or defects on optical surfaces according to different standards. FUYU Technology provides customers with innovative and competitive accessories and application systems.

Series: FSK40IS-DZ

Stroke Range: 50mm-1000mm

Position Accuracy: 0.03mm

Max Speed: 255mm/s

Max Load: 25kg

Ball Screw: G1204/G1605/G1610
