FUYU Double Track 3 Axis Ball Screw Linear Positioning System XYZ Stage

Short Description:

MULTI-AXIS T-TYPE LINEAR MODULE

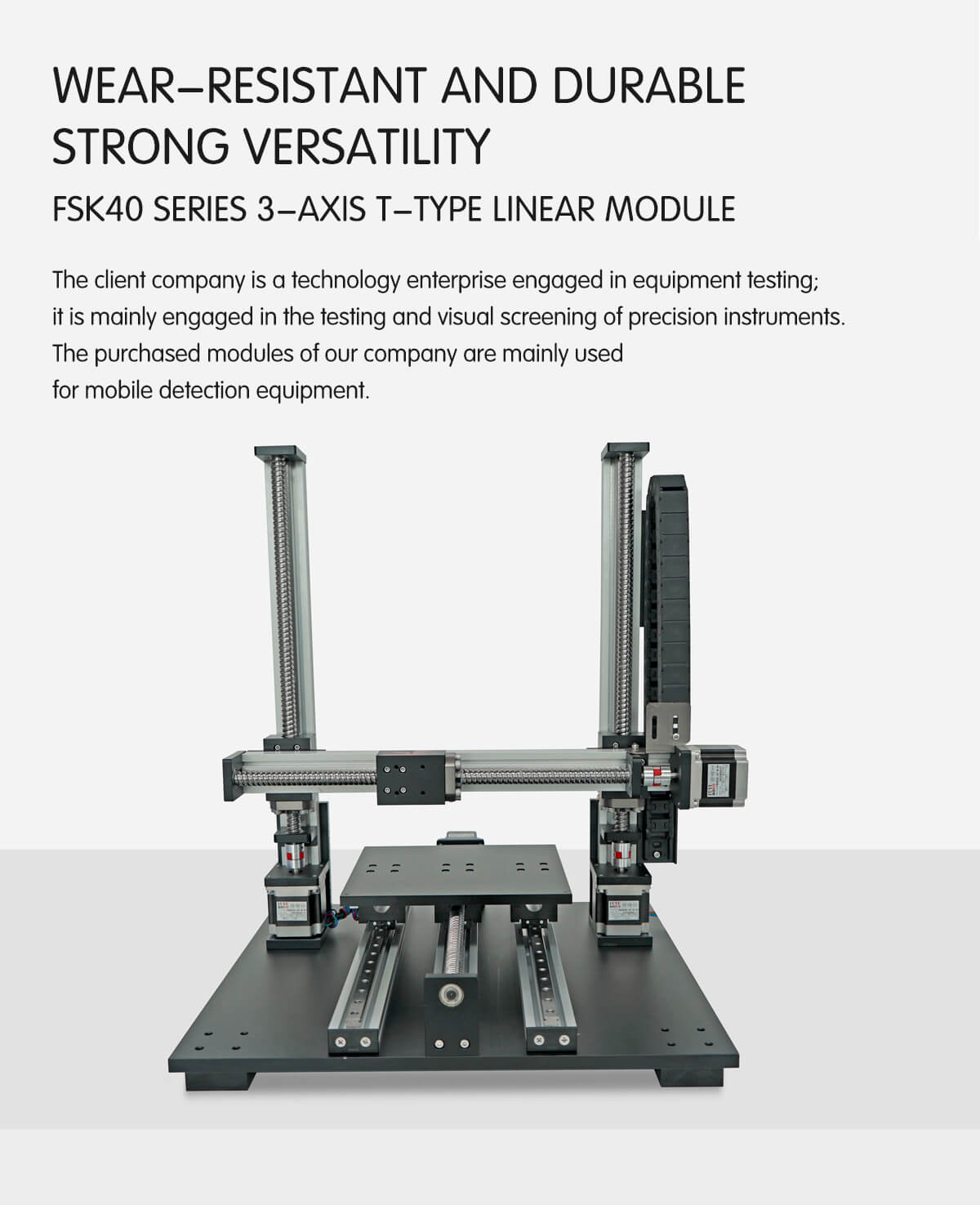

The client company is a technology enterprise engaged in equipment testing;it is mainly engaged in the testing and visual screening of precision instruments. The purchased modules of our company are mainly used for mobile detection equipment.

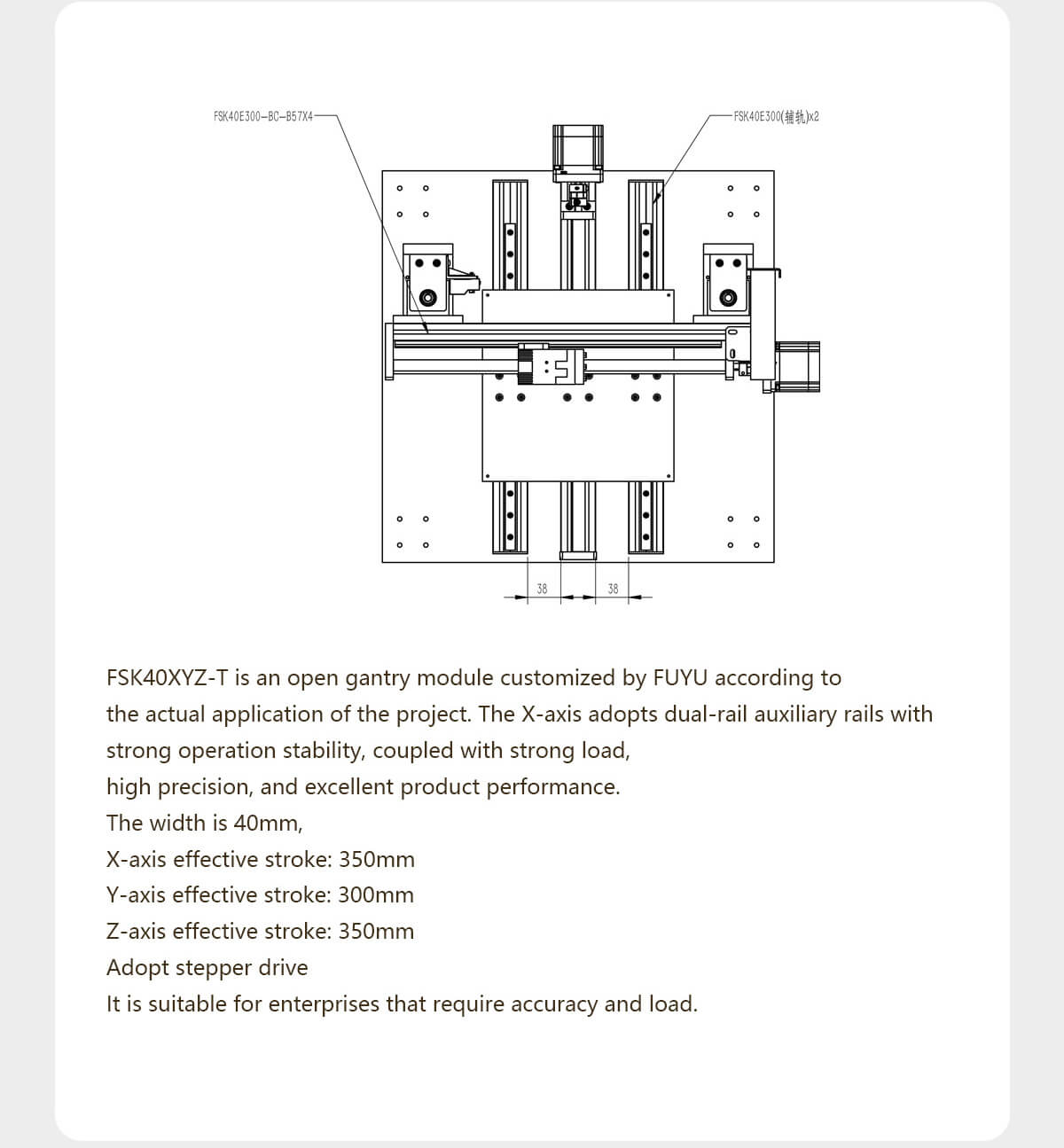

It is an open gantry module customized by FUYU according to the actual application of the project. The X-axis adopts dual-rail auxiliary rails withstrong operation stability, coupled with strong load, high precision, and excellent product performance.The width is 40mm, X-axis effective stroke: 350mmY-axis effective stroke: 300mmz-axis effective stroke: 350mmAdopt stepper drive lt is suitable for enterprises that require accuracy and load.

Stroke Range: 50mm-1000mm

Position Accuracy: 0.03mm

Max Speed: 255mm/s

Max Load: 25kg

Ball Screw: G1204/G1605/G1610

Send email to us

Product Detail

Company Profile

FSK40非标详情页英文_01 FSK40非标详情页英文_02 FSK40非标详情页英文_03 120非标详情页英文_04
