Mute Design Compact Structure Ball Screw Motorized Linear Guide Support Flip Load

Short Description:

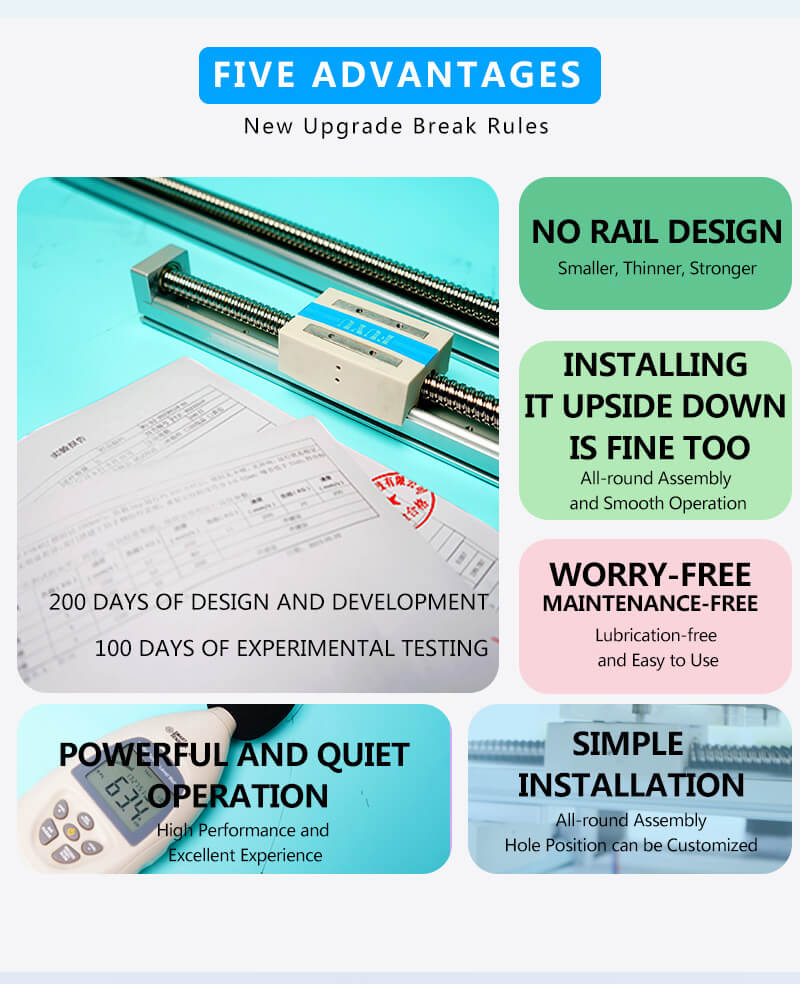

Technical Feature

Original Non-rail Design. Smaller, Thinner, Stronger. Installing it Upside Down is Fine too. All-round Assembly and Smooth Operation. Worry-free, Maintenance-free. Lubrication-free and Easy to Use. Hole Position can be Customized. The sliding seat and base are upgraded with M5 screw holes for higher locking strength.

Range of Application

The highest position of the body is 47mm. Perfect for tight space applications. Assembling it upside down is fine too. Support flip load 10KG. Meet the needs of special application scenarios.

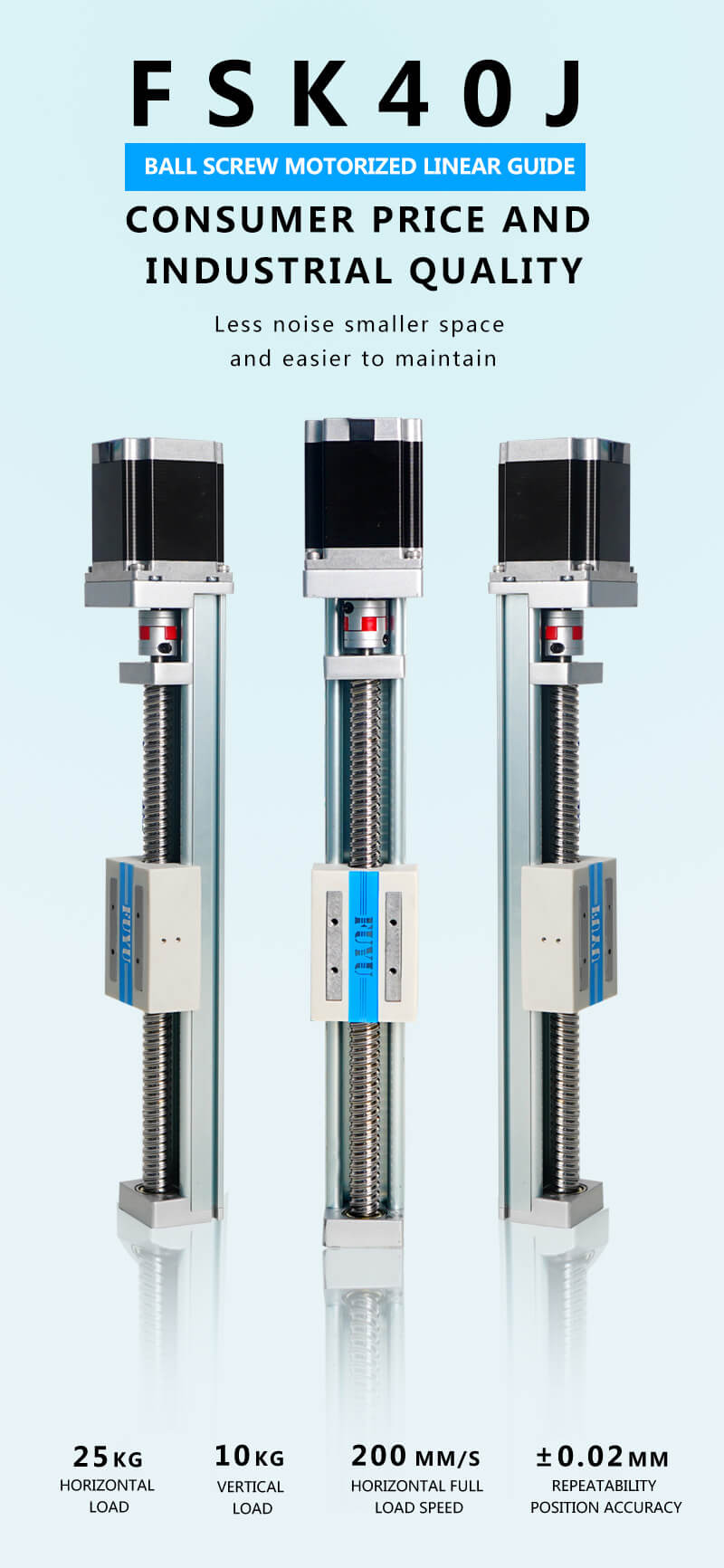

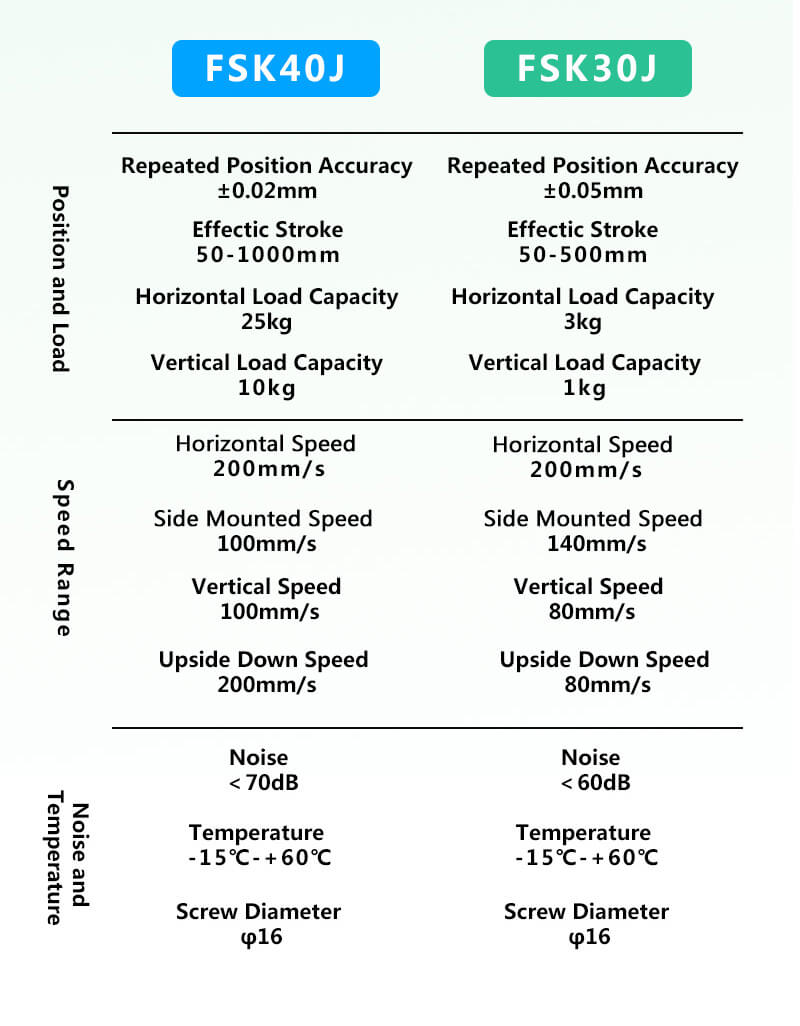

Series: FSK40J

Type: Ball Screw

Stroke Range: 1000mm

Position Accuracy: 0.02mm

Max Speed: 200mm/s

Max Load: 25kg

Send email to us Download To PDF

Product Detail

Brand Overview

FUYU_Brand

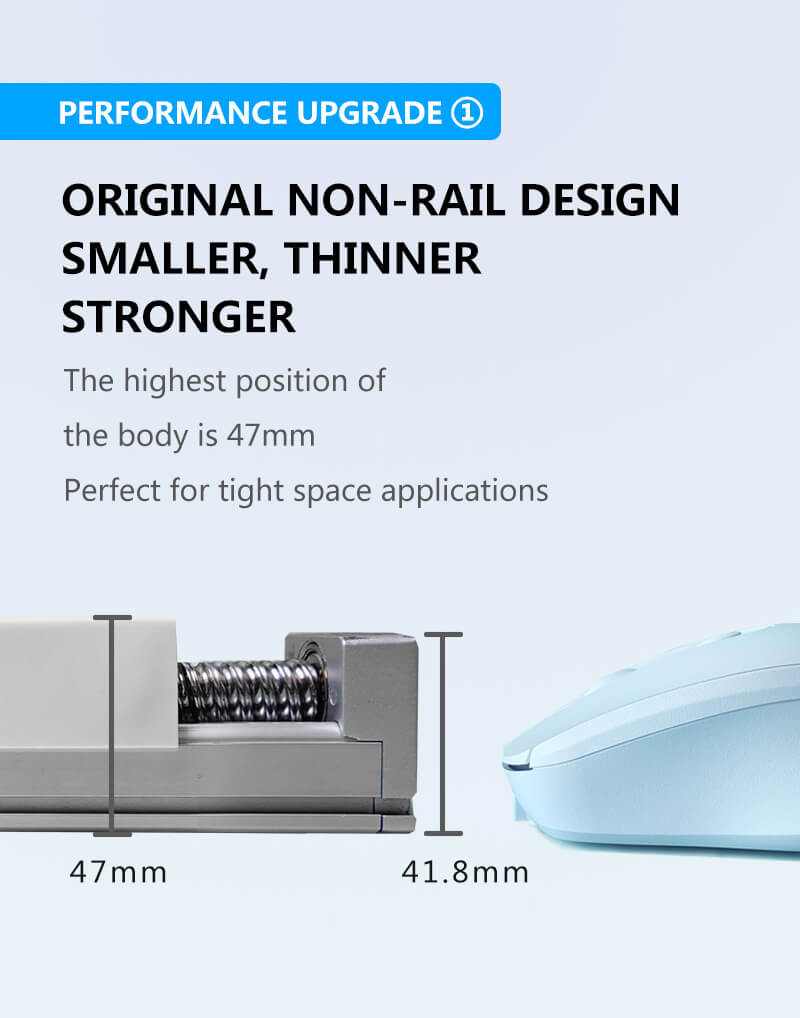

ORIGINAL NON-RAIL DESIGN, SMALLER,THINNER, STRONGER
The highest position of the body is 47mm, Perfect for tight space applications

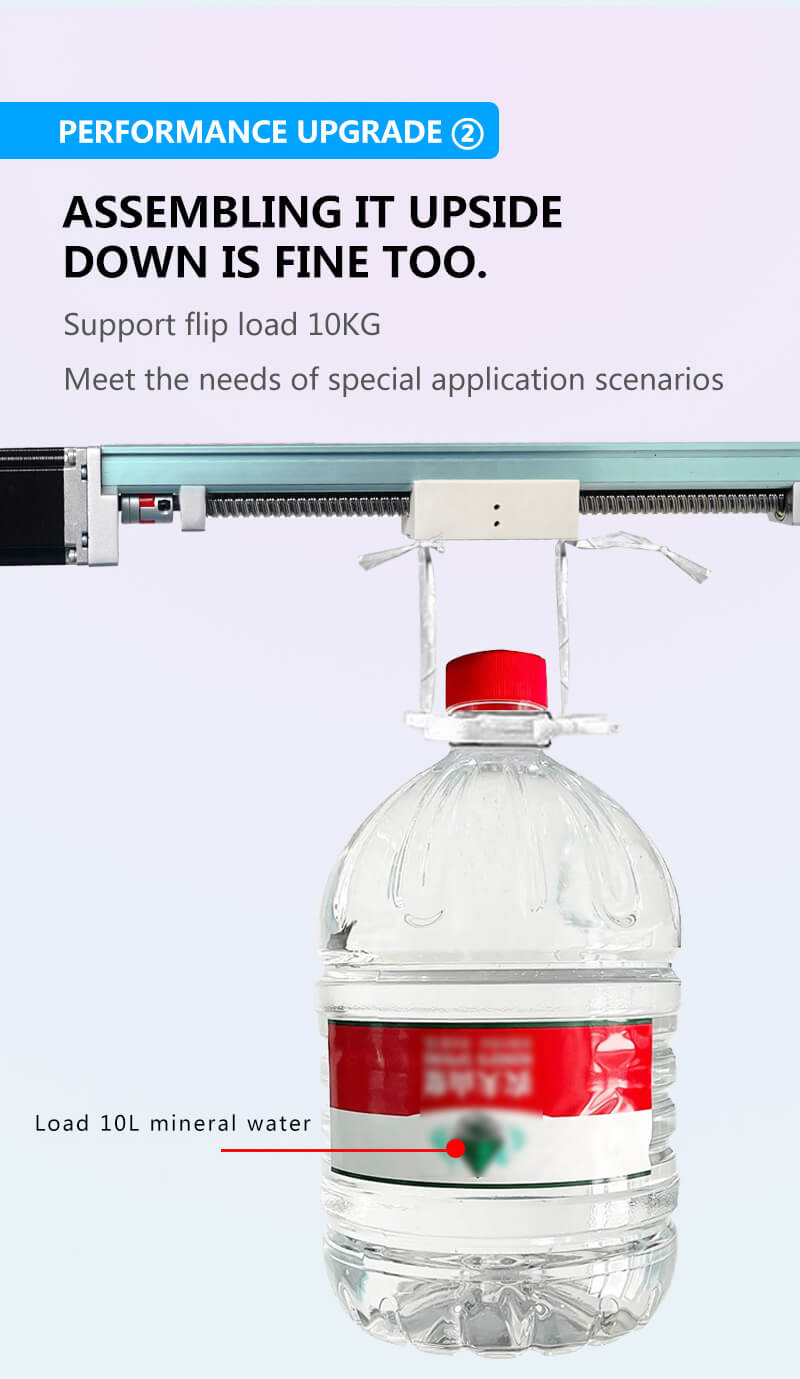

ASSEMBLING IT UPSIDE DOWN IS FINE TOO. Support flip load 10KG, Meet the needs of special application scenarios.

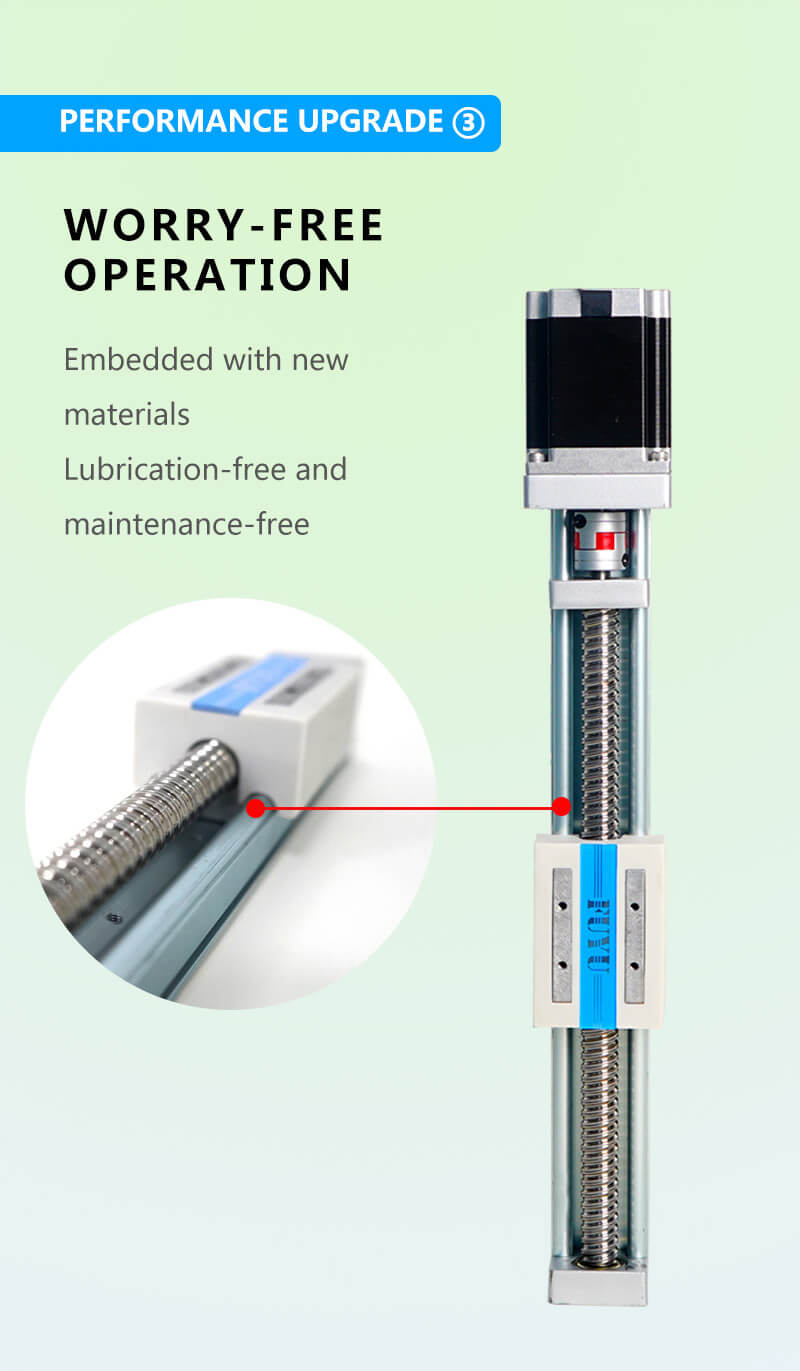

WORRY-FREE OPERATION. Embedded with new materials, Lubrication-free and maintenance-free

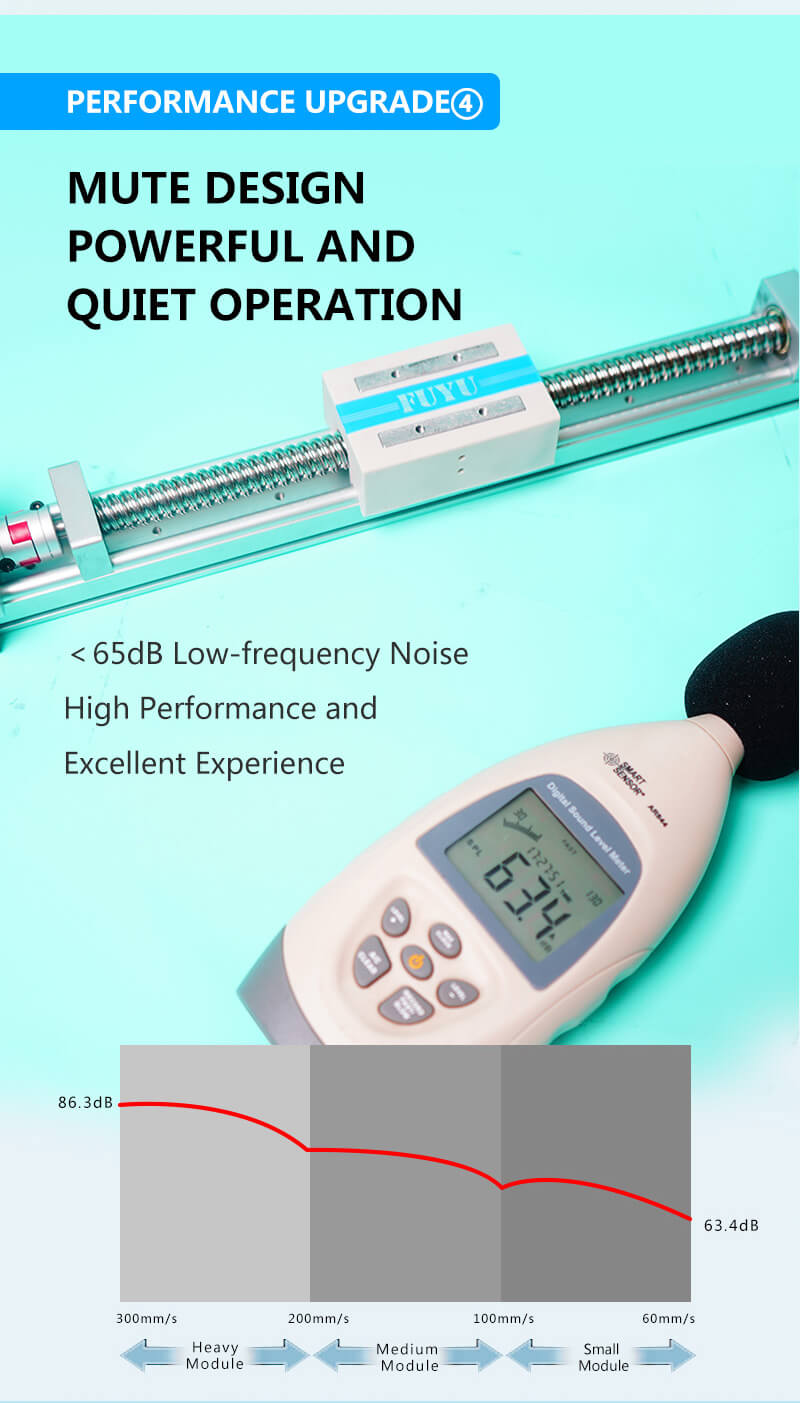

MUTE DESIGN <65dB Low-frequency Noise
High Performance and Excellent Experience, MAKE INSTALLATION EASIER

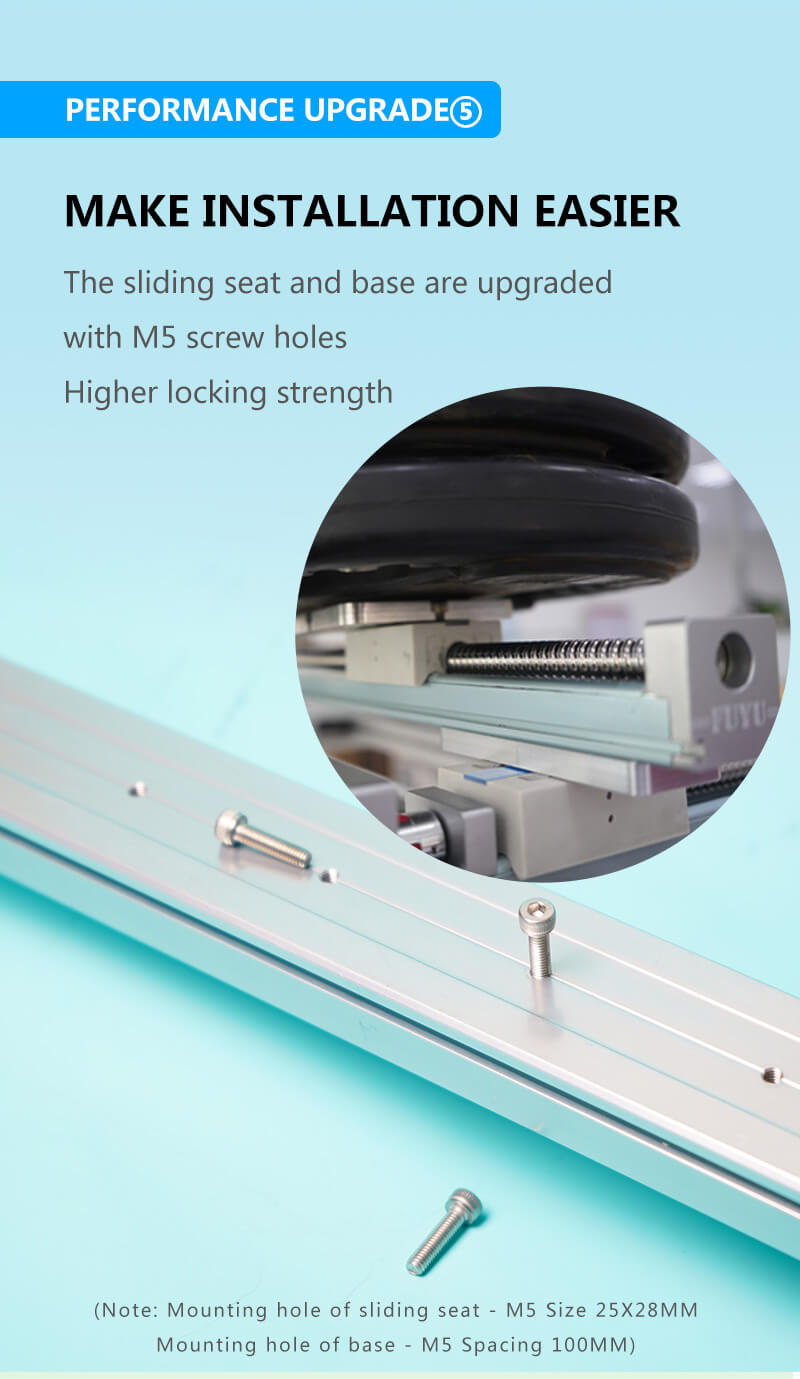

The sliding seat and base are upgraded with M5 screw holes, Higher locking strength.
